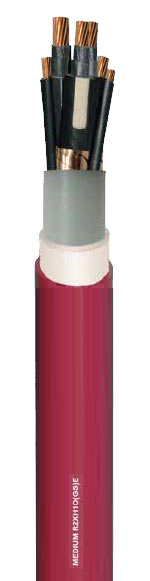

Medium R2XH1O(GS)E Mining Cable

Medium R2XH1O(GS)E  Mining Cable

Cable Features

  • Acc. to IEC 60502-2
  • Excellent mechanical protection compared with steel
  • Reduced weight
  • Installation, storage and transport costs reduced

Cable Construction

Conductor: Stranded red copper conductor Cl. 2,
acc to IEC 60228, DIN VDE 0295
Conductor screen: Semi-conducting compound
Insulation: XLPE compound
Core screen: Semi-conducting compound
Screen: Metalling screen of red copper tapes helically
Earth Conductor: Stranded red copper conductor Cl. 2,
acc to IEC 60228, DIN VDE 0295 r
Earth Conductor screen: Semi-conducting compound
Cores color: POWER: natural color with
black semi-contuctive compound
EARTH: black semi-conductive compound
Phase cores arrangements: phase cores shall be laid-up together with the
three-earth cores in the interstices between of
the phase cores
Wrapping: Binders tapes, covered with filling compound
Outer sheath: Red, PE compound

Cable Specifications

Nominal voltage: Uo/U 8.7/15 (17.5) kV
Uo/U 12/20 (24) kV
Test voltage: Uo/U 8,7/15 (17,5) kv = 24 kV
Uo/U 12/20 (24) kv = 29 KV
Temperature range: 0°C + 90°C
Max. temperature
on conductor:
+ 90°C
Fire performances: fire retardant and no-flame propagation
acc. to IEC 60332-1

Ordering Information

No. of cores x cross-section
n x mm2
Outer-Ø ca. mm
± 10%
Copper weight
kg/km
Cable weight approx.
kg/km
Tensile strength
N
AWG
no.*)
8.7/15 kV
3×35+3×6 49.7 1184 2979 2
12/20 kV
3×35+3×6 54 1198 3338 2
