NSSHÖU 3E/3E+ST/KON Mining Cable

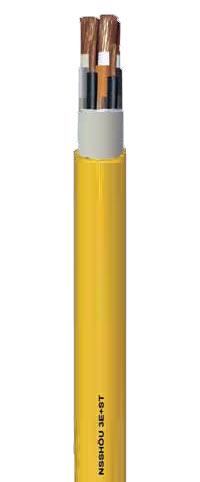

NSSHÖU 3E/3E+ST/KON Mining CableA Rubber-sheathed flexible cable with copper core screen

Cable Features

  • Ozone resistance
  • high insulation resistance
  • resistant against hot penetration
  • low abrasion
  • high notch resistance
  • resistant against toils fat and chemicals
  • MSHA, GOST-R and WUG approvals on request
  • for SPEEDS and MINIMUM BENDING RADIUS

Cable Construction

Conductor: Flexible red copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Insulation: rubber EPR type 3G13
Colour cores: acc. to DIN VDE 0293-308, HD 308 S2
3 phase cores: brown-black-gray
Screen
  POWER 3E: braid earth-conductor over the insulation
  KON: concentric between the inner and outer sheath
Inner sheath: EPR compound GM1B
Outer sheath: yellow, PCP compound 5GM5



Technical Details

Temperature range
Fixed installation: – 40°C + 80°C
Flexible installation: – 25°C + 80°C
Nominal voltage: Uo/U 0,6/1 kV
Test voltage: 3000 V
Operating voltage: A.C. Uo/U = 0,7/1,2 kVD.C. Uo/U = 0,9/1,8 kV
Insulation resistance: > 20 MOhm x km
Tensile strength: 15 N/mm2
Min. bending radius:
  fixed: 4 x d
  flexing: 10 x d
  free movement: 15 x d
Fire resistant: DIN VDE 0482, EN/IEC 60332-1-2
Oil resistant: DIN VDE 0473, part 811-2-1, par. 10,EN 60811-2-1, IEC EN 60811-1-2



Ordering Information

No. of cores
x cross-section
n x mm2
Outer-Ø
ca. mm.
± 10%
Copper weight
kg/km
Cable weight
approx.
kg/km
Tensile
strength
N
AWG
no.*)

NSSHÖU…/3E

3×1.5+3×1.5/3E 13 290 68 16
3×2.5+3×2.5/3E 15 335 113 14
3×4+3×4/3E 17.5 500 180 12
3×6+3×6/3E 19 600 270 10
3×10+3×10/3E 23 885 450 8
3×16+3×16/3E 27 1240 720 6
3×25+3×16/3E 31 1720 1125 4
3×35+3×16/3E 35 2240 1575 2
3×50+3×25/3E 40.5 2016 3160 2250 1
3×70+3×35/3E 45 3960 3150 2/0
3×95+3×50/3E 51 5070 4275 3/0
3×120+3×70/3E 57 6460 5400 4/0
3×150+3×70/3E 63 7590 6750 250 MCM
3×185+3×95/3E 67.5 9330 8325 350 MCM

NSSHÖU…/3E+ST

3×2.5+3×2.5/3E+3×1.5ST 18.5 520 113 14
3×4+3×4/3E+3×1.5ST 19.5 600 180 12
3×6+3×6/3E+3×1.5ST 20 670 270 10
3×10+3×10/3E+3×2.5ST 23.5 1010 450 8
3×16+3×16/3E+3×2.5ST 27 1290 720 6
3×25+3×16/3E+3×2.5ST 31 1780 1125 4
3×35+3×16/3E+3×2.5ST 35 2300 1575 2
3×50+3×25/3E+3×2.5ST 40.5 3200 2250 1
3×70+3×35/3E+3×2.5ST 45 4010 3150 2/0
3×95+3×50/3E+3×2.5ST 51 5100 4275 3/0
3×120+3×70/3E+3×2.5ST 57 6510 5400 4/0
3×150+3×70/3E+3×2.5ST 63 7600 6750 250 MCM
3×185+3×95/3E+3×2.5ST 67.5 9400 8325 350 MCM

 NSSHÖU…/KON

3×1.5/1.5KON 12.7 275 68 16
3×2.5/2.5KON 14.3 335 113 14
4×6/6KON 20 657 360 10
4×10/10KON 24.5 1050 600 8
5×2.5/2.5KON 18 490 188 14
5×4/4KON 20 640 300 12
5×6/6KON 22.5 845 450 10
