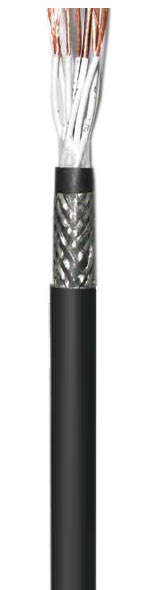

Signal 2YSLGCGÖU Mining Cable

SIGNAL 2YSLGCGÖU Mining Cable

Cable Features

  • Acc. to DIN VDE 0250 part 812
  • Data cables suitable for conveyor belts
  • Also potential bus use

Cable Construction

Conductor: Flexible red copper conductor Cl. 5,
acc. to IEC 60228, DIN VDE 0295
Insulation: PE special compound
Cores colour: white with consecutive numbers
Stranding: pairs in layers
Inner sheath: special EM2 compound
acc. to DIN VDE 0207, part 21
Screen: tinned copper braiding
Outer sheath: black (RAL 9005), special EM2 compound
acc. to DIN VDE 0207, part 21

Cable Specification

Temperature range
Fixed installation: – 40°C + 60°C
Flexible installation: – 25°C + 60°C
Temperature at conductor:
In service: + 60°C
In short circuit: + 150°C
Nominal voltage: Uo/U 250 V
Test voltage: 1500 V
Operating voltage: A.C. Uo/U = 350 VD.C. Uo/U = 350 V
Tensile strength: 15 N/mm2
Torsional stress: +/- 25°/m
Oil resistance: DIN VDE 0473,
part 811-2-1, par. 10, IEC/EN 60811-2-1
Fire resistance: VDE 0482, part 332-1-2, IEC/EN 60332-1-2
Weather resistance: outdoor use, resistant to ozone, moisture and water
Approvals: GOST-R, WUG and others on request

Ordering Information

No. of cores * cross section
n * mm2
Outer-Ø ca. mm
± 10%
Copper weight kg/km Cable weight approx.
kg/km
Tensile strength
N
AWG
no.*)
2x2x1 12 245 60 18
5x2x1 17.3 420 150 18
10x2x1 21.5 660 300 18
20x2x1 26.6 1030 600 18
