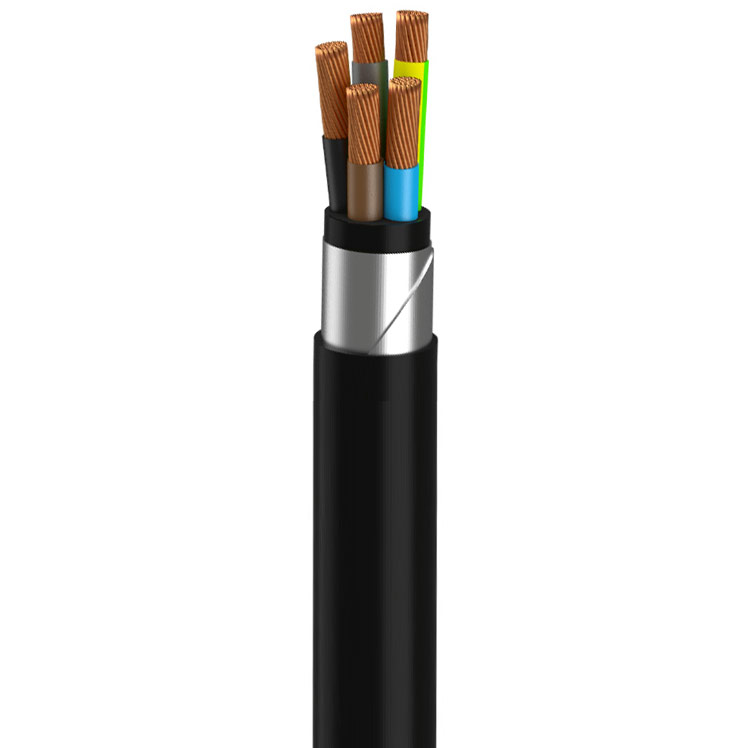

An armoured low voltage power cable with XLPE insulation and PVC outer sheath. They are ideal for either fixed or direct buried installation or on cable trays or ducts where mechanical protection is necessary (bursting risk).
| Stranding: | Cores stranded with filler |
| Marking: | U-1000 RVFV NF-USE N° Usine S.Y+ n (x ou G) s mm² |
| |
n = number of cores |
| |
s = section in mm² |
| |
G = with Green-Yellow |
| |
x = without Green-Yellow |
| Standards: | National XP C 32-322 |
| Cable Conductor: | Bare copper |
| Cable Insulation: | XLPE (chemical) |
| Inner Sheath: | PVC watertight sheath |
| Armour type: | Two steel tapes |
| Outer sheath: | PVC |
| Lead Free: | Yes |
| Rated Voltage Uo/U (Um): | 0.6/1 kV |
| Mechanical Impact Resistance: | Excellent |
| Flexibility: | Rigid |
| Flame retardant: | C2, NF C 32-070 |
| Chemical resistance: | Accidental |
| Weather resistance: | Very good |
| Waterproof: | Intermittent |
| Max. conductor temperature in service: | 90°C |
| Operating temperature range | -10 to 60 °C |
| Short-circuit max. conductor temperature | 250 °C |
Core Identification
| No. of Cores | HD 308 S2 | |
| G (earth core) | x (without earth core) | |
| 1 | |
Black (preferential) |
| 2 | |
Blue + Brown |
| 3* | Green / Yellow + Blue + Brown | Brown + Black + Grey |
| 3** | |
Blue + Brown + Black |
| 4 | Green / Yellow + Brown + Black + Grey | Blue + Brown + Black + Grey |
| 5 | Green / Yellow + Blue + Brown + Black + Grey | Blue + Brown + Black + Grey + Black |
