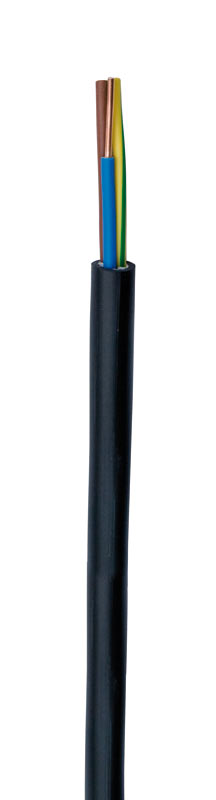

Cable Application
NYY is used as a power cable for energy supply in static installations, indoors, outdoors, underground, in concrete and in water where mechanical damages are not to be expected. The use of NYY cables is in accordance with VDE 0298 part 1. The current capacity is according to HD 603 S.1 and VDE 0276 part 1000. The product conforms to EEC directive 73/23 (Low Voltage Directive). CE.
Technical Information
| Conductor: | Plain copper to IEC 60228 class 1 or 2 | |
| Insulation: | PVC | |
| Bedding: | PVC | |
| Sheath: | PVC sheath, black | |
| Cores: | Colour coded to VDE0293 | |
| Voltage Rating: | 0.6/1kV | |
| Bending Radius for Single Core: | Minimum: | 15 x Ø |
| Bending Radius for Multi Core: | Minimum: | 12 x Ø |
| O = no earth | |
|
| J = green/yellow earth | |
|
NYY-J Voltage Rating 0.6 / 1kV
| Number of cores and mm2 per conductor | Approximate outside in mm ca. | Copper weight kg/km | Approximate weight kg/km ca. |
| 1 x 25 rm | 13 | 240.0 | 360 |
| 1 x 35 rm | 14 | 336.0 | 470 |
| 1 x 50 rm | 15 | 480.0 | 640 |
| 1 x 70 rm | 17 | 672.0 | 850 |
| 3 x 1.5 re | 12 | 43.0 | 200 |
| 3 x 2.5 re | 13 | 72.0 | 260 |
| 3 x 4 re | 15 | 115.0 | 330 |
| 3 x 6 re | 16 | 173.0 | 430 |
| 3 x 10 re | 18 | 288.0 | 590 |
| 3 x 16 re | 20 | 461.0 | 810 |
| 3 x 25 rm /16 re | 26 | 874.0 | 1,520 |
| 3 x 35 sm/16 re | 28 | 1,162.0 | 1,800 |
| 3 x 50 sm/25 rm | 31 | 1,680.0 | 2,500 |
| 3 x 70 sm/35 sm | 35 | 3,252.0 | 3,300 |
| 3 x 95 sm/50 sm | 40 | 3,216.0 | 4,400 |
| 3 x 120 sm/70 sm | 43 | 4,128.0 | 5,400 |
| 3 x 150 sm/70 sm | 48 | 4,992.0 | 6,700 |
| 3 x 185 sm/95 sm | 52 | 6,240.0 | 8,000 |
| 3 x 240 sm/120 sm | 59 | 8,064.0 | 10,400 |
| 3 x 300/150 sm | 65 | 10,080.0 | 13,000 |
| 4 x 1.5 re | 13 | 58.0 | 230 |
| 4 x 2.5 re | 14 | 96.0 | 300 |
| 4 x 4 re | 16 | 154.0 | 400 |
| 4 x 6 re | 17 | 230.0 | 510 |
| 4 x 10 re | 19 | 384.0 | 720 |
| 4 x 16 re | 22 | 614.0 | 1,050 |
| 4 x 25 rm | 28 | 960.0 | 1,650 |
| 4 x 35 sm | 28 | 1,344.0 | 2,000 |
| 4 x 50 sm | 31 | 1,920.0 | 2,700 |
| 4 x 70 sm | 35 | 2,688.0 | 3,600 |
| 4 x 95 sm | 40 | 3,648.0 | 4,800 |
| 4 x 120 sm | 43 | 4,608.0 | 5,900 |
| 4 x 150 sm | 48 | 5,760.0 | 7,300 |
| 4 x 185 sm | 53 | 7,104.0 | 9,000 |
| 4 x 240 sm | 60 | 9216.0 | 11,400 |
| 5 x 1.5 re | 14 | 72.0 | 270 |
| 5 x 2.5 re | 15 | 120.0 | 350 |
| 5 x 4 re | 17 | 192.0 | 480 |
| 5 x 6 re | 19 | 288.0 | 610 |
| 5 x 10 re | 21 | 480.0 | 880 |
| 5 x 16 re | 24 | 768.0 | 1,250 |
| 7 x 1.5 re | 15 | 101.0 | 300 |
| 10 x 1.5 re | 17 | 144.0 | 420 |
| 12 x 1.5 re | 18 | 173.0 | 460 |
| 14 x 1.5 re | 19 | 202.0 | 520 |
| 16 x 1.5 re | 20 | 230.0 | 570 |
| 19 x 1.5 re | 21 | 274.0 | 600 |
| 21 x 1.5 re | 22 | 302.0 | 650 |
| 24 x 1.5 re | 23 | 346.0 | 750 |
| 30 x 1.5 re | 25 | 432.0 | 800 |
| 40 x 1.5 re | 28 | 576.0 | 1,050 |
| 52 x 1.5 re | 31 | 749.0 | 1,450 |
| 61 x 1.5 re | 33 | 878.0 | 1,680 |
| 7 x 2.5 re | 16 | 168.0 | 420 |
| 10 x 2.5 re | 19 | 240.0 | 600 |
| 12 x 2.5 re | 21 | 288.0 | 630 |
| 14 2.5 re | 22 | 336.0 | 740 |
| 16 x 2.5 re | 23 | 384.0 | 810 |
| 19 x 2.5 re | 24 | 456.0 | 850 |
| 21 x 2.5 re | 25 | 504.0 | 950 |
| 24 x 2.5 re | 27 | 576.0 | 1,100 |
| 30 x 2.5 re | 29 | 720.0 | 1,300 |
| 40 x 2.5 re | 32 | 960.0 | 1,700 |
| 52 x 2.5 re | 36 | 1,248.0 | 2,200 |
NYY-0 |
|||
| 1 x 6 re | 9 | 58.0 | 140 |
| 1 x 10 re | 10 | 96.0 | 190 |
| 1 x 16 re | 11 | 154.0 | 240 |
| 1 x 25 rm | 13 | 240.0 | 360 |
| 1 x 35 rm | 14 | 336.0 | 470 |
| 1 x 50 rm | 15 | 480.0 | 640 |
| 1 x 70 rm | 17 | 672.0 | 850 |
| 1 x 95 rm | 19 | 912.0 | 1,120 |
| 1 x 120 rm | 21 | 1,152.0 | 1,370 |
| 1 x 150 rm | 23 | 1,440.0 | 1,700 |
| 1 x 185 rm | 25 | 1,776.0 | 2,100 |
| 1 x 240 rm | 28 | 2,304.0 | 2,700 |
| 1 x 300 rm | 30 | 2,880.0 | 3,200 |
| 1 x 500 rm | 39 | 4,800.0 | 5,400 |
| 2 x 1.5 re | 11 | 29.0 | 170 |
| 2 x 2.5 re | 12 | 48.0 | 220 |
| 2 x 4 re | 14 | 77.0 | 290 |
| 2 x 6 re | 15 | 115.0 | 360 |
| 2 x 10 re | 17 | 192.0 | 480 |
| 2 x 16 re | 19 | 307.0 | 660 |
| 3 x 15 re | 12 | 43.0 | 200 |
| 3 x 2.5 re | 13 | 72.0 | 260 |
| 3 x 4 re | 15 | 115.0 | 330 |
| 3 x 6 re | 16 | 173.0 | 430 |
| 3 x 10 re | 18 | 288.0 | 590 |
| 3 x 16 re | 20 | 461.0 | 810 |
| 4 x 1.5 re | 13 | 58.0 | 230 |
| 4 x 2.5 re | 14 | 96.0 | 300 |
| 4 x 4 re | 16 | 154.0 | 400 |
| 4 x 6 re | 17 | 230.0 | 510 |
| 4 x 10 re | 19 | 384.0 | 720 |
| 4 x 16 re | 22 | 614.0 | 1,050 |
| 4 x 25 rm | 28 | 960.0 | 1,650 |
| 4 x 35 sm | 28 | 1,344.0 | 2,000 |
| 4 x 50 sm | 31 | 1,920.0 | 2,700 |
| 4 x 70 sm | 35 | 2,688.0 | 3,600 |
| 4 x 95 sm | 40 | 3,648.0 | 4,800 |
| 5 x 1.5 re | 14 | 72.0 | 270 |
| 5 x 2.5 re | 15 | 120.0 | 350 |
re = round conductor, single wire
rm = round conductor, multi wire
sm = sectorial conductor
Also available in low smoke halogen free versions.
