Cable Application
NYCY cable and NYCWY cable is used as a energy supply cables for power stations, street lighting and underground and in water. For static installation where no mechanical damage is expected. As well as control distribution boards cable where increased electrical and mechanical protection is required.Technical Information
| Conductor: | According to VDE 0295 and IEC 60228, class 1 single wire conductors | |
| Core insulation: | PVC and colour coded to VDE 0293, more than 6 cores number coded | |
| Bedding: | PVC | |

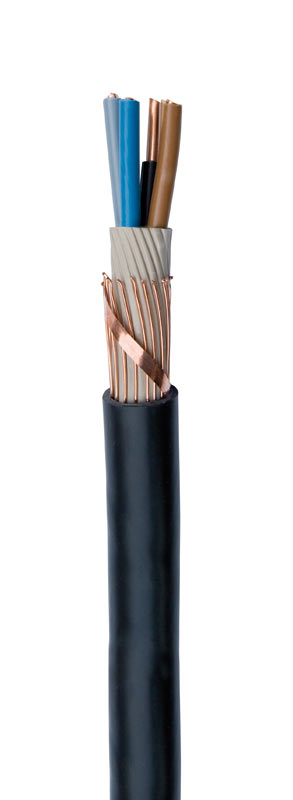

| Concentric Conductor: | Stranded concentrically Concentric conductors in inner layer of round copper wires, outer layer with copper tape | |
| Outer Sheath: | PVC Black | |
| Voltage Rating: | 0.6 - 1kV | |
| Temperature Range: | Flexing: | - 5°C to + 50°C |
| Static: | -30°C to + 70°C | |
| Bending Radius: | Single conductor 15 x Ø Multi conductor 12 x Ø | |
Core Marking
| NYY-J: | With protective earth |
Cable Ordering
| Number of cores and cross section mm2 | Copper weight kg/km | Approximate outside in mm ca. | Approximate weight kg/100m |
| 2 x 1.5 RE /1.5 | 52.0 | 13.0 | 245 |
| 3 G 1.5 RE/1.5 | 66.0 | 14.0 | 290 |
| 4 G 1.5 RE/1.5 | 81.0 | 15.0 | 330 |
| 7 G 1.5 RE/2.5 | 133.0 | 17.0 | 440 |
| 10 G 1.5 RE/2.5 | 176.0 | 19.0 | 550 |
| 12 G 1.5 RE/2.5 | 205.0 | 20.0 | 620 |
| 14 G 1.5 RE/2.5 | 235.0 | 21.0 | 680 |
| 19 G 1.5 RE/4 | 320.0 | 23.0 | 840 |
| 24 G 1.5 RE/6 | 415.0 | 26.0 | 1,030 |
| 30 G 1.5 RE/6 | 500.0 | 27.0 | 1,180 |
| 40 G 1.5 RE/10 | 696.0 | 30.0 | 1,500 |
| 2 x 2.5 RE/2.5 | 80.0 | 14.0 | 310 |
| 3 G 2.5 RE/2.5 | 105.0 | 15.0 | 350 |
| 4 G 2.5 RE/2.5 | 128.0 | 16.0 | 410 |
| 7 G 2.5 RE/2.5 | 200.0 | 18.0 | 540 |
| 10 G 2.5 RE/4 | 286.0 | 21.0 | 730 |
| 12 G 2.5 RE/4 | 334.0 | 22.0 | 800 |
| 14 G 2.5 RE/6 | 403.0 | 23.0 | 900 |
| 19 G 2.5 RE6 | 523.0 | 25.0 | 1,090 |
| 24 G 2.5 RE/10 | 696.0 | 28.0 | 1,370 |
| 30 G 2.5 RE/10 | 840.0 | 30.0 | 1,580 |
| 40 G 2.5 RE/10 | 1,080.0 | 33.0 | 1,970 |
| 3 G 4 RE/4 | 161.0 | 16.0 | 480 |
| 4 G 4 RE / 4 | 200.0 | 18.0 | 550 |
| 3 G 6 RE / 6 | 240.0 | 18.0 | 590 |
| 4 G 6 RE / 6 | 297.0 | 19.0 | 690 |
NYCWY Cable *
| Number of cores and cross section mm2 | Copper weight kg/km | Approximate outside in mm ca. | Approximate weight kg/100m |
| 2 G 10 RE/10 | 312.0 | 19.0 | 680 |
| 3 G 10 RE/10 | 408.0 | 20.0 | 780 |
| 4 G 10 RE/10 | 504.0 | 21.0 | 910 |
| 3 G 16 RE/16 | 643.0 | 22.0 | 1,100 |
| 4 G 16 RE/16 | 796.0 | 24.0 | 1,250 |
| 3 G 25 RM/25 | 1,003.0 | 27.0 | 1,650 |
| 4 G 25 RM/16 | 1,142.0 | 29.0 | 1,850 |
| 3 G 35 SM/16 | 1,190.0 | 26.0 | 1,170 |
| 3 G 35 SM/35 | 1,402.0 | 27.0 | 1,990 |
| 4 G 35 SM/16 | 1,526.0 | 29.0 | 2,150 |
| 3 G 50 SM/25 | 1,723.0 | 30.0 | 2,300 |
| 3 G 50 SM/50 | 2,000.0 | 31.0 | 2,500 |
| 4 G 50 SM/25 | 2,203.0 | 34.0 | 2,950 |
| 3 G 70 SM/35 | 2,410.0 | 34.0 | 3,150 |
| 3 G 70 SM/70 | 2,796.0 | 34.0 | 3,500 |
| 4 G 70 SM/35 | 3,082.0 | 38.0 | 3,950 |
| 3 G 95 SM/50 | 3,296.0 | 39.0 | 4,200 |
| 3 G 95 SM/95 | 3,791.0 | 39.0 | 4,700 |
| 4 G 95 SM/50 | 4,208.0 | 43.0 | 5,300 |
| 4 G 120 SM/70 | 5,388.0 | 47.0 | 6,650 |
| 4 G 150 SM/70 | 6,540.0 | 51.0 | 7,950 |
| 4 G 185 SM/95 | 8,159.0 | 57.0 | 9,900 |
re = round conductor, solid
rm = round conductor, stranded
sm = sectorial conductor, stranded
Also available in low smoke halogen free versions. Click to download our Catalogue PDF for NYCY Energy Cable.
