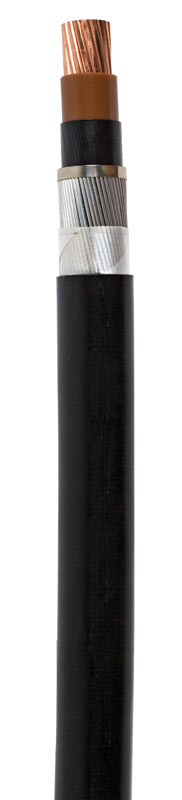

Single Core Low Voltage Power Cable

Single Core Low Voltage Power Cable

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV

Cable Application

Cu/XLPE/PVC/AWA/PVC power cable may be used for fixed installation indoors and outdoors in cable ducts or directly in the ground.

Technical Information

Conductor Material: Copper, IEC60228
Conductor Shape: 50mm² up to 400mm² Circular
Conductor Flexibility: Stranded class 2
Outer Sheath: PVC, IEC60502
Inner Sheath: PVC, IEC60502
Insulation: XLPE (Cross-linked Polyethylene), IEC60502
Armour Type: Aluminium wires
Colour: Black
Lead Free: Yes
Rated Voltage Uo/U (Um): 600/1000V, BS5467
Installation Temperature: Minimum: 0°C Maximum: 60°C
Installation Type: Outdoor Direct burial
Operating Temperature: Minimum: -15°C Maximum: 90°C
Short-circuit Maximum Conductor Temperature: 250°C
Flame Retardant: IEC 60332-1 and BS EN 50265-2-1
Bending Radius: 50mm² up to 1000mm² = 6 x Ø

Part number Cross section mm2 Stranding mm Approx weight kg/km Approx overall diameter Gland size mm Single cleat Nom. Max. DC-resist conductor 20°C ohm/km Current rating laid direct amp

Single Core: Brown Inner & Black Outer





AWAPVC1X50 1 x 50 19/1.78 669 17.85 20 0.7 0.387 231
AWAPVC1X70 1 x70 19/2.14 946 19.8 25 0.8 0.268 284
AWAPVC1X95 1 x 95 19/2.52 1,233 21.75 25 0.9 0.193 340
AWAPVC1X120 1 x 120 37/2.03 1,481 23.6 25 1.0 0.153 386
AWAPVC1X150 1 x 150 37/2.25 1,875 26.5 32 1.1 0.124 431
AWAPVC1X185 1 x 185 37/2.52 2,275 28.5 32 1.2 0.0991 485
AWAPVC1X240 1 x 240 61/2.25 2,900 32.0 40 1.4 0.0754 558
AWAPVC1X300 1 x 300 61/2.52 3,525 33.5 40 1.4 0.0601 623
AWAPVC1X400 1 x 400 61/2.85 4,575 38.5 40 1.6 0.0470 691
AWAPVC1X500 1 x 500 61/3.2 5,675 43.1 50s 1.8 0.0366 765
AWAPVC1X630 1 x 630 127/2.52 7,175 47.0 50 2.0 0.0283 840
AWAPVC1X800 1 x 800 127/2.85 9,300 54.0 63s TC9 0.0221 888
AWAPVC1X1000 1 x 1000 127/3.2 11,435 58.4 63s TC10 0.0176 942

Suitable gland types:

Also available in a low smoke halogen free version. Click to download our Catalogue PDF for Single Core Low Voltage Cable.
