Prysmian PROTOLON (FL) LWL (N)TSFLCGEWOEU

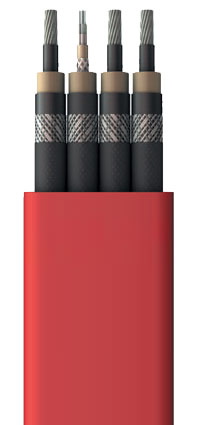

Prysmian Protolon FL LWL CableFlat Medium Voltage Reeling Cable With Integrated Fibre Optics

Flexible reeling cable, for high mechanical stresses, e.g. dynamic tensile loads, multiple changes of direction within one plane, running over rollers. Mainly for mobile equipment, e.g. container cranes, cranes, large mobile equipment and excavators. Available across the UK and for export around the world it complies with the relevant standards DIN VDE 0250, Part 813.

Cable Properties

Conductor and protective­ earth conductor (refer also to DIN VDE 0295) Electrolytic copper tinned, finely stranded, class F
Insulation(refer also to DIN VDE 0207,Part 20) PROTOLON special compound based on high ­quality EPR (at least 3GI3); improved mechanical and electrical characteristics
Field control inner semiconductive layer of EPR, outer semiconductive layer of modified EPR, removable in warm condition
Core identification natural coloured insulation with black semiconductive layer
Core arrangement parallel core arrangement, Earth conductor splitted and concentric distributed around eachcore
Fibre­ optics Fibre core diameter 62.5, 50 or 9µm; diameter across the cladding 125µm, diameter over the coating 250µm
Fibre optic tubes Tubes filled with special gel, compound based on ETFE
Fibre covering Specially developed colour code for identification of the individual fibres
Fibre optic arrangement six tubes, lay up in one layer, with one, two or three FO´s each and special support element into the centre
Sheath system ­ PROTOFIRM Special compound based on CR, quality at least 5GM5, colour: red
Marking PROTOLON (FL) LWL (N)TSFLCGEWOEU (number of cores)x(cross­ section) (rated voltage) (year of manufacture) (serial number)

Electrical Properties

Rated voltage (Uo/U) 3.6 / 6 6 / 10 8.7 / 15
Maximum permissible operating voltage in AC systems (Uo/U) 4.2 / 7.2 6.9 / 12 10.4 / 18
Maximum permissible operating voltage in DC systems (Uo/U) 5.4 / 10.8 9 / 18 13.5 / 27
AC test voltage 11.0 17.0 24.0
according to DIN VDE 0250, Part 813
Current-carrying.capacity According to DIN VDE 0298, Part 4 Higher values are permissible in specific cases. Please consult the manufacturer.
Data transmission Special design with fibre­ optics for trouble free data transmission at high data rates.

Optical Properties

Transmission data of the fibre optics Graded ­index fibre
50/125
Graded ­index fibre
62.5/125
Monomode fibre
E9/125
Max. attenuation at wavelength 850 nm 2.8 dB/km 3.3 dB/km
Max. attenuation at wavelength 1300 nm 0.8 dB/km 0.4 dB/km 0.9 dB/km
Max. attenuation at wavelength 1550 nm  0.3 dB/km
Bandwidth at 850 nm > 400 MHz > 400 MHz
Bandwidth at 1300 nm > 1200 MHz > 600 MHz
Numerical aperture 0.200+/­0.200  0.275+/­0.02 0.14+/­0.02
Chromatic dispersion at 1300 nm <3.5 ps/nm km
Chromatic dispersion at 1550 nm <3.5 ps/nm km

Thermal Properties

Ambient temperature
– Fully flexible operation -35°C to +80°C
– Fixed installation -50°C to +80°C
Maximum permissible operating temperature of the conductor 90°C
Short­ circuit temperature of the conductor 250°C

Mechanical Properties

max. permissible tensile load up to 15 N/mm² (acc. to DIN VDE 0298 part 3)
Torsional stresses n.a.
Minimum bending radii According to DIN VDE 0298, Part 3recommendation: applied cable OD = 1.5 x hight of the flat cable
Minimum distance with S-­type directional changes 20xD (cable diameter)
Travel speed
– Gantry (reeling operation) 120 m/min
Additional tests Reversed bending test, reeling test

Chemical Properties

Resistance to oil DIN VDE 0473, Part 811­2­1 Para. 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture
Water compatibility According to HD 2216

Preparation of fibre­ optics requires special skills and use of elaborate tools. It is therefore recommended that performance of this work be entrusted to our customer service. (Assembly at works), Please give the connection dimensions.

Ordering Information

No. Cores x Nominal Cross Section Order No. Conductor Diameter Min. Dimensions* Max. Dimensions* Approx. net weight 1000m Max. permissible tensile force
(dyn. value)
mm mm mm kg/km N
3.6/6kV (N)TSFLCGEWOEU
3×35+4×25/4E+1x(6LWL) 5DK … 8.2 24.5 x 83.5 27.5 x 88.5 3700 1575
3×50+4×25/4E+1x(6LWL) 5DK … 9.7 27.0 x 90.9 30.0 x 95.9 4530 2250
3×70+4×35/4E+1x(6LWL) 5DK … 11.4 27.7 x 97.7 31.7 x 102.7 5590 3150
3×95+4×50/4E+1x(6LWL) 5DK …  13.1 30,6×105,3 33,6×110,3 6720 4275
6/10kV (N)TSFLCGEWOEU
3×35+4×25/4E+1x(6LWL) 5DK4 254 8.2 25.3 x 86.7 28.3 x 91.7 3870 1575
3×50+4×25/4E+1x(6LWL) 5DK4 253 9.7 27.8 x 94.1 30.8 x 99.1 4730 2250
3×70+4×35/4E+1x(6LWL) 5DK … 11.4 29.5 x 100.9 32.5 x 105.9 5800 3150
3×95+4×50/4E+1x(6LWL) 5DK … 13.1 31.4 x 108.5 34.4 x 113.5 6940 4275
8.7/15kV (N)TSFLCGEWOEU
3×35+4×25/4E+1x(6LWL) 5DK5 435 8.2 28.5 x 96.9 31.5 x 101.9 4610 1575
3×50+4×25/4E+1x(6LWL) 5DK5 014 9.7 30.0 x 102.9 33.0 x 107.9 5340 2250
3×70+4×35/4E+1x(6LWL) 5DK … 11.4 31.7 x 109.7 33.7 x 114.7 6460 3150



*Guidance value
