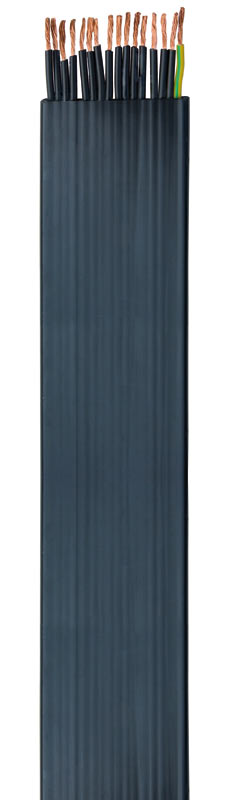

PVC Flatform Cable (H07VVH6-F)

PVC Flatform Cable (H07VVH6-F)Cable Application

Widely used on festoon systems supplying power and control to all types of moving machinery. Suitable in dry, wet and moist rooms and are used in conveyor and hoisting equipment etc, and as feed cable for mobile machine components. These cables have significant smaller bending radius compared to round cables.

Technical Information

Conductor: Flexible plain copper
Stranding: According to VDE 0295, class 5, IEC 60228
Insulation: PVC
Core Marking: Up to 5 cores colour coded in accordance to VDE 0293;
7 cores and more are number coded with a green/yellow earth
Outer Sheath: Black PVC
Voltage Rating: 1mm2 300/500V
1.5mm2 up to 95mm2 450/750V
Temperature Range: Flexing: -25°C to +60°C
Static: -40°C to +60°C
Bending Radius: 10 x Ø
Cores Cross section
mm2
Outer diameter
mm
Current rating at
30°C (amps)
Weight
kg/km
12 1 35 x 4.3 392
16 1 46 x 4.3 521
20 1 57 x 4.3 642
24 1 68 x 4.3 772
4 1.5 14.5 x 5.2 19 130
5 1.5 17.5 x 5.2 19 160
7 1.5 25.3 x 5.2 19 230
8 1.5 25.3 x 5.2 19 260
10 1.5 27.3 x 5.2 19 320
12 1.5 40.8 x 5.2 19 385
18 1.5 61.8 x 5.2 19 665
24 1.5 83 x 5.2 19 820
4 2.5 17.5 x 5.9 25 190
5 2.5 21.1 x 5.9 25 235
7 2.5 31.1 x 5.9 25 340
8 2.5 33.1 x 5.9 25 370
10 2.5 42.6 x 5.9 25 515
12 2.5 49.1 x 5.9 25 560
24 2.5 102 x 5.9 25 1220
4 4 20 x 6.9 34 270
5 4 26 x 6.9 34 280
7 4 35.3 x 6.9 34 480
4 10 27.6 x 9.3 60 580
5 10 37.5 x 11 60 1120
4 16 43.5 x 11.2 80 1180
4 25 41.2 x 13 101 1440
4 35 49.6 x 14.5 126 1800
4 50 58.4 x 17.5 153 2520
4 70 63 x 20 196 3670
4 95 73 x 21 238 4530
