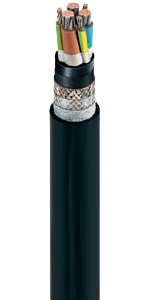

Highly Flexible Cable for Energy Chain Systems
All chain systems (e.g. container cranes, stacking cranes, indoor cranes,material handling equipment). Especially in outdoor application and at long travel distances, high speed travels and high expectations (such as long lifetime, reliability, abrasion resistance, etc.) to the cable.
Electrical Specifications
| Standards: | Based on DIN VDE 0250, Part 814; GOST R |
| Rated Voltage: | Uo/U = 0.6/1 kV |
| Max. permissible operating voltage in AC systems: |
Uo/U = 0.7/1.2 kV |
| Max. permissible operating voltage in DC systems |
Uo/U = 0.9/1.8 kV |
| AC test voltage | 3.5 kV, 5 min |
| Current carrying capacity | According to DIN VDE 0298, Part 4 |
| – single core | table 15 section 2 |
| – multiple core | table 15 section 4 |
| EMC | Given because of a special cable design |
Thermal Specifications
| Ambient temperature | |
| – Fully flexible operation | -35°C to +80°C |
| – Fixed installation | -50°C to +80°C |
| Maximum permissible operating temperature of the conductor | 90°C |
| Short circuit temperature of the conductor | 250°C |
Mechanical Specifications
| Tensile load: | Up to 15 N/mm² |
| Torsional stresses: | No application |
| Minimum bending radii: | According to DIN VDE 0298, Part 3 |
| Travel speed | |
| – Trolley | Guidance value: up to 300 m/min (tested on own test equipment) |
| – Other | all other chain applications |
| Additional tests | Bending test, abrasion test, practical test on own long distance testing facility |
Chemical Specifications
| Resistance to oil | DIN VDE 0473, Part 81121, Para. 10 |
| Weather resistance | Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture |
Cable Specifications
| Type | RONDOFLEX (CHAIN) |
| Conductor | bare Elektrolyt copper, finely stranded class 5 |
| Earth conductor | electrolytic copper, very finely stranded, class FS (better than class 5) |
| Insulation (refer also to DINVDE 0207) | PROTOLON MS High grade insulation compound based on EPR (at least. 3GI3); Improved mechanical and electrical performance; Alternative at control cables: ETFE |
| Core identification | light coloured compound with black number prints, earth yellow/green |
| Core arrangement | up to 10²mm: 4 core design from 16²mm: 3 energy cores and splitted earth conductor into three parts |
| Inner sheath | special compound based on EPR (at least GM1b); color: black |
| Overall shield (where applicable) | braid screen made of tinned copper wires, surface covered >80% |
| Outer sheath | high grade compound based on EVA with exellent abrasion and aging performance |
| Marking | RONDOFLEX (CHAIN) (N)GRDGOEU (number of cores)x(cross section) 0,6/1 kV |
Rondoflex Cable Ordering
| No. of cores and nominal cross section |
Order No. | Conductor diameter | Overall diameter of cable Min. value |
Overall diameter of cable Max. value |
Approx. net weight for 1000 m |
Maximum permissible tensile force |
| mm | mm | mm | kg/km | N | ||
| (N)GRDGOEU power cable, single core design | ||||||
| 1×16 | 5DG4 011 | 5.7 | 7.7 | 9.7 | 210 | 240 |
| 1×25 | 5DG4 012 | 7.1 | 10.6 | 12.6 | 325 | 375 |
| 1×35 | 5DG4 013 | 8.3 | 12.1 | 14.1 | 445 | 525 |
| 1×50 | 5DG4 014 | 9.8 | 13.9 | 15.9 | 605 | 750 |
| 1×70 | 5DG4 015 | 11.6 | 15.9 | 17.9 | 830 | 1050 |
| 1×95 | 5DG4 016 | 13.8 | 19.1 | 21.1 | 1120 | 1425 |
| 1×120 | 5DG4 017 | 14.9 | 20.8 | 22.8 | 1390 | 1800 |
| 1×150 | 5DG4 018 | 17.2 | 23.0 | 26.0 | 1740 | 2250 |
| 1×185 | 5DG4 019 | 18.0 | 25.8 | 28.8 | 2130 | 2775 |
| 1×240 | 5DG4 020 | 22.5 | 29.9 | 32.9 | 2830 | 3600 |
| (N)GRDGCGOEU power cable, single core design, screened | ||||||
| 1x16C | 5DG4 211 | 5.7 | 10.1 | 12.1 | 320 | 240 |
| 1x25C | 5DG4 212 | 7.1 | 12.8 | 14.8 | 450 | 375 |
| 1x35C | 5DG4 213 | 8.3 | 13.9 | 15.9 | 555 | 525 |
| 1x50C | 5DG4 214 | 9.8 | 15.7 | 17.7 | 745 | 750 |
| 1x70C | 5DG4 215 | 11.6 | 18.7 | 20.7 | 1090 | 1050 |
| 1x95C | 5DG4 216 | 13.8 | 20.8 | 22.8 | 1330 | 1425 |
| 1x120C | 5DG4 217 | 14.9 | 22.8 | 24.8 | 1580 | 1800 |
| 1x150C | 5DG4 218 | 17.2 | 25.6 | 28.6 | 2000 | 2250 |
| 1x185C | 5DG4 219 | 18.0 | 27.8 | 30.8 | 2330 | 2775 |
| 1x240C | 5DG4 220 | 22.5 | 31.9 | 34.9 | 3130 | 3600 |
| (N)GRDGOEUJ power cable, 3/4 core design | ||||||
| 4×4 | 5DG4 111 | 2.9 | 12.7 | 14.7 | 325 | 240 |
| 4×6 | 5DG4 112 | 3.6 | 14.2 | 16.2 | 435 | 360 |
| 4×10 | 5DG4 113 | 4.6 | 16.6 | 18.6 | 650 | 600 |
| 4×16 | 5DG4 114 | 5.9 | 20.0 | 22.0 | 960 | 960 |
| 4×25 | 5DG4 115 | 7.2 | 25.9 | 28.9 | 1580 | 1500 |
| 3×35+3×16/3 | 5DG4 116 | 8.1 | 26.4 | 29.4 | 1770 | 1575 |
| 3×50+3×25/3 | 5DG4 117 | 10.0 | 31.5 | 34.5 | 2510 | 2250 |
| (N)GRDGCGOEUJ power cable, 3/4/5 core design, overall screened | ||||||
| 4×2.5C | 5DG4 240 | 1.9 | 11.3 | 13.3 | 390 | 150 |
| 4x4C | 5DG4 241 | 2.9 | 15.7 | 17.7 | 505 | 240 |
| 4x6C | 5DG4 242 | 3.6 | 17.0 | 19.0 | 650 | 360 |
| 4x10C | 5DG4 243 | 4.6 | 19.7 | 21.7 | 930 | 600 |
| 3×16+3×2.5C | 5DG4 254 | 5.9 | 20.4 | 22.4 | 1070 | 720 |
| 3×25+3x4C | 5DG4 255 | 7.2 | 25.8 | 28.8 | 1810 | 1125 |
| 3×35+3x6C | 5DG4 256 | 8.1 | 28.6 | 31.6 | 2220 | 1575 |
| 3×50+3x10C | 5DG4 257 | 10.0 | 35.0 | 38.0 | 3090 | 2250 |
| 3×70+3x10C | 5DG4 258 | 11.8 | 39.7 | 42.8 | 4100 | 3150 |
| 5x16C | 5DG4 264 | 5.9 | 25.7 | 28.7 | 1610 | 1200 |
| (N)GRDGOEUJ power cable, 5/7core design | ||||||
| 7×4 | 5DG4 171 | 2.9 | 16.7 | 18.7 | 535 | 420 |
| 5×6 | 5DG4 122 | 3.6 | 15.8 | 17.8 | 535 | 450 |
| 5×10 | 5DG4 123 | 4.6 | 19.7 | 21.7 | 850 | 750 |
| 5×16 | 5DG4 124 | 5.9 | 22.8 | 24.8 | 1220 | 1200 |
| (N)GRDGOEUJ control cable | ||||||
| 12×1.5 | 5DG4 152 | 1.5 | 11.7 | 13.7 | 305 | 270 |
| 24×1.5 | 5DG4 154 | 1.5 | 17.1 | 19.1 | 705 | 540 |
| 7×2.5 | 5DG4 141 | 1.9 | 11.3 | 13.3 | 290 | 263 |
| 12×2.5 | 5DG4 190 | 1.9 | 13.6 | 15.6 | 485 | 450 |
| 18×2.5 | 5DG4 191 | 1.9 | 16.9 | 18.9 | 760 | 675 |
| 24×2.5 | 5DG4 192 | 1.9 | 22.5 | 24.5 | 1010 | 900 |
| (N)GRDGOEUJ control cable with overall screen | ||||||
| 5×2.5C | 5DG4 260 | 1.9 | 12.7 | 14.7 | 435 | 188 |
| 12×1.5C | 5DG4 252 | 1.5 | 14.7 | 16.7 | 440 | 270 |
| Fibre optic cable | ||||||
| 6xG62.5/125µ | 5DG4 290 | – | 14.0 | 16.0 | 260 | 500 |
| 12xG62.5/125µ | 5DG4 291 | – | 14.0 | 16.0 | 260 | 500 |
| 6xE9/125µ | 5DG4 292 | – | 14.0 | 16.0 | 260 | 500 |
| (N)GRDGOEUO bus cable | ||||||
| 1x(2×0.5)C | 5DG4 … | 0.9 | 8.0 | 10.0 | 135 | 15 |
| 4x(2×0.5)C | 5DG4 280 | 0.9 | 19.0 | 21.0 | 625 | 60 |
| (4x2x0,5)C | 5DG4 … | 0.9 | 19.2 | 21.2 | 605 | 60 |
| 6x(2×0,5)C | 5DG4 … | 0.9 | 20.2 | 22.2 | 730 | 90 |
| 6x(2×1)C | 5DG4 … | 1.3 | 26.3 | 29.3 | 1120 | 180 |
