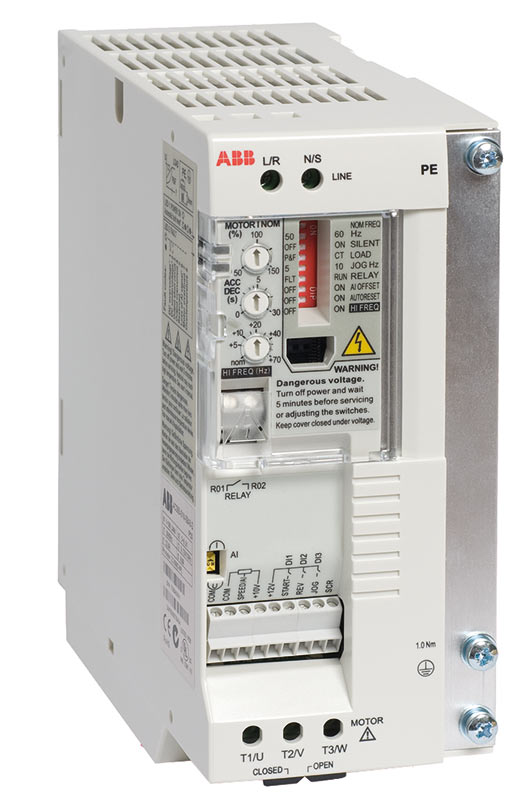

ABB ACS55 Drive

ABB ACS55 DriveABB ACS55 0.18 to 2.2kW / 0.25 to 3 hp

The ABB ACS55 component drive meets the requirements of OEMs, installation companies and panel builders. These drives are components that are bought together with other components from a logistical distributor. The drives are stocked, and the number of options and, variants is optimised for logistical distribution.

ACS55 Component Drive Highlights

  • Descriptive interface
  • Compact and slim
  • Fast and safe drive configuration with DriveConfig kit
  • Ideal for DIN-rail mounting
  • Suitable for domestic environment as standard
  • Silent motor

ABB ACS55 Applications

  • Fans
  • Pumps
  • Gate Control
  • Material Handling
  • Conveyors

ACS55 Voltage and power range

  • 1-phase, 110 to 120 V +10/-15% : 0.18 to 0.37 kW (0.25 to 0.5 hp)
  • 1-phase, 200 to 240 V +10/-15% : 0.18 to 2.2 kW (0.25 to 3 hp)

ACS55 Options

  • Input / Output Chokes
  • Potentiometer
  • DriveConfig kit
Features Benefits Notes
Descriptive Interface Faster set-upEasier configuationEasier drive for new users Basic parameter settings are done with DIP switches and potentiometers
Compact and Slim Less space required fro installation 0.18 to 0.37 kW 45mm width0.75 kW 67.5 mm width1.5 to 2.2 kW 70mm width
DriveConfig Kit Fast and safe configuration of unpowered drives New drive configuration tool for volume manufacturing
Removable mounting clip Flexible and simple mounting Removable clip allows DIN rail and wall mounting from back and side of the unit
EMC Low EMC emissions 1st environmentEMC filters as standard
Automatic switching frequency Provides lowest possible noise without decreased derating of the drive Increases switching frequency automatically, when drive temperature is decreased

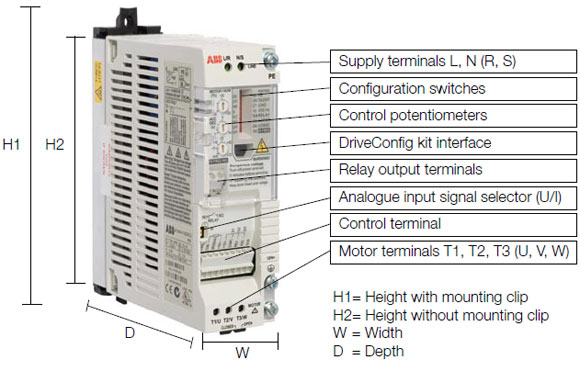

ABB ACS55 Diagram

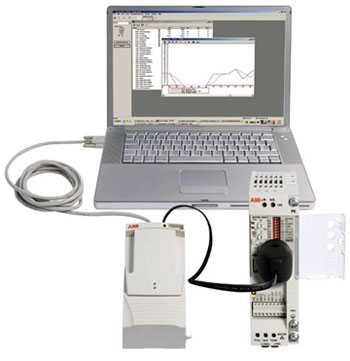

ABB ACS55 ConfigurationACS55  DriveConfig Kit

The DriveConfig kit is a PC tool for volume configuration and control of ACS55 drives. The kit enables parameter setting and software updating without the need for a power connection. The drives can even remain in their delivery boxes during configuration. The DriveConfig kit features on-line drive control and monitoring of up to four signals

simultaneously. Together with ACS55 drives, the DriveConfig kit brings additional value to processes by saving time and ensuring safety.

DriveConfig kit includes:

  • Hardware and cables
  • PC software
  • User manual in English (hardcopy and PDF)
  • Battery charger
  • Serial port / USB adapter

DriveConfig kit requirements:

  • PC with Microsoft Windows 2000/XP operating system
  • Free serial or USB port from the PC
