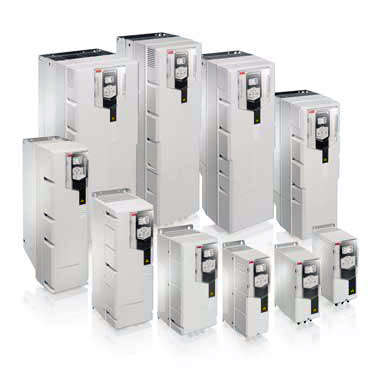

ABB ACS580 DriveThe ABB ACS580 general purpose drive is 0.75 to 500kW and available now from CSE Distributors. This new range of drives which are superseding the ACS550 drives can be installed either in cabinet installations or wall mounted for simple control processes.

ABB has set the drive up to work across a number of industries with the control panel’s settings menu enabling a quick and smart way to put the drive into commission quickly. The set up assistants and in built essential features means there is little requirement for additional hardware and ready to control pumps, fans, conveyors, mixers and other variable and constant torque applications.

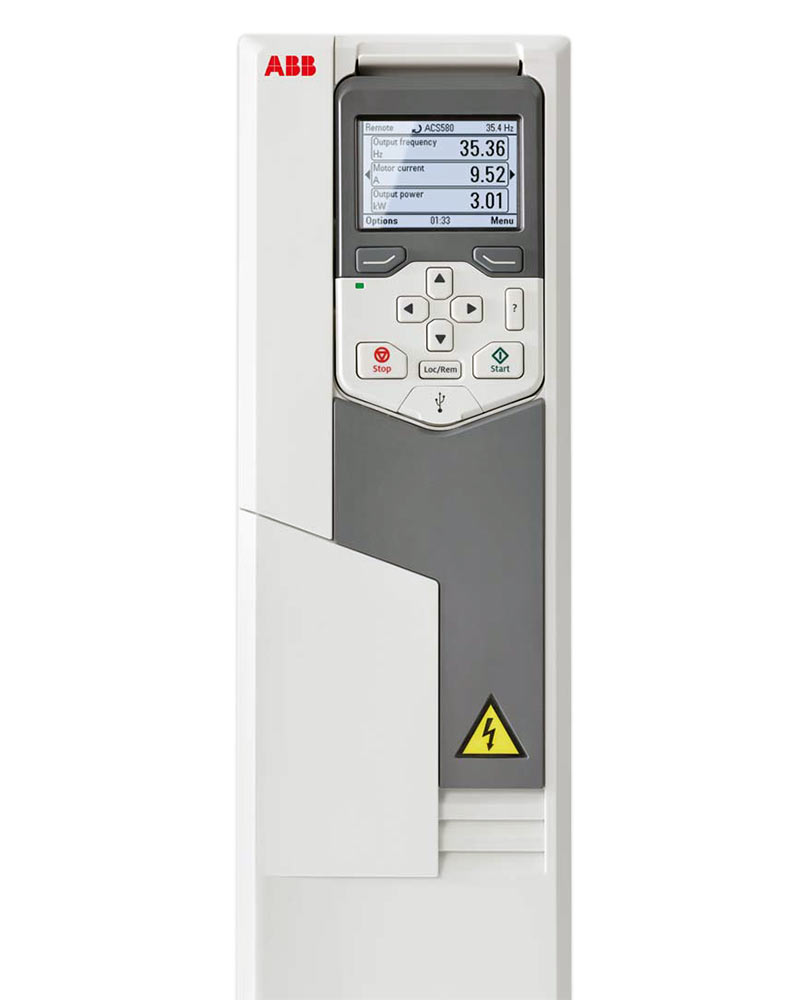

ACS580 Wall Mounted Drive

The wall-mounted drives are available with IP21, as well as IP55, UL Type 12 protection class which is designed for applications exposed to dust, moisture, vibrations, and other harsh environments. The very compact IP55 protection over the whole power range is optimized to match the size of IP21 drives, with only depth increasing. The IP55 drive provides significant savings in space, maintenance, engineering, material costs, as well as in setup and commissioning time.

ACS580 Panel Installations

The ACS580 drive module for cabinet installations extends the effortless energy efficiency and simplicity in drive operation to broader power range. The module features a robust IP00 construction, an advanced pedestal system and ramp for quick and easy cabinet installation, resulting in reduced setup and commissioning time. As all the essential features are built into the drive module as standard, the need for external components, extra cabling and space requirements is reduced to minimum.

Key ACS580 Features

  • ABB ACS580 DrivesSimple to select and install – the drives have build in EMC filters, Modbus RTU fieldbus interface, safe torque off
  • Simple to use control panel – the menu lets you set the drive up quickly
  • Start up and maintenance tools – Drive composer PC tool for startup, configuration, monitoring and fine tuning your process
  • Access drive information anywhere with remote monitoring via NETA-21
  • Connection to PC via a standard USB
  • Communicates with all major automation networks and optional fieldbus adapters
  • Standard interfaces and built in slot for additional input / output extension modules
  • Energy efficiency – energy optimiser and efficiency information for ongoing energy saving

Ratings, Types & Voltages Information

3-phase, UN = 380, 400, 415 V
Nominal ratings Maximum output current Light-overload use Heavy-duty use Type designation Frame size
PNkW INA ImaxA PLdkW ILdA PHdkW IHdA
0.75 2.6 3.2 0.75 2.5 0.55 1.8 ACS580-01-02A7-4 R1
1.1 3.3 4.7 1.1 3.1 0.75 2.6 ACS580-01-03A4-4 R1
1.5 4 5.9 1.5 3.8 1.1 3.3 ACS580-01-04A1-4 R1
2.2 5.6 7.2 2.2 5.3 1.5 4 ACS580-01-05A7-4 R1
3 7.2 10.1 3 6.8 2.2 5.6 ACS580-01-07A3-4 R1
4 9.4 13 4 8.9 3 7.2 ACS580-01-09A5-4 R1
5.5 12.6 14.1 5.5 12 4 9.4 ACS580-01-12A7-4 R1
7.5 17 22.7 7.5 16.2 5.5 12.6 ACS580-01-018A-4 R2
11 25 30.6 11 23.8 7.5 17 ACS580-01-026A-4 R2
15 32 44.3 15 30.4 11 24.6 ACS580-01-033A-4 R3
18.5 38 56.9 18.5 36.1 15 31.6 ACS580-01-039A-4 R3
22 45 67.9 22 42.8 18.5 37.7 ACS580-01-046A-4 R3
30 62 76 30 58 22 44.6 ACS580-01-062A-4 R4
37 73 104 37 68.4 30 61 ACS580-01-073A-4 R4
45 87 122 45 82.7 37 72 ACS580-01-087A-4 R5
55 105 148 55 100 45 87 ACS580-01-105A-4 R6
75 145 178 75 138 55 105 ACS580-01-145A-4 R6
90 169 247 90 161 75 145 ACS580-01-169A-4 R7
110 206 287 110 196 90 169 ACS580-01-206A-4 R7
132 246 350 132 234 110 206 ACS580-01-246A-4 R8
160 293 418 160 278 132 246* ACS580-01-293A-4 R8
200 363 498 200 345 160 293 ACS580-01-363A-4 R9
250 430 617 200 400 200 363 ** ACS580-01-430A-4 R9
250 505 560 250 485 200 361 ACS580-04-505A-4 R10
315 585 730 315 575 250 429 ACS580-04-585A-4 R10
355 650 730 355 634 250 477 ACS580-04-650A-4 R10
400 725 1020 400 715 315 566 ACS580-04-725A-4 R11
450 820 1020 450 810 355 625 ACS580-04-820A-4 R11
500 880 1100 500 865 400 725*** ACS580-04-880A-4 R11

If you require more power and flexibility, then the ACS880 industrial drives are the next step. Whatever your requirements, please contact our drives specialist Pat Davey for expert advice.

Click for ABB’s ACS580 PDF Catalog.
