ABB Low Voltage Motors

ABB Low Voltage Motors

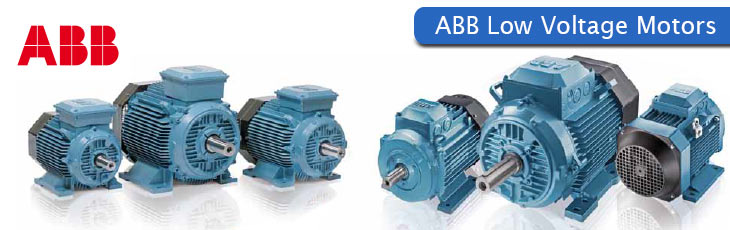

To compliment the ABB Drives, CSE also offer the ABB Low Voltage general performance IE2 high efficiency motors. Sizes range from 56 to 355, from 0.06 to 250kW.

ABB provides motors, generators and mechanical power transmission products, services and expertise to save energy and improve customers processes over the total life cycle of our products, and beyond.

The IE2 high efficiency motors are best suited for applications where simplicity and off the shelf availability are paramount. With ABB quality and support, these motors have the features appreciated by volume customers and serial OEM’s. Motors have IE2 efficiency. Motor range for:

  • Cast iron motors – 71 to 355, 0.25 to 250kW
  • Aluminium motors – 56 to 250, 0.06 to 55kW

Placing an Order

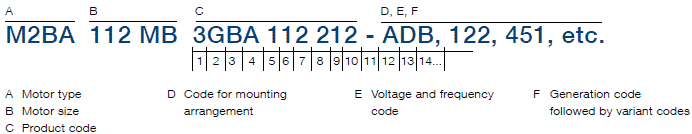

When placing an order, please state the following minimum data in the order, as in the example. The product code of the motor is composed in accordance with the following example.

Motor type M2BA 112 MB
Pole number 4
Mounting arrangement (IM-code) IM B3 (IM 1001)
Rated output 4 kW
Product code 3GBA 112 212-ADB
Variant codes if required

Motor Size

ABB Motor Size

Positions 1 to 4 Position 7 Position 12
3GAA = Pole pairs Mounting arrangement
Totally enclosed motor 1 = 2 poles A = Foot-mounted motor
with aluminum stator frame 2 = 4 poles B = Flange-mounted motor. Large flange with clearance holes
3GBA = 3 = 6 poles C = Flange-mounted motor. Small flange with tapped holes
Totally enclosed motor F = Foot- and flange-mounted motor. Special flange
with cast iron frame Positions 8 to 10 H = Foot- and flange-mounted motor. Large flange with clearance holes
Running number J = Foot- and flange-mounted motor. Small flange with tapped holes
Position 4 N = Flange-mounted (CI ring flange FF)
Type of rotor Position 11 P = Foot-and flange-mounted motor (CI ring flange FF)
A = Squirrel cage rotor – (dash)
Position 13
Positions 5 and 6 Voltage and frequency
IEC size Single-speed motors
05 = 56 16 = 160 D 400 V, 415 V, 460 V 60 Hz, 690 V 50 Hz
06 = 63 18 = 180 S 230 V, 400 VY, 415 VY 50 Hz, 460 V 60 Hz*)
07 = 71 20 = 200
08 = 80 22 = 225 Position 14
09 = 90 25 = 250 Version A,B,C… = Generation code followed by variant codes
10 = 100 28 = 280
11 = 112 31 = 315 *) M2AA 200 is not available for voltages less than 380 VD
13 = 132 35 = 355

Click for a complete ABB Motors technical data and ordering guide PDF.

Have an urgent requirement for more information or to place an order? Contact our Drives and Motors Manager – Pat Davey.

Case Study – Click for a news story of how ABB Motors were used to power Water / HVAC pumps.
