ABB Mini Contactors

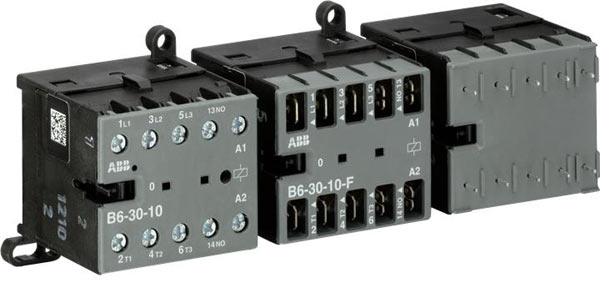

 ABB Mini Contactors B6

ABB B6 & B7 Range

ABB mini contactors are compact and powerful contactors. They are ideally suited for applications where reliability is a must and space is at a premium. The dimensions, technical features and the variety of the assortment provide customers a high flexibility in a wide-range of applications.

The range offers 4-pole mini contactors and 3-pole mini contactors with auxiliary contact up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) with various contact combinations.

B6/BC6 Mini Contactors for switching:

  • AC-3 loads up to 4 kW / 400 V or
  • AC-1 loads up to 20 A / 690 V

B7/BC7 Mini Contactors for switching:

  • AC-3 loads up to 5.5 kW / 400 V or
  • AC-1 loads up to 20 A / 690 V

High quality product

Mini contactors are produced in a full automatic production line where each product will be tested. The factory is certified to ISO 9001/ISO 14000 to guarantee a high level of quality.

Mini contactors use only environmental friendly materials. In modern test laboratories ABB is doing a lot of tests to fulfil the requirements for worldwide standards. Therefore a lot of certificates are available.

The standard technical data:

Switching of heatings (AC-1) B6xx B7xx
Rated operational current le 16 A 20 A
Rated operational power

230 V AC 3 ~ 6.4 kW 8.0 kW
400 V AC 3 ~

Switching of motors (AC-3)

Rated operational current le 9 A 12 A
Rated operational power

230 V AC 3 ~ 2.2 kW 3.0 kW
400 V AC 3 ~ 4.0 kW 5.5 kW

The ABB Mini contactors B6/B7 are very flat, small and powerful. Customers will benefit in applications where room is always

too small or where a compact solution is required. Flat mini contactors can be used in applications with small enclosures for wall mounting in buildings. Also many consumer machines need effective, reliable products for power control.

Range of Applications

Those applications require extended operating data, because in cold wintertime as well as in hot areas a reliable function is necessary. These products are mostly under heavy duty as shock and vibrations. Special mini contactor types can manage such operating conditions.

Applications

  • Compressors
  • Railways
  • Windmills – small and middle size
  • Sewing machines

Features

  • Shock and vibration proved
  • Wide temperature ranges
  • Wide voltage range coils
  • Low power consumption

Compact motor starting solutions

Such a compact product as the mini contactor can be used and easily linked with manual motor starter or as plug in module with busbar systems. The contactor is strong enough for motor starter solutions up to 5.5 kW for use in machines and production
systems.

Applications

  • Production systems
  • Machines

Features

  • Compact and very small, up to 5.5 kW
  • Easy and quick mounting
  • Reversing contactor is one module ready to link to the manual motor starter
  • Low power consumption
  • AC versions work with rectifier on DC coil

Ordering Information

3 Pole Contactors * Flat Pin Terminals

AC3 380 / 415V Aux Contacts Description Order Code
kW A NO NC

4 16 1 B6-30-01 230AC GJL1211001R8010
4 16 1 B6-30-01 110AC GJL1211001R8014
4 16 1 B6-30-01 24AC GJL1211001R0011
4 16 1 B6-30-01-F 220AC GJL1211003R8010
4 16 1 B6-30-01-F 110AC* GJL1211003R8014
4 16 1 B6-30-01-F 24AC* GJL1211003R0011
4 16 1 B6-30-10 110AC GJL1211001R8104
4 16 1 B6-30-10 230AC GJL1211001R8100
4 16 1 B6-30-10 24AC GJL1211001R0101
4 16 1 B6-30-10 400AC GJL1211001R8105



4 Pole Contactors *Flat Pin Terminals

AC3 380 / 415V Aux Contacts Description Order Code
kW A NO NC

4 16 B6-40-00 110AC GJL1211201R8004
4 16 B6-40-00 230AC GJL12112101R8000
4 16 B6-40-00 24AC GJL12112101R001
4 16 B6-40-00-F 230AC GJL1211203R8000



3 Pole Contactors

AC3 380 / 415V Aux Contacts Description Order Code
kW A NO NC

5.5 20 1 B7-30-01 230AC GJL1311001R8010
5.5 20 1 B7-30-10 110AC GJL1311001R8104
5.5 20 1 B7-30-10 230AC GJL1311001R8100
5.5 20 1 B7-30-10 24AC GJL1311001R0101



3 Pole DC Contactors *Flat Pin Terminals

AC3 380 / 415V Aux Contacts Description Order Code
kW A NO NC

4 16 1 BC6-30 110DC GJL1213001R0014
4 16 1 BC6-30-01 24DC GJL1213001R0011
4 16 1 BC6-30-01-F 24DC* GJL1213003R0011
4 16 1 BC6-30-10 24DC GJL1213001R0101
4 16 1 BC6-30-10-1.4 24DC GJL1213001R8101
5.5 20 1 BC7-30-10 24DC GJL1313001R0101



Compact Reversing Contactors

AC3 380 / 415V Aux Contacts Description Order Code
kW A NO NC


1 VB6-30-01 110AC GJL1211901R8014

1 VB6-30-10 110AC GJL1211901R8104

1 VB6-30-10 230AC GJL1211901R8100

1 VB6-30-10 24AC GJL1211901R0101

1 VB6A-30-10 230AC GJL1211911R8100

1 VBC6-30-10 24DC GJL1213901R0101


VB6A-40-00 220-240V40-450HZ GJL1211911R8000



Mini Contactor Relays

AC3 380 / 415V Aux Contacts Description Order Code
kW A NO NC


2 2 K6-22Z 110AC GJH1211001R8224

2 2 K6-22Z 230AC GJH1211001R8220

3 1 K6-31Z 230AC GJH1211001R8310

2 2 KC6-22Z 110DC GJH1213001R0224

2 2 KC6-22Z 24DC GJH1213001R0221
