ETE Thermal Management

ETE FK Series IP54 Filter FansETE designs and manufactures a range of thermal management products:

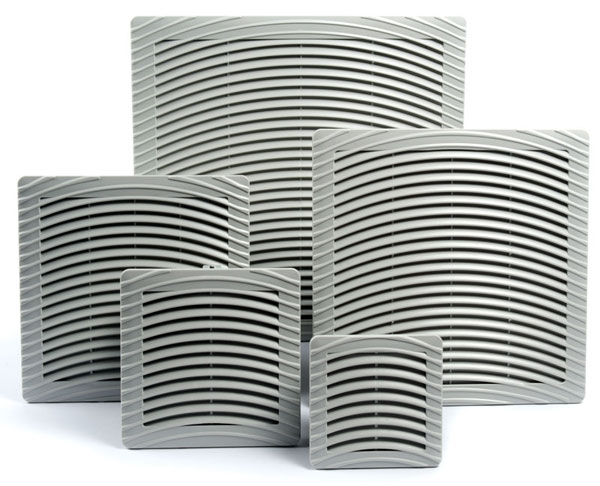

IP54 Filter Fans and Exhausts

FK Series of AC and DC Filter Fans and Exhaust Filters

FK77 series of AC & DC filter fans to IP54

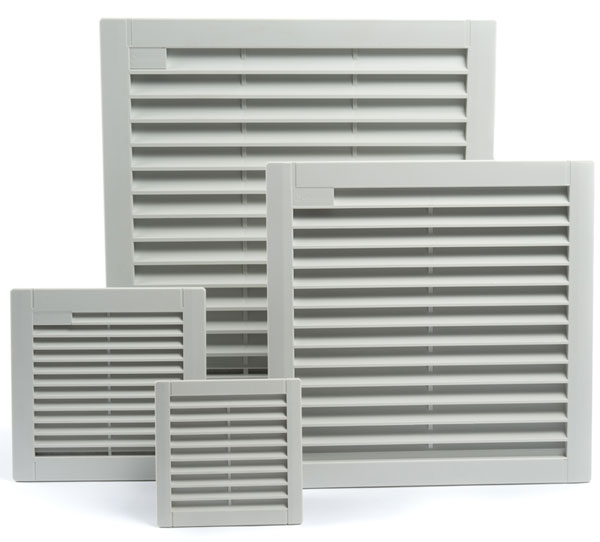

Plus a full range of IP54 FK77 series exhaust filters

With airflow rates from 20 cu m/hr to 1020 cu m/hr (free blowing) and with 15 cu m/hr to 620 cu m/hr ETE FK Series IP54 Exhaust Fanswith exhaust filter(s) fitted

  • Axial fans: AC self-starting ,screened ,magnetic pole motor
  • Axial fans: DC direct current motor
  • Temperature range -10 deg C to +55 deg C
  • In RAL 7035 colour code

A comprehensive range of IP54 rated AC and DC axial filter fans with complimenting
exhaust filters. A wide range of airflow rates are covered in both free blowing modes and
restricted modes (with exhaust filters fitted).
Power ratings and noise levels are as follows:

  • 7721 AC types 12~15W, 41/46 dB (A) , 7721 DC type 4.3W, 41/46 dB (A)
  • 7722 AC types 18~19W, 46/49 dB (A) , 7722 DC type 3.5W, 46/49 dB (A)
  • 7725 AC types 38~41W, 54/56 dB (A) , 7725 DC type 14W, 38/41 dB (A)
  • 7726 AC 230V type 120~138W, 68/71 dB (A) , 7726 AC 115V type 150/180W, 68/71 dB (A)

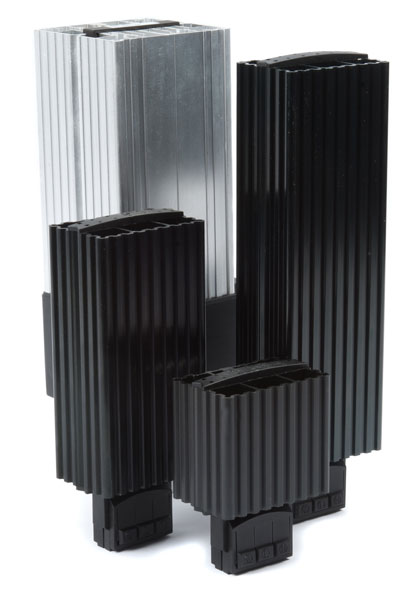

Anti Condensation HeatersETE Anti Condensation Heaters

Natural Convection Anti-Condensation Heaters For Enclosures and Control Panels

Comprehensive ranges of anti-condensation heaters for a wide range
of applications and enclosure sizes

  • HG- PTC resistor, self regulating and temperature limiting
  • MHT- PTC protected mini heaters with 400mm long wires from 5-30W
  • SHT- PTC protected with terminals from 25-150W
  • SHT/W- PTC protected with 400mm long wires from 15-50W
  • Fast and simple installation With mounting for 35mm DIN EN 50022 rail.

Three ranges of anti-condensation heaters ranging from 5W to 150W all with natural heat convection.

The HG series are self regulating and are fitted with pressure clamp terminations.

The MHT,SHT and SHT/W ranges are Class II and have voltages including 110-250V AC or DC

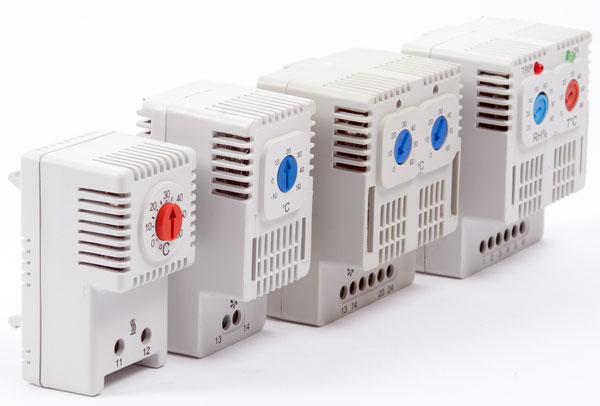

Thermostat / HygroStat

ETE Thermostat / HygroStatKTO & KTS Heating and Cooling Thermostats

ZR Double Thermostats and MFR Hygrostats

Comprehensive ranges of heating and cooling thermostats, double
thermostats and thermo-hygrostats.

  • KTO 011 thermostats with normally open contacts for cooling devices
  • KTS 011 thermostats with normally closed contacts for heating devices
  • ZR 011 double thermostats with dual contacts for heating and cooling devices
  • MFR 012 electromechanical hygrostats for control of enclosure heaters with high humidity or low temperature triggering
  • All with mounting for 35mm DIN EN 50022 rail.

Three ranges of control devices for the accurate control of heat , condensation and humidity.

The KTO 011 and KTS 011 thermostats operate with a snap action, bimetallic, two pole contact set .

The ZR 011 double thermostat offers dual control in a single unit, maximising space and simplifying wiring . Normally closed contacts are used for regulating heaters and normally open contacts are used for egulating cooling fans, heat exchangers or switching signalling devices. Heaters and cooling equipment can be switched independently with a temperature offset rather than the usual change-over contacts.

The MFR 012 electromechanical hygrostat triggers for high humidity or low temperature and has changeover contacts. Designed to control heaters when a critical relative humidity of 65% is reached.

All units are designed of mounting on a 35mm DIN rail.

Three ranges of anti-condensation heaters ranging from 5W to 150W all with natural heat convection.

The HG series are self regulating and are fitted with pressure clamp terminations.

The MHT,SHT and SHT/W ranges are Class II and have voltages including 110-250V AC or DC
