Analogue Controlled Thyristor Controllers

Carlo Gavazzi RGC3P Solid State RelaysCarlo Gavazzi 1 Phase Solid State Relays – RGC1P..AA.., RGC1P..V..

  • 1-pole analogue switching AC solid state contactors
  •  Selectable mode of operation:
  • – Phase Angle
    • Full Cycle x1, x4, x16
    • Advanced Full Cycle
    • Soft Starting
  • Rated operational voltage: up to 660 VAC
  • Rated operational current: up to 63 AAC
  • Control inputs: 4-20 mA, 0-5 V, 1-5 V, 0-10 V, external potentiometer
  • Integrated varistor protection on output
  • Load ON LED indication
  • 100kA short circuit current rating according to UL508
  • DIN or panel mount
Output voltage Control input External supply, Power connection Rated operational current @ 40°C (I²t)
Product width
Ue Us 15 AAC
(1,800 A²s)
35 mm
30 AAC
(1,800 A²s)
35 mm
43 AAC
(18,000 A²s)
35 mm
50 AAC
(3,200 A²s)
70 mm
63 AAC
(18,000 A²s)
70 mm
85 – 265 VAC AA: Screw RGC1P23AA12E RGC1P23AA30E
4-20 mADC Box RGC1P23AA42E RGC1P23AA50E RGC1P23AA62E
V: 24 VDC/AC Screw RGC1P23V12ED RGC1P23V30ED
0-10V, 0-5V, Box RGC1P23V42ED RGC1P23V50ED RGC1P23V62ED
1-5VDC, pot 90-250 VAC Screw RGC1P23V12EA RGC1P23V30EA
Box RGC1P23V42EA RGC1P23V62EA
190 – 550 VAC AA: Screw RGC1P48AA12E RGC1P48AA30E
4-20 mADC Box RGC1P48AA42E RGC1P48AA50E RGC1P48AA62E
V: 24 VDC/AC Screw RGC1P48V12ED RGC1P48V30ED
0-10V, 0-5V,
1-5VDC, pot
Box RGC1P48V42ED RGC1P48V50ED RGC1P48V62ED
90-250 VAC Screw RGC1P48V12EA RGC1P48V30EA
Box RGC1P48V42EA RGC1P48V62EA
410 – 660 VAC AA: Screw RGC1P60AA30E
4-20 mADC Box RGC1P60AA42E RGC1P60AA62E
V: 24 VDC/AC Screw RGC1P60V30ED
0-10V, 0-5V,
1-5VDC, pot
Box RGC1P60V42ED RGC1P60V62ED
90-250 VAC Screw RGC1P60V30EA
Box RGC1P60V42EA RGC1P60V62EA

Download the Carlo Gavazzi 1 Phase Solid State Relay PDF.

Carlo Gavazzi 3 Phase Solid State Relays – RGC1P..AA.., RGC1P..V..

  • 2-pole and 3-pole analog switching solid state contactors
  • Rated operational voltage: up to 600VAC
  • Rated operational current: up to 75AAC
  • Control inputs: 0-20mA, 4-20mA, 12-20mA, 0-5V, 1-5V, 0-10V
  • Local setting through external potentiometer
  • Switching modes: phase angle or distributed full cycles (1, 4 or 16 full cycles)
  • Soft start feature with selectable ramp time up to 5 seconds
  • Integrated varistor protection on output
  • Monitoring for SSR and load malfunction
  • EMR alarm output for alarm indication
  • 100kA short circuit current rating according to UL508
  • DIN or panel mount
  • RoHS compliant

RGC2P Selection Guide

Output Voltage Control Input Switching Mode Features External Supply Connection Control / Power Rated Operational Current @ 40°C
Ue (Proportional) Us 15AAC/pole
(1,800 A²s)
25AAC/pole
(1,800 A²s)
40AAC/pole
(6,600 A2s)
75AAC/pole
(15,000 A2s)
600VAC AA C1 Screw/Screw RGC2P60AA15C1 RGC2P60AA25C1
4-20mA Screw/Box RGC2P60AA40C1
I C1 Monitoring 24VDC/AC Box/Screw RGC2P60I25C1DM
0-20mA
4-20mA
12-20mA
RGC2P60I40C1DM RGC2P60I75C1DFM
90-250VAC Box/ Box RGC2P60I75C1AFM
C4 Monitoring 24VDC/AC Box/Screw RGC2P60I25C4DM
Box/Box RGC2P60I40C4DM RGC2P60I75C4DFM
90-250VAC Box/ Box RGC2P60I75C4AFM
V C1 Monitoring 24VDC/AC Box/Screw RGC2P60V25C1DM
0-10V
0-5V
1-5V
Box/Box RGC2P60V40C1DM RGC2P60V75C1DFM
90-250VAC Box/ Box RGC2P60V75C1AFM

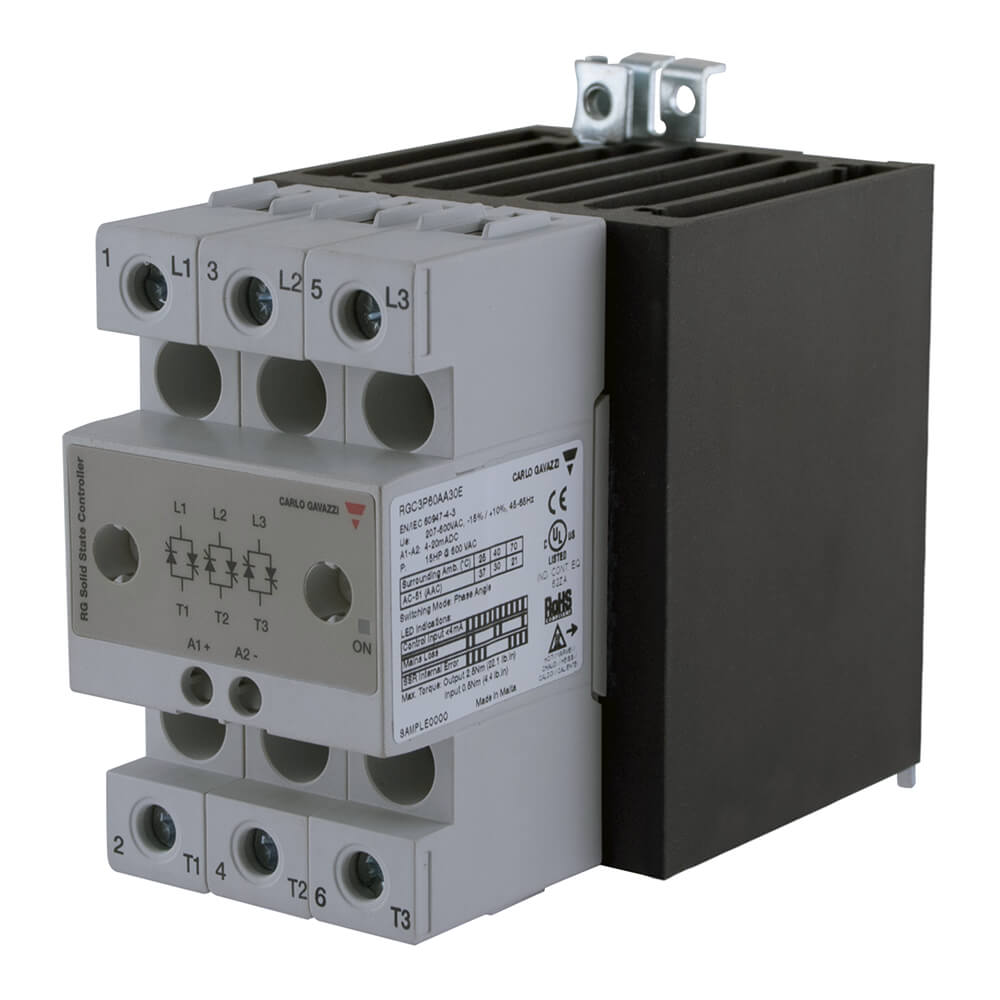

RGC3P Selection Guide

Output Voltage Control Input Switching Mode Features External Supply Connection Control / Power Rated Operational current at 40°C
Ue Proportional Us 20AAC/pole
(1,800 A2s)
30AAC/pole
(6,600 A2s)
65AAC/pole
(15,000 A2s)
600VAC AA E Screw/Screw RGC3P60AA20E
4-20mA Screw/Box RGC3P60AA30E
I E OTP 24VDC/AC Box/Screw RGC3P60I20EDP
0-20mA Box/Box RGC3P60I30EDP RGC3P60I65EDFP
4-20mA 90-250VAC Box/Screw
12-20mA Box/Box RGC3P60I30EAP RGC3P60I65EAFP
C1 Monitoring 24VDC/AC Box/Screw RGC3P60I20C1DM
Box/Box RGC3P60I30C1DM RGC3P60I65C1DFM
90-250VAC Box/Screw
Box/Box RGC3P60I30C1AM RGC3P60I65C1AFM
C4 Monitoring 24VDC/AC Box/Screw RGC3P60I20C4DM
Box/Box RGC3P60I30C4DM RGC3P60I65C4DFM
90-250VAC Box/Screw
Box/Box RGC3P60I30C4AM RGC3P60I65C4AFM
C16 Monitoring 24VDC/AC Box/Screw RGC3P60I20C16DM
Box/Box RGC3P60I30C16DM RGC3P60I65C16DFM
90-250VAC Box/Screw
Box/Box RGC3P60I30C16AM RGC3P60I65C16AFM
V E OTP 24VDC/AC Box/Screw RGC3P60V20EDP
0-10V Box/Box RGC3P60V30EDP RGC3P60V65EDFP
0-5V 90-250VAC Box/Screw
1-5V Box/Box RGC3P60V30EAP RGC3P60V65EAFP
C1 Monitoring 24VDC/AC Box/Screw RGC3P60V20C1DM
Box/Box RGC3P60V30C1DM RGC3P60V65C1DFM
90-250VAC Box/Screw
Box/Box RGC3P60V30C1AM RGC3P60V65C1AFM
C4 Monitoring 24VDC/AC Box/Screw RGC3P60V20C4DM
Box/Box RGC3P60V30C4DM RGC3P60V65C4DFM
90-250VAC Box/Screw
Box/Box RGC3P60V30C4AM RGC3P60V65C4AFM
C16 Monitoring 24VDC/AC Box/Screw RGC3P60V20C16DM
Box/Box RGC3P60V30C16DM RGC3P60V65C16DFM
90-250VAC Box/Screw
Box/Box RGC3P60V30C16AM RGC3P60V65C16AFM
24VDC/AC Box/Screw RGC3P60V20S16DM
Box/Box RGC3P60V30S16DM RGC3P60V65S16DFM

RGC3P Mode ‘S’ Selection Guide

Output Voltage Control Input Switching Mode Features External Supply Connection Control / Power Rated Operational Current @ 40C
Ue Us  20AAC/pole
(1,800 A2s)
 30AAC/pole
(6,600 A2s)
 65AAC/pole
(15,000 A2s)
 600VAC  V S  Monitoring  24VDC/AC  Box/Screw  RGC3P60V20SDM
 5-10V
Digital Input
 Box/Box  RGC3P60V30SDM  RGC3P60V65SDM

Download the Carlo Gavazzi 3 Phase Solid State Relay PDF.
