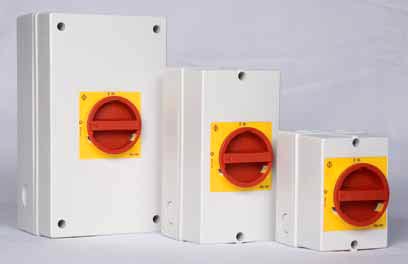

Kraus and Naimer Enclosed Switches

Kraus and Naimer Enclosed SwitchesA range of 3 and 4 pole enclosed Isolators suitable for use as Local Motor Isolators.

  • UV stabilised grey polycarbonate enclosure to IP67.
  • Padlockable red and yellow handle.  Earth terminal included.
  • Switch interlocked with lid to prevent opening in ‘on’ position.
  • Other switches eg, 6 pole, 8 pole with / without auxiliary contacts are available to order.
  • Enclosed Switch Ratings
  • Rated Operational Pwr AC23A, 3 Phase, 380-440V 50/60 Hz.  Expressed in (KW).
  • Category AC21A at max 690V.  Expressed in (A)
AC23A (KW) AC21A (A) Order Code No. 3 Pole
5.5 20A KG10 T203/GBA270 KS1V
7.5 25A KG20 T203/GBA270 KS1V
11 32A KG32 T203/GBA270 KS1V
15 40A KG41 T203/GBA270 KL1V
22 55A KG64 T203/GBA270 KL1V
30 80A KG80 T203/GBA901 KL
37 100A KG100 T203/GBA901 KL

Click for the Kraus and Naimer enclosed switches brochure.

AC23A (KW) AC21A (A) Order Code No. 4 Pole
5.5 20A KG10 T204/GBA290 KS1V
7.5 25A KG20 T204/GBA290 KS1V
11 32A KG32 T204/GBA290 KS1V
15 40A KG41 T204/GBA290 KL1V
22 55A KG64 T204/GBA290 KL1V
30 80A KG80 T204/GBA920 KL
37 100A KG100 T204/GBA920 KL
