ABB MCB’s S200 / S200M


ABB Low Voltage Strategic PartnerMCB´s protect installations against overload and short-circuit, warranting reliability and safety for operations.

The System pro M compact S 200 series satisfies most common requirements in terms of MCB´s, allowing the usage of them for domestic, industrial and commercial applications. All the MCB´s comply to IEC/EN 60898 and IEC/EN 60947-2 Standards.

Click to view the ordering information for the S 200 MCB and the S 200 M MCB or scroll down for more technical product information.

Miniature Circuit Breakers (MCBs)

  • For domestic / residential installations in emerging markets: typical breaking capacities 3 / 4.5 / 6 kA
    • Compact Home SH 200 T, SH 200 L, SH 200
  • For domestic or small commercial installations: up to 10 kA breaking capacity
    • specials S440, S950/970
    • proM compact S200, S200 M
  • For industrial installations up to 25 kA breaking capacity and specials
    • proM compact S200, S200M, S200P, S200U, S200UP
    • specials S280UC, S290
  • Special, selective, back-up MCB’s for for utilities, with high breaking capacity (25 kA) and full selectivity to downstream breakers, range S 700
  • For commercial and industrial applications with high breaking capacities and special features / accessories, ranges S200P, 290, S500, S610, S220, S800

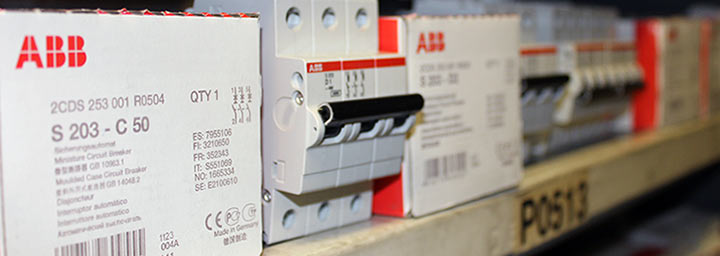

ABB MCB's held in stock

ABB MCB’s held in stock

S 200 and S 200 M MCB Features

  • Clear contact position indication in red/green (“real CPI”)
  • Unique, patented twin terminal with captive screws and an increased opening for cables up to max. 35 mm2, finger-proof (IP20)
  • Busbar slot in the back for best visibility during installation
  • High performance at an increased rated voltage for marine and industrial applications: 10 kA/15 kA at Ue = 440 V AC acc. to IEC/EN 60947-2
  • Individual product identification code
  • Approved acc. to IEC/EN 60898-1, IEC/EN 60947-2 and
  • UL 1077/CSA 22.2 No. 235 for global use

System Pro M S 200 / S 200 M Compact General Features and Breaking Capacities


S 200 S 200 M
Characteristics


B,C,D,K,Z B,C,D,K,Z
Rated current
(A)
0.5 ≤ ln ≥ 63 0.5 ≤ ln ≥ 63
Breaking Capacity
kA


Reference Standard
Nr. Poles Ue(V)

IEC 23-3/EN 60898 lcn
230/400 6 10
IEC/EN 60947-2 Icu 1, 1P+N 133 20 25*
Alternating current

230 10 15*


2, 3, 4 230 20 25*



400 10 15*


2, 3, 4 500




690


Ics 1, 1P+N 133 15 18.7*



230 7.5 11.2*


2, 3, 4 230 15**



400 7.5 11.2*


2, 3, 4 500




690

IEC / EN 60947-2 lcu 1, 1P+N 24 20
Direct Current

60 10
T=I/R≤5ms for all

125

series,

250

except S280 UC and
2 48 20
S800S-US

125 10
where T=I/R<15ms

250




500




600




800


Ics 1, 1P+N 24 20



60 10 10



125




250



2 48 20



125 10 10



250




500




600




800

UL 1077 / C22.2 Int. 1, 1P+N 120 10
No 235 cap. 277 6



2, 3, 4 240 10



480 Y/277 6
UL 1077 / C22.2 Int. 1, 1P+N 60 10
No 235 Direct current cap. 2, 3, 4 125 10
UL 489 / C22.2 Int. 1 240

No 5 cap.
277

Alternating current
2, 3, 4 240



480 Y/277


* < 50A
**Only up to 40A; 10kA up to 50/63A

ABB S 200 / S 200 M MCB Technical Data


S 200 S 200 M

General Data

Standards IEC/EN 60898-1, IEC/EN 60947-2UL 1077 IEC/EN 60898-1, IEC/EN 60947-2UL 1077, CSA 22.2 No. 235
Poles 1P, 2P, 3P, 4P, 1P+N, 3P+N
Tripping Characteristics B, C, D, K, Z
Rated current In 0.5 up to 63 A
Rated frequency 50/60 Hz
Rated insulation voltage Ui 250 V AC (phase to ground), 500 V AC (phase to phase)
Overvoltage Category III
Pollution Degree 3

IEC/EN 60898-1

Rated operational voltage Un 1P: 230/400 V AC; 1P+N: 230 V AC; 2P, 3P, 4P: 400 V AC; 3P+N: 400 V AC
Max. power frequency recovery voltage Umax 1P: 253 V AC; 1P+N: 253 V AC; 2P, 3P, 4P: 440 V AC; 3P+N: 440 V AC; 1P: 72 V DC; 2P: 125 V DC
Min. operating voltage 12 V AC, 12 V DC
Rated short-circuit capacity Icn 6 kA 10 kA
Energy limiting class (B, C up to 40 A) 3
Rated impulse withstand voltage Uimp (1.2/50 µs) 4 kV (test voltage 6.2 kV at sea level, 5 kV at 2,000 m)
Dielectric test voltage 2.0 kV (50/60 Hz, 1 min)
Reference temperature for tripping characteristics B, C, D: 30 °C
Electrical endurance In < 32 A: 20,000 ops. (AC), 1,000 ops. (DC); one cycle 2 s – ON, 13 s – OFF

In ≥ 32 A: 10,000 ops. (AC), 1,000 ops. (DC); one cycle 2 s – ON, 28 s – OFF

UL/CSA

Rated voltage 1P: 277 V AC, 60 V DC 2…4P: 480 Y/277 V AC, 110 V DC 1P: 277 V AC, 60 V DC2…4P: 480 Y/277 V AC, 125 V DC
Rated interrupting capacity 6 kA (AC), 10 kA (DC)
Application Suppl. prot. for general use. Application Codes: TC2, OL0, SC: U1
Electrical endurance 6,000 ops. (AC), 6,000 ops. (DC); one cycle 1 s – ON, 9 s – OFF

Mechanical data

Housing Insulation group II, RAL 7035 Insulation group I, RAL 7035
Toggle Insulation group II, black, sealable
Contact position indication Marking on toggle (I ON/0 OFF), Real CPI (red ON/green OFF)
Protection degree acc. to EN 60529 IP201), IP40 in enclosure with cover
Mechanical endurance 20,000 ops.
Shock resistance acc. to IEC/EN 60068-2-27 25 g, 2 shocks, 13 ms
Vibration resistance acc. to IEC/EN 60068-2-6 5 g, 20 cycles at 5…150…5 Hz with load 0.8 In
Environmental conditions acc. to IEC/EN 60068-2-30 28 cycles with 55 °C/90-96 % and 25 °C/95-100 %
Ambient temperature -25 … +55 °C
Storage temperature -40 … +70 °C

Installation

Terminal Failsafe bi-directional cylinder-lift terminal
Cross-section of conductors (top/bottom) solid, stranded: 35 mm2 / 35 mm2flexible: 25 mm2 / 25 mm2

14 – 4 AWG 3)
Cross-section of busbars (top/bottom) 10 mm2 / 10 mm2

14 – 8 AWG2)
Torque 2.8 Nm

18 in-Ibs.
Screwdriver No. 2 Pozidrive
Mounting On DIN rail 35 mm acc. to EN 60715 by fast clip
Mounting position any
Supply optional

Dimensions and weight



Mounting dimensions acc. to DIN 43880 Mounting dimension 1
Pole dimensions (H x D x W) 88 x 69 x 17.5
Pole weight approx. 115 g

Combination with auxiliary elements

Auxiliary contact Yes
Signal/auxiliary contact Yes
Shunt trip Yes
Undervoltage release Yes
Motor Operating Device Yes

1) Also fulfilling the requirements acc. to the protection degree IPXXB

2) AWG 18 – 8 acc. to UL 486A – 486B

3) AWG 18 – 4 acc. to UL 486A – 486B

Click to view the ordering information for the S 200 MCB and the S 200 M MCB
