ABB System proM Modular Devices

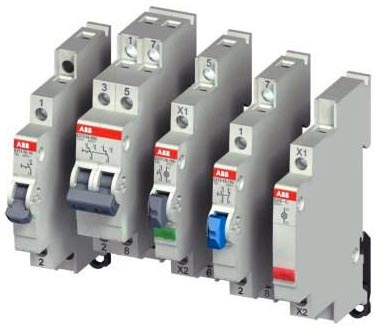

ABB Modular DIN Rail ComponentsPushbuttons and indicator lamps E220 series – ratings to 16A

Application

The pushbuttons are used for remote control in every kind of electrical installation (public, tertiary and industrial).  The indicator lamps signal any event in every kind of electric installation (public, tertiary, industrial).

Technical Data

Rated voltage Un (V) a.c. 250
Rated voltage In (A) 16
Rated frequency (Hz) 50/60
Power consumption (W) 0.96 … 1.50
Modules (No) 1
Standards
IEC / EN 60669 – 1


IEC / EN 60947-5-1

E225 Pushbuttons

Description Order Code
Grey pushbutton with contacts 1NO + 1NC E215-16-11B
Red pushbutton with contacts 1NO + 1NC E215-16-11C
Green pushbutton with contacts 1NO + 1NC E215-16-11D
Yellow pushbutton with contacts 1NO + 1NC E215-16-11E
Black pushbutton with contacts 1NO + 1NC E215-16-11F
Blue pushbutton with contacts 1NO + 1NC E215-16-11G

E227 Illuminated pushbuttons

Description Order Code
Transparent illuminated pushbutton with contacts 1NO + 1NC E217-16-10B
Red illuminated pushbutton with contacts 1NO + 1NC E217-16-10C
Green illuminated pushbutton with contacts 1NO + 1NC E217-16-10D
Yellow illuminated pushbutton with contacts 1NO + 1NC E217-16-10E
Blue illuminated pushbutton with contacts 1NO + 1NC E217-16-10G

E229 Indicator Lamps

Description Order Code
Transparent indicator lamp with 220V a.c. bulb E219-B
Red indicator lamp with 220V a.c. bulb E219-C
Green indicator lamp with 220V a.c. bulb E219-D
Yellow indicator lamp with 220V a.c. bulb E219-E
Blue indicator lamp with 220V a.c. bulb E219-G
