Modular Fuse Carriers and Cylindrical Fuses


Bussmann Cyclindrical Fuses

CSE stock the full range of Bussman 10x38mm fuseholders for use with 10×38 industrial cylindrical fuses.

Also available to order are 8×32, 14×51 and 22×58

400V ac minimum voltage

IEC 947-1 & 947-3 compliant.

35mm DIN rail or panel mounted

Modular Fuse Holders for IEC Industrial Cylindrical Fuses.
Part Ref Poles Rated Voltage Rated Current Fuselink
CH101D 1 500v 32amp 10 x 38  Bussmann Fuse Carrier
CH102D 2 500v 32amp 10 x 38
CH103D 3 500v 32amp 10 x 38
CH141D 1 500v 50amp 14 x 51
CH142D 2 500v 50amp 14 x 51
CH143D 3 500v 50amp 14 x 51
CH221D 1 500v 125amp 22 x 58
CH222D 2 500v 125amp 22 x 58
CH223D 3 500v 125amp 22 x 58

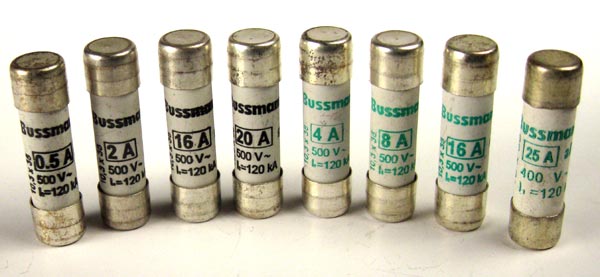

10 x 38 Fuses gL/gG
g L fuse link designed for slow/quick fusing: slow for small overcurrents, quick for larger overcurrents (short circuits), suitable for most types of installations.Rated at 500V up to 25amp; 400V for 32amp

Part Ref Description
 C10G Fuse C10G/0.5 10 x 38 0.5 amp
C10G/1 10 x 38  1 amp
C10G/2 10 x 38  2 amp
C10G/4 10 x 38  4 amp
C10G/6 10 x 38  6 amp
C10G/8 10 x 38  8 amp
C10G/10 10 x 38 10 amp
C10G/12 10 x 38 12 amp
C10G/16 10 x 38 16 amp
C10G/20 10 x 38 20 amp
C10G/25 10 x 38 25 amp
C10G/32 10 x 38 32 amp

10 x 38 Fuses aM

Cylindrical a M specifically used for the protection of motors against short circuit.Rated at 500V up to 20amp; 400V for 25 – 32amp

Part Ref Description
aM Bussmann Fuses C10M/1 10 x 38  1 amp
C10M/2 10 x 38  2 amp
C10M/4 10 x 38  4 amp
C10M/6 10 x 38  6 amp
C10M/8 10 x 38  8 amp
C10M/10 10 x 38 10 amp
C10M/12 10 x 38 12 amp
C10M/16 10 x 38 16 amp
C10M/20 10 x 38 20 amp
C10M/25 10 x 38 25 amp
C10M/32 10 x 38 32 amp

Approved to IEC 269 and VDE 0636. Dimensions in accordance with DIN 43620.

14 x 51 & 22 x 58 gL and aM size fuses also available from stock.  Please call or e-mail our sales for prices.
