Danfoss AV210 Angle Seat Valves

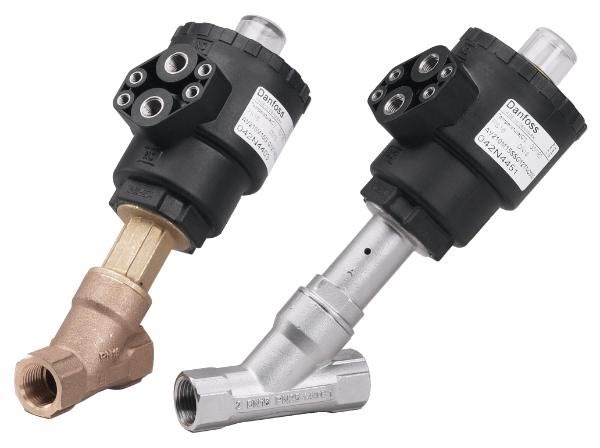

Danfoss AV210 Angle Seat ValveThe Danfoss AV210 is an externally operated angle seat valve for use in robust industrial applications. The valve can operate at very high medium temperatures and viscosities, and is insensitive to dirt particles in the medium; thus, it is often called a “trouble-shooter” valve. The valve is available in gun metal (RG5/bronze) and stainless steel (AISI316).

  • High capacity basic program
  • 2/2-way
  • Angle-seated piston
  • NC version: Both closing against and withflow direction
  • NO version: Closing against the flow direction
  • Bronze or stainless steel valve body

Technical Data

Design : Piston operated; angle seated
Ambient temperature: -30oC to + 60oC
Media temperature: -30oC to + 180oC
Viscosity: Max. 600 cSt
Materials: Valve body:Gun metal / Brass or 316 stainless steel.
Spindle. 316 Stainless Steel
Spindle Gasket : PTFE:_PTFE/
Gasket : Graphite
Valve Plate Unit : PTFE
Control Head : PA66

Danfoss AV210 Acrobat.
