Danfoss MBT 5252 Temperature sensors

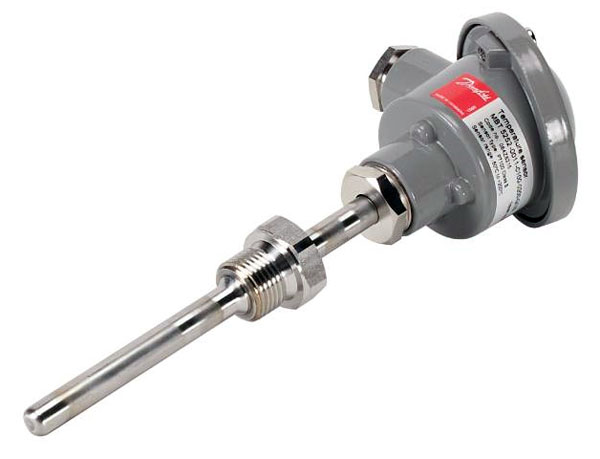

Danfoss MBT 5252The Danfoss MBT 5252 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications.

This temperature sensor is based on a standardised Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5252 can be delivered with NTC/PTC elements on request.

If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. In the low temperature version (-50 °C to +200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations.

  • All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5252 is equipped with a B-head as standard, but can be delivered with B-mini or B-head with screw cap on request. For gaseous or liquid media, e.g. air, gas, vapour, water or oil
  • Up to +400° C media temperatures
  • Available with built-in transmitter
  • Available with all relevant marine approvals
  • Click to view the Danfoss MBT 5250 Technical PDF Brochure

Technical Data

Measuring range : -50oC to 200oC  (400oC on request)
Max ambient temperature : Max 85oC (depending on media temperature)
Enclosure : IP65
Cable Entry : Pg16
Temperature transmitter : MBT 9110: Supply voltage 8 to 35 V d.c. Output : 4 to 20mA
Materials : Process connection, Protection tube, extension tube: AISI 316 Ti
Union nut : Nickel plated brass Connection head : Die cast aluminium
Tolerance : EN60751 Class B ±(0.3+0.005 x t)
Response times (t0.9: 42 sec. (water at 0.2 m/s). With heat conductive compound, 041E0110: 14 secs
Code No. Measuring range oC Insertion length Electrical connection Process connection Protection Tube High temperature
084Z8210 -50 to 200 50 mm 2 wire, 3 terminals G 1/2A ø10 x 2 mm ø11 x 1 mm
084Z8211 -50 to 200 100 mm 2 wire, 3 terminals G 1/2A ø10 x 2 mm ø11 x 1 mm
084Z8212 -50 to 200 150 mm 2 wire, 3 terminals G 1/2A ø10 x 2 mm ø11 x 1 mm
084Z8213 -50 to 200 200 mm 2 wire, 3 terminals G 1/2A ø10 x 2 mm ø11 x 1 mm
084Z8230 -50 to 200 50 mm 2 wire, 3 terminals G 3/4A ø10 x 2 mm ø11 x 1 mm
084Z6164 -50 to 200 80 mm 2 wire, 3 terminals G 3/4A ø10 x 2 mm ø11 x 1 mm
084Z8231 -50 to 200 100 mm 2 wire, 3 terminals G 3/4A ø10 x 2 mm ø11 x 1 mm
