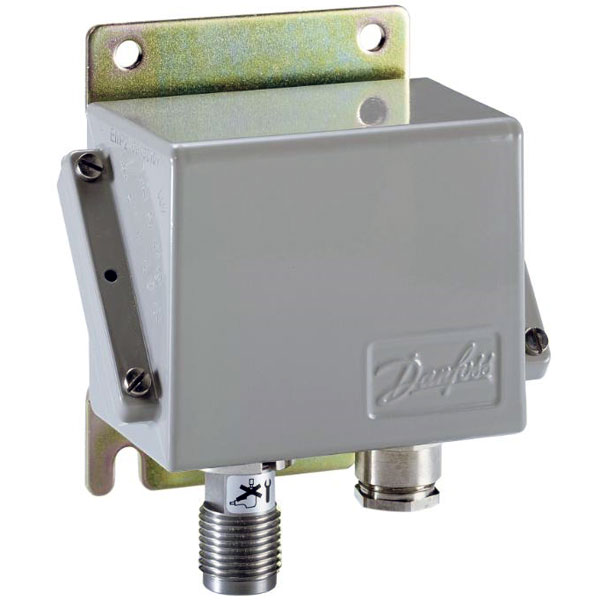

Danfoss EMP 2 Pressure Transmitter

Danfoss EMP 2 Pressure TransmitterThe ship approved pressure transmitter EMP 2 is designed for use in almost all marine and industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions.

The pressure transmitter programme in box design is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS, KRS requirements, and covers a 4-20 mA output signal, gauge (relative) versions, measuring ranges from 0-1 to 0-400 bar, zero point and span adjustment, Pg 13,5 cable entry and different pressure connections.

  • Robust construction enables the pressure transmitter to meet the strictest requirements. 4 – 20 mA output signal
  • Operating temperature -10 to 70° C
  • Measuring range 0 – 400 bar
  • Pressure connections G ¼, G ½A standard, G 3/8 A mano
  • With zero point and span adjustment
  • Available with all relevant marine approvals
  • For use in harsh industrial / marine environments
  • Click for Danfoss EMP 2 Pressure Transmitter PDF Technical Brochure

Technical Data

Ambient temperature : -50oC to 70oC
Enclosure : IP66; Manual reset version : IP54
Electrical connection : Two Pg13.5 (cable diameters 6 to 14mm)
Contact system : SPDT, interchangeable to other types
Contact load : AC-1 Ohmic : 10A, 440V
AC-3 (motor) : 4A, 400V
AC-14/15 (coil / transformer): 3A, 400V
DC-13/14: 12W, 230V
Code No Weight Kg Operating pressure relative (gauge) pe(bar) Connection Test pressure Pe (Bar) Min. bursting pressure Pe (bar)
084G2106 1.06 0 to 4 G1/2″ A male & G 1/4″ A female 8 200
084G2107 1.06 0 to 6 G 1/2″ A male & G 1/4″ A female 18 400
084G2109 1.12 0 to 10 G 1/2″ A male & G 1/4″ female 20 400
