Danfoss MBT 3260 Temperature Sensor

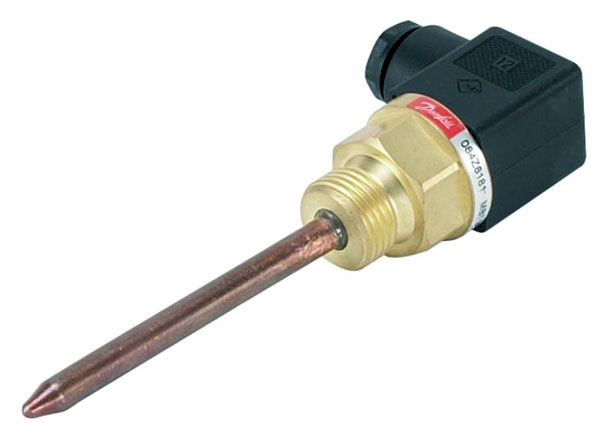

Danfoss MBT 3260 Temperature sensorsThe Danfoss MBT 3260 is a light duty temperature sensor that can be used for measuring and regulation in piping and ventilation systems and other light industrial applications.

Due to the fact that the protection tube is made of copper the MBT 3260 has a very short response time of down to 0.5 = 2 sec. in water. This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement.

Parts in contact with the media are made of copper or brass.

  • The MBT 3260 is delivered with a DIN 43650 plug as standard. Pt100 or Pt1000 resistance element
  • Temperature range -50 to 120° C
  • Copper tube
  • Short response times
  • G½A brass process connection
  • Gold plated connectors
  • Fixed measuring insert
  • Multiple insertion lengths: 50, 100 or 250 mm
  • Click for the Danfoss MBT 3260 Technical PDF Brochure

Technical Data

Measuring range : -50oC to 120oC
Max ambient temperature : 120oC
Enclosure : IP54
Cable Entry : Pg9
Materials : Protection lube – Copper
Process connection – Brass
Response times (t0.9) : 2.5 sec. (water at 0.2m/s)
Code No. Insertion Length (mm) Resistance value
084Z6055 50 PT 100
084Z6056 50 PT 1000
084Z8180 100 PT1000
084Z8181 100 PT100
084Z8183 250 PT100
