Danfoss MBT 9110 Temperature transmitters

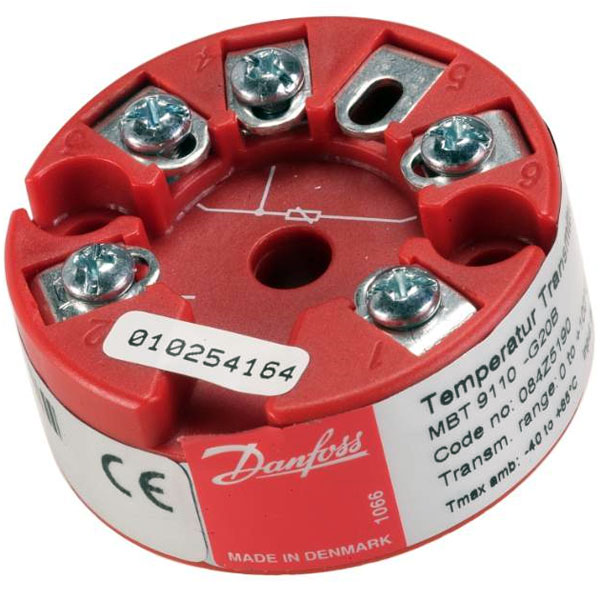

MBT 9110 Temperature TransmittersThe MBT 9110 temperature transmitter can be used for converting the Pt100 ohm signal or the thermo couple mV signal to a 4 to 20 mA signal. The MBT 9110 can be used together with all types of MBT sensors, Pt100 as well as Thermo couple.

MBT 9110 transmitters in the standard program are delivered in an enclosure, but are also used as an integrated part of certain temperature sensors.

  • The transmitter is available as standard or galvanic isolated with or without EEx approval. 2, 3 or 4-wire universal transmitter for industrial and marine applications
  • Pt100 or thermocouple input
  • 4 – 20 mA standard output signal – with or without galvanic isolation
  • Available with EEX ia IIC T4 / T6 approvals
  • For mounting in DIN B connection head or in a separate enclosure
  • Advanced sensor fault indication
  • Temperature linearized
  • Available with all relevant marine approvals
  • Click for the Danfoss MBT 9110 Technical PDF Brochure

Technical Data

Max ambient temperature : -40 to +85oC
Supply voltage : 8-35 V d.c.
Output : 4-20mA current loop
Primary accuracy (Pt100):
<± 0.3°C;Linearity Error: <0.1%Temp. coefficient: <± 0.01% FS/o Kamb
Response times : Programmable 1-60 sec 1 sec is standard
Enclosure : IP54
Warm up time : 5 mins
Update times: 44 0ms
Code No. Type Temperature setting °C Sensor element Connection Wire
084Z8115 Standard in separated enclosure -50 to 50 PT 100 3
084Z8117 Standard in separated enclosure 0 to 100 PT 100 3
084Z8118 Standard in separated enclosure -10 to 150 PT 100 3
084Z8119 Standard in separated enclosure 0 to 250 PT 100 3
084Z8120 Standard in separated enclosure 0 to 400 PT 100 3
084Z8121 Standard in separated enclosure 0 to 150 PT 100 3
084Z8125 Galv. Iso. in separated enclosure -10 to 150 PT100 3
084Z8129 Galv. Iso. in separated enclosure 0 to 600 Thermocouple type k 2
084Z8130 Galv. Iso. in separated enclosure 0 to 800 Thermocouple type k 2
