Danfoss EV215B / EV225B 3-25 Steam Solenoid Valve

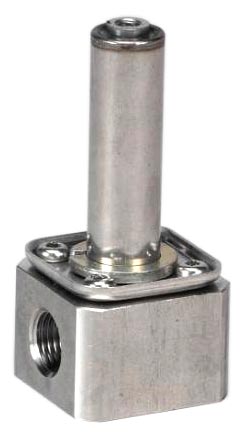

Danfoss EV215B Steam Solenoid Valve

Danfoss EV215B Steam Solenoid Valve

2/2 Way direct and servo operated steam valves

The Danfoss EV215B is a direct-operated 2/2-way solenoid valve for use in steam application.

The design is based on the usual Danfoss concept for direct operated high performance valves, but with a PTFE valve plate, ensuring high reliable function even in connection with contaminated steam.

Valve body in stainless steel for ensuring a long life even in connection with aggressive steam media. Coil type BR can be used on EV215B

  • 2/2-way
  • Specifically designed for steam applications
  • Direct-operated
  • DN 3
  • G 1/4″
  • Ambient temperature: +40°C
  • Stainless steel valve body
  • NC version only
  • ISO 228/1 or NPT (EVSIS 3) thread connection
  • Click for the Danfoss EV215B and Danfoss EV225B Steam Valve Literature
Danfoss EV225B Steam Solenoid Valve

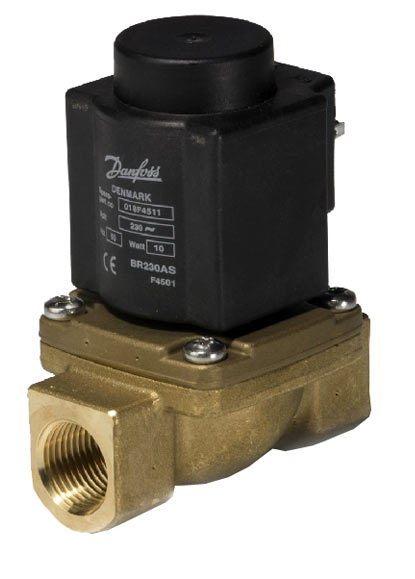

Danfoss EV225B Steam Solenoid Valve (image shown with coil)

Technical Data

Installation : Vertical solenoid system is recommended
Pressure range : Max. 10 bar
Ambient temperature: Max 40oC at a medium temperature of 185o
Materials: Valve body : EV215B : Stainless steel, EV225B:DZR Brass
Internals : Stainless steel
Diaphragm: PTFE
Valve plate (EV215B) PTFE
Valve seat: Stainless steel
The EV215B SS valve is direct operated and has neither a diaphragm or PTFE valve seat like the ohters
External gasket PTFE
