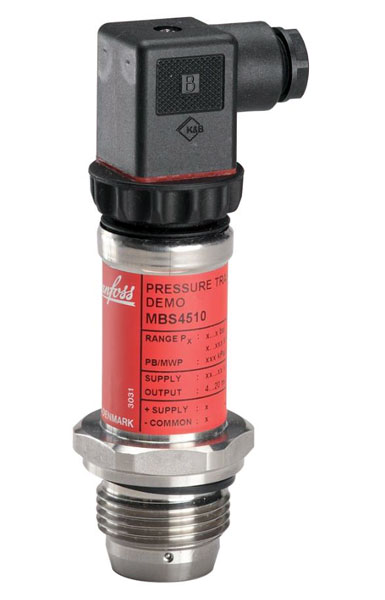

MBS 4510, Pressure transmitters with flush diaphragm and adjustable zero and span

Danfoss Danfoss MBS 4510MBS 4510, Pressure transmitters with flush diaphragm and adjustable zero and span

The high accuracy flush diaphragm pressure transmitter MBS 4510 is designed for use in non-uniform, high viscous or crystallizing media within industry, food and beverage, and offers a reliable pressure measurement, even under harsh environmental conditions.

The pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-250 mbar til 0-25 bar, zero point and span adjustment, plug connection and a G1A conic pressure connection with a flush mounted diaphragm.

Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.

  • 4 – 20 mA output signal
  • Operating temperature -40 to 85° C
  • Measuring ranges 0 – 250 mbar to 0 – 25 bar
  • Available with many different pressure connections
  • With zero point and span adjustment
  • With flush diaphragm
  • For use in food and beverage industry as well as industrial applications with aggressive, heterogeneous and highly viscous media
  • Click for a Danfoss MBS 4510 technical brochure

Technical Data

Media: Air, gas, liquid
Operating temperature: -10°C to 85°C
Wetted parts: AISI 316L (DIN 17440 – 1.4404)
Enclosure: Plug version : IP65, Cable version : IP67
Electrical connection: DIN 43650 plug Pg9
Accuracy: ≤± 0.2% FS (typ.), ≤± 0.5% FS (max.)
Supply voltage: 10 to 30V d.c. polarity protected
Output signal: 4 to 20mA
Process connection: G1A cone to ISO 228 with DIN 3869-33 NBR gasket
Code No Weight Kg Pressure range pe Max. operation pressure Max burst pressure
060G2424 0.39 0 to 4 bar 8 bar 50 bar
