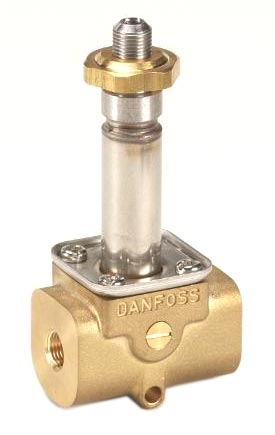

Danfoss 3/2 Way direct operated valves
- For neutral liquids and gases such as water, oil and compressed air
- Robust design
- Available as normally open or normally closed
- Available with manual override
- Valve sizes from 1.5 to 3.5mm
- Also available with flange (sub base) connection
- NC version is also available in stainless steel
- For further information, call Ray – CSE’s Danfoss Consultant on 023 8025 5757.
- View Danfoss EV310B Technical Brochure
Technical Data
| Pressure range : |
0-20 bar |
| Ambient temperature : |
Max 40oC |
| Media temperature : |
-10 to +100oC |
| Materials : |
Valve body : |
Brass |
|
O rings |
FKM |
|
Valve plate : |
FKM |
| Coil enclosure : |
Up to IP 65 |
|
Ordering – normally closed valves without manual opening
| End connection |
Kv Value (m3/h) |
Orifice (mm) |
Seals* |
Type Designation |
Code No. |
Differential pressure (bar) based on coil type BA max |
| Main type |
Specification |
without coil |
min |
9 W a.c. |
15 W d.c. |
| G 1/4 |
0.08 |
1.5 |
FKM |
EV310B1.5B |
G14FNC000 |
032U4903 |
0 |
20 |
20 |
| G 1/4 |
0.15 |
2.0 |
FKM |
EV310B2.0B |
G14FNC000 |
032U4904 |
0 |
16 |
16 |
| G 1/4 |
0.30 |
3.0 |
FKM |
EV310B3.0B |
G14FNC000 |
032U4905 |
0 |
7 |
7 |
| G 1/4 |
0.40 |
3.5 |
FKM |
EV310B3.5B |
G14FNC000 |
032U4906 |
0 |
5 |
5 |
