ABB Manual Motor Starters MS132

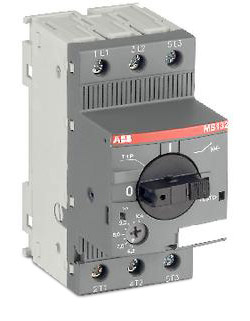

ABB Manual Motor Starter MS132With Thermal and Electromagnetic Protection

Application

  • Short Circuit Protection
  • Overload Protection
  • Trip class 10
  • Phase loss sensitivity
  • ON/OFF switching functionality
  • Disconnecting feature
  • Suitable for three-and single phase applications

Description

  • 45 mm width
  • Lockable handle
  • Clear position of hte handle ON/OFF/TRIP
  • Magnetic tripping optically signalled in the front
  • One range of common accessories for MS116 & MS132

Ordering Details

Rated Power 400 V AC-3 Setting Ranges Type Order Code Short-Circuit breaking Ics
at 400 V AC
Rated Instantaneous
short circuit current setting
kW A … A

kA A
0.03 0.10 … 0.16 MS132-0.16 1SAM 350 000 R1001 100 1.25 … 1.87
0.06 0.16 … 0.25 MS132-0.25 1SAM 350 000 R1002 100 1.95 … 2.92
0.09 0.25 … 0.40 MS132-0.4 1SAM 350 000 R1003 100 3.12 … 4.68
0.12 0.40 … 0.63 MS132-0.63 1SAM 350 000 R1004 100 4.91 … 7.37
0.25 0.63 … 1.00 MS132-1.0 1SAM 350 000 R1005 100 9.20 … 13.8
0.55 1.00 … 1.60 MS132-1.6 1SAM 350 000 R1006 100 14.7 … 22.1
0.75 1.60 … 2.50 MS132-2.5 1SAM 350 000 R1007 100 23.0 … 34.5
1.5 2.50 … 4.00 MS132-4.0 1SAM 350 000 R1008 100 40.0 … 60.0
2.2 4.00 … 6.30 MS132-6.3 1SAM 350 000 R1009 100 63.0 … 94.5
4 6.30 … 10.0 MS132-10 1SAM 350 000 R1010 100 120 … 180
5.5 8.00 … 12.0 MS132-12 1SAM 350 000 R1012 100 144 … 216
7.5 10.0 … 16.0 MS132-16 1SAM 350 000 R1011 100 192 … 288
9 16.0 … 20.0 MS132-20 1SAM 350 000 R1013 100 240 … 360
12.5 20.0 … 25.0 MS132-25 1SAM 350 000 R1014 50 300 … 450
15 25.0 … 32.0 MS132-32 1SAM 350 000 R1015 25 384 … 576



Technical Data


MS132
Manual Motor Starter Types up to 10 A up to 16 A up to 32 A
Standards Conformity to standards


IEC/EN60947-1, IEC/EN60947-4-1, UL 508, CSA C22.2 No. 14

Phase loss sensitivity (acc. to IEC/EN 60947-4-1) Yes


Disconnecting feature (acc. to IEC/EN 60947-2) Yes

General Data Mounting Position


Position 1-6


Degree of protection (acc. to IEC 60947-1) IP 20


Mechancial durability


100000 cycles


Electrical durability


50000 cycles


Utilisation category


A

IEC Main Circuit Rated operational voltage Ue
AC 690 V AC


(acc. to IEC / EN 60947-1)
DC 250 V DC


Rated operational current Ie

up to 10 A up to 16 A up to 32 A

Rated operational current DC-5 Ie





3 conducting paths in series up to 250 V

see”rated operational current”

Rated service short-circuit breaking capacity DC Ics 10 kA


3 conducting paths in series up to 250 V





Rated frequency


DC, 50 / 60 Hz


Trip class


10 (10A for MS132-0.16) 10 10
Isolation Data Rated impulse withstand voltage Uimp

6 kV

(acc. to IEC/EN 60947-1) Rated insulation Ui


690 V

Environmental data Ambient air temperature






Operation Open – compensated -25 … +60 oC



Open

-25 … + 70oC



Enclosed (IB132)

0 … +40oC


Storage


-50 … +80oC


Vibration (acc. to IEC/EN 60068-2-6) 5g / 3-150 Hz


Shock (acc. to IEC/EN 60068-2-27) 25 g / 11ms

Connecting Capacity Rigid 1 or 2 x 1 … 4 mm2 1 … 4 mm2 2.5 … 6 mm2

Flexible with ferrule 1 or 2 x 0.72 … 2.5mm2 0.75 … 2.5mm2 1 … 6 mm2

Flexible without ferrule 1 or 2 x 0.75 … 2.5mm2 0.75 … 2.5mm2 1 … 6 mm2

Stripping Length


9mm 10mm 10mm

Tightening Torque


0.8 … 1.2 Nm 1.5 Nm 2.0 Nm
UL/CSA






Main Circuit Max. Operational Voltage


600 V AC


Short Circuit Rating 480 V AC

30 kA



600 V AC

18 kA

Connecting Capacity Stranded 1 or 2 x AWG 16 … 12 AWG 16 … 12 AWG 12 … 8
Flexible with ferrule 1 or 2 x AWG 16 … 12 AWG 16 … 12 AWG 12 … 8

Stripping length


9mm 10mm 10mm

Tightening torque


10 … 12 lb.in 14 lb.in 18 lb.in
