Eaton Moeller Mini Contactors

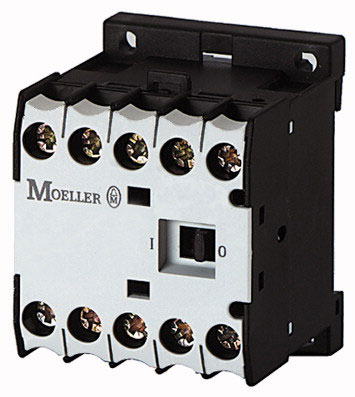

Mini Contactor

Contacts For Use With Part Number
AC Coil 1 N/O
DILEM-10(24V50HZ)
Moeller Mini Contactors 1 N/O
DILEM-10(110V50HZ)
1 N/O
DILEM-10(230V50HZ)
1 N/O
DILEM-10(400V50HZ)
1 N/C
DILEM-01(24V50HZ)
1 N/C
DILEM-01(110V50HZ)
1 N/C
DILEM-01(230V50HZ)
1 N/C
DILEM-01(400V50HZ)



DC Coil 1 N/O
DILEM-10-G(24VDC)

1 N/C
DILEM-01-G(24VDC)

Auxiliary Contact Modules

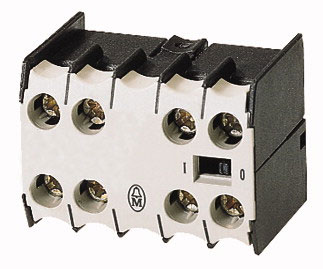

Top Mounting 1 N/O + 1 N/C DILEM 11DILEM
Moeller Auxiliary Contact Modules 2 N/) + 2 N/C DILEM 22DILEM

Accessories




Varistor Suppressor
DILEM AC, 24-48 V VGDILE48
Moeller Varistor Supressor
DILEM AC, 110-250 V VGDILE250

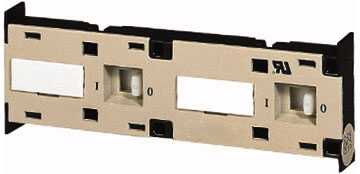

Mechanical Interlock




Moeller Mechanical Interlock
DILEM MVDILE

RC Supressor




Moeller RC Supressor
DILEM AC, 24 – 48 V RCDILE48

DILEM AC, 110 – 250 V RCDILE250

Paralleling Links (pack of 2)




Moeller Paralleling Links
DILEM-10 P1DILEM

Cross Reference for New Contactors


DIL Range Established System xStart DILM range, new system
Rating AC-3
400 V
Basic Units Auxiliary Contacts Rated Operational Current
Ie AC-3 400V
Conventional Thermal Current
Ith=Ie, AC-1 40 oC
Basic Units Auxiliary Contacts Rated Operational current Ie, AC-3
400 V
Conventional thermal current
Ith=Ie, AC-1 40 oC
kW

A A

A A
3 DILM7-10 1 N/O 7 22

DILM7-01 1 N/C 7 22
4 DIL00M-10 1 N/O 8.8 22 DILM9-10 1 N/O 9 22

DIL00M-01 1 N/C 8.8 22 DILM9-01 1 N/C 9 22
5.5 DIL00AM-10 1 N/O 12 22 DILM12-10 1 N/O 12 22

DIL00AM-01 1 N/C 12 22 DILM12-01 1 N/C 12 22
7.5 DIL0M 0 15.5 38 DILM17-10 1 N/O 18 40





DILM17-01 1 N/C 18 40
11 DIL0AM 0 22.5 38 DILM25-10 1 N/O 25 45

DILM25-01 1 N/C 25 45
15 DIL1M 0 30 60 DILM32-10 1 N/O 32 45

DILM32-01 1 N/C 32 45
18.5 DIL1AM 0 36 60 DILM40 0 40 60
22 DIL2M 0 43 98 DILM50 0 50 80
30 DIL2AM 0 58 98 DILM65 0 65 98
37 DIL3M80 0 72 114 DILM80 0 80 110
45 DIL3AM85 0 85 114 DILM95 0 95 130
55 DIL4M115 0 104 182 DILM115 0 115 160
75 DIL4AM145 0 142 182 DILM150 0 150 190
90 DILM170 0 170 225
