ABB PSE Softstarter

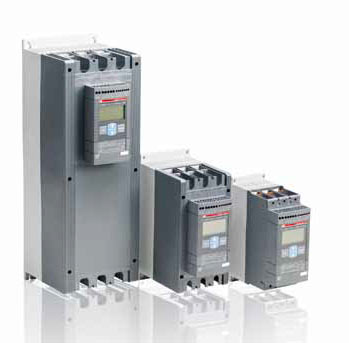

ABB PSE Softstarter RangeThe Efficient Range

The PSE softstarter range is the world’s first compact softstarters with Torque Control. This makes the PSE range an excellent choice for pumping application where water hammering normally is a big problem. With its compact design and advanced functionality, the PSE is also a very efficient solution for other common applications such as compressors and fans.

The PSE Softstarter can be selected according to the rated motor power in normal duty applications like pumps, compressors, elevators, escalators, short conveyor belts and bow thrusters.

ABB PSE Softstarter Features

  • Wide rated operational voltage 208 … 600 V AC
  • Wide rated control supply voltage 100 … 250 V, 50/60 Hz
  • Rated operational current 18 to 370 A
  • Wide ambient temperature range, -25 to +60 ºC
  • Coated circuit boards for reliable operation in harsh environment
  • Built-in by-pass on all sizes, saving energy and reducing
    installation time
  • User friendly HMI with illuminated language neutral display and four button keypad
  • Optional external keypad, IP66
  • Torque control for excellent control of pumps
  • Current limit, adjustable between 1.5 … 7 x Ie
  • Motor overload protection with classes 10A, 10, 20 and 30
  • Motor underload protection to detect pumps running dry
  • Locked rotor protection, detecting jammed pumps
  • Kick start to start jammed pumps or conveyor belts
  • Analog output showing operational current, 4 … 20 mA
  • Optional fieldbus communication using Profibus, Modbus, Devicenet or CANopen
  • Sophisticated algorithm eliminating the DC-component

Torque control

The most important function when stopping pumps is torque control. Since the PSE softstarter is optimized for controlling pumps, this feature is a must.

Built-in by-pass for energy saving

Using by-pass after reaching full voltage will greatly reduce the power loss and thereby save energy. In the PSE softstarter range, the by-pass is built-in on all sizes, which will give the most compact starting solution and reduce the need for wiring during installation.

Coated circuit boards

All circuit boards in the new PSE softstarter have a protective coating to ensure a reliable operation even in tough environments like waste water plants, where corrosive gases and acids may exist.

Motor protection

The PSE softstarter is equipped with built-in electronic overload protection, protecting the motor from overheating. Since no additional overload device is needed, our efficient design saves both space, installation time, and ultimately money.

Analogue output

The analogue output terminals can be connected to an analogue current meter to show the current during operation and thereby eliminating the need for an additional current transformer. The analogue output signal can also be used as an analogue input to a PLC.

Display and keypad

The set-up of the PSE softstarter is done using the four button keypad and the illuminated display, providing a quick and easy set-up. While operating, the display will also provide important status information such as current and voltage.

External keypad

As an option the PSE softstarter can be equipped with an external keypad for easy set-up and monitoring of the unit without opening the enclosure door. The keypad can also be used to copy parameters between different softstarters.


ABB PSE Ordering Information

Normal starts, class 10, In-Line

PSE18 … PSE370
Rated operational voltage, Ue, 208 – 600 V AC
Rated control supply voltage, Us, 100 – 250 V AC, 50/60 Hz
Motor power
230 V Pe
kW
400 V Pe
kW
500 V Pe
kW
IEC
Max rated operational current Ie
A
Type Order code Weight kg
1 piece
4 7.5 11 18 PSE18-600-70 1SFA897 101 R7000 2.4
5.5 11 15 25 PSE25-600-70 1SFA897 102 R7000 2.4
7.5 15 18.5 30 PSE30-600-70 1SFA897 103 R7000 2.4
9 18.5 22 3 PSE37-600-70 1SFA897 104 R7000 2.4
11 22 30 45 PSE45-600-70 1SFA897 105 R7000 2.4
15 30 37 60 PSE60-600-70 1SFA897 106 R7000 2.4
18.5 37 45 72 PSE72-600-70 1SFA897 107 R7000 2.5
22 45 55 85 PSE85-600-70 1SFA897 108 R7000 2.5
30 55 75 106 PSE105-600-70 1SFA897 109 R7000 2.5
40 75 90 143 PSE142-600-70 1SFA897 110 R7000 4.2
45 90 110 171 PSE170-600-70 1SFA897 111 R7000 4.2
59 110 132 210 PSE210-600-70 1SFA897 112 R7000 12.4
75 132 160 250 PSE250-600-70 1SFA897 113 R7000 13.9
90 160 200 300 PSE300-600-70 1SFA897 114 R7000 13.9
110 200 250 370 PSE370-600-70 1SFA897 115 R7000 13.9



Heavy Duty Starts, Class 30, In-Line,

PSE18 … PSE370
Rated operational voltage, Ue, 208 – 600 V AC
Rated control supply voltage, Us, 100 – 250 V AC, 50/60 Hz
Motor power
230 V Pe
kW
400 V Pe
kW
500 V Pe
kW
IEC Max rated operational current Ie
A
Type Order code Weight kg
1 piece
3 5.5 7.5 12 PSE18-600-70 1SFA897 101 R7000 2.4
4 7.5 11 18 PSE25-600-70 1SFA897 102 R7000 2.4
5.5 11 15 25 PSE30-600-70 1SFA897 103 R7000 2.4
7.5 15 18.5 30 PSE37-600-70 1SFA897 104 R7000 2.4
9 18.5 22 37 PSE45-600-70 1SFA897 105 R7000 2.4
11 22 30 45 PSE60-600-70 1SFA897 106 R7000 2.4
15 30 37 60 PSE72-600-70 1SFA897 107 R7000 2.5
18.5 37 45 72 PSE85-600-70 1SFA897 108 R7000 2.5
22 45 55 85 PSE105-600-70 1SFA897 109 R7000 2.5
30 55 75 106 PSE142-600-70 1SFA897 110 R7000 4.2
40 75 90 143 PSE170-600-70 1SFA897 111 R7000 4.2
45 90 110 171 PSE210-600-70 1SFA897 112 R7000 12.4
59 110 132 210 PSE250-600-70 1SFA897 113 R7000 13.9
75 132 160 250 PSE300-600-70 1SFA897 114 R7000 13.9
90 160 200 300 PSE370-600-70 1SFA897 115 R7000 13.9
