RHEYFLAT®-N NGFLGOEU-J Cable

Rubber Flat Festoon CablesRubber Flat Festoon Cables 300/500 V

Applications

Used for festoon and handling systems, machine tools, lifts and e-chain cable carrier systems. For applications with high mechanical stress and frequent bending in one plane only.

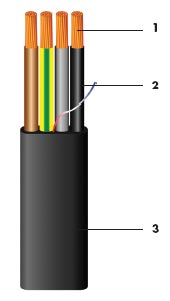

Design

Rubber Flat Festoon Cables

1. Conductor Flexible, plain copper,≤ 25 mm2: extra flexible
stranded, class 6
≥ 35 mm2: flexible stranded, class 5 according to
IEC 60228/ DIN VDE0295
2. Insulation EPR rubber compound
3GI3 refer to DIN VDE 0207 part 20
3. Outer sheath Rubber compound 5GM3
refer to DIN VDE 0207 part 21
Colour: black

Marking

RHEYFLAT-N NGFLGOEU-J
Number of cores – Cross-section
300/500 V – NEXANS – year

Cores Identification

DIN VDE 0293 part 308/HD 308 S2
4 cores: green/yellow – brown – black – grey
5 cores: green/yellow – blue – brown – black – grey
≥ 5 cores: black with white printed numbers – green/yellow

Standards

DIN VDE 0250 part 809

Mechanical properties

Tensile stress of the conductor static 15 N/mm2
dynamic 30 N/mm2
Bending radii according to DIN VDE 298
Tests Bending test
Festoon speed up to 180 m/min

Chemical properties

Oil resistant.
For indoor and outdoor applications. Moisture, UV and ozone resistance.
Flame-retardant according to IEC 60 332 part 1.

Electrical and Thermal properties

Nominal voltage Uo/U 300/500 V
Maximum operating voltage in AC systems Um 500 V
Maximum operating voltage in DC systems Vm 750 V
Test voltage (according to DIN VDE 0250 part 809) 2.0 kV in AC
Current rating (A) according to DIN VDE 0298 part 4,
Max. temperature at the conductor:
– in service + 90 °C
– under short-circuit conditions + 250 °C
Max. surface temperature:
– Fixed installation – 50 °C up to + 80 °C
– Mobile Operation – 35 °C up to + 80 °C

RHEYFLAT®-N NGFLGOEU-J

Number of cores and nominalcross-section
(mm2)
Outer dimensions approx.
(mm)
Weight approx.
(kg/km)
CONTROL 4 x 1.5 6.2 x 17.5 200
5 x 1.5 6.2 x 21.5 240
7 x 1.5 6.2 x 29.0 360
8 x 1.5 6.2 x 31.5 370
10 x 1.5 6.5 x 40.0 520
12 x 1.5 6.5 x 47.0 620
24 x 1.5 12.5 x 55.0 1,300
4 x 2.5 7.5 x 21.0 280
5 x 2.5 7.5 x 27.0 400
7 x 2.5 7.5 x 35.0 520
8 x 2.5 7.5 x 39.0 550
12 x 2.5 8.0 x 56.0 800
24 x 2.5 16.0 x 68.0 1,850
POWER 4 x 4 9.0 x 26.0 410
5 x 4 9.0 x 32.0 560
7 x 4 9.0 x 42.0 700
4 x 6 9.5 x 29.0 600
5 x 6 9.5 x 35.0 650
7 x 6 9.5 x 42.0 850
4 x 10 11.0 x 33.0 800
5 x 10 11.0 x 44.0 1,000
4 x 16 13.0 x 38.0 1,150
5 x 16 13.0 x 50.0 1,450
4 x 25 15.0 x 49.5 1,700
5 x 25 16.0 x 60.0 2,200
7 x 25 16.0 x 80.0 3,060
4 x 35 17.0 x 55.0 2,200
7 x 35 17.0 x 88.0 3,900
4 x 50 19.0 x 63.0 3,000
4 x 70 22.0 x 71.0 4,000
4 x 95 25.0 x 80.0 5,300
4 x 120 27.0 x 86.0 6,400
