TRAY VFD 1420 Cable

TRAY VFD 1420 CableInverter, connection to frequency converters, UV Resistant,s UL style 1277, WTTC 90°C DRY 1000 V, UL type TC-ER 2000 V 90°C Dry and wet, cUL type CIC/TC FT4

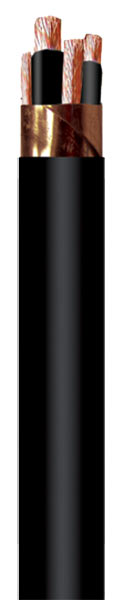

Cable Construction

Conductor: flexible bare copper strand
acc. to ASTM B-3 and B 174
Insulation: special XLPE compound
Cores colour: acc. to ICEA S-58 679 method 4
black conductors whit number printed
Ground-conductor: flexible bare copper strand
acc. to ASTM B-3 and B 174, uninsulated
Stranding: cores stranded in concentric layers
Screen: overall copper tape
Outer sheath: Special PVC, black (RAL 9005),
other colour on request

Cable Features

  • UV resistant
  • Outdoor use
  • Installation in hazardous areas
  • On request UL type TC-ER 600 V 90°C dry and wet
  • On request special EPR compound insulation version
  • UL 1277 type TC-ER 2000 V, 90°C dry and wet
  • WTTC 90°C DRY 1000 V
  • UL: type RHH or RHW-2 conductors per UL 44 and ICEA S-95-658, NEMA WC 70
  • CSA: c (UL) CIC/TC FT4
  • EPA 40 CFR, part 261
  • OSHA and MSHA possible

Technical Data

Nominal voltage: UL: 2000 V
Temperature range:
  Fixed installation: – 25°C to + 90°C
  Flexible application: – 25°C to + 90°C
Min. bending radius: 12 x d
Resistance: Flame test:
UL 1581 / UL 2556 VW-1
CSA FT4
UL 1685 vertical flame test
IEEE 383, IEEE 1202 vertical tray flame test
ICEA T-29-520
Oil resistant:
CSA C22.2 No.230s

Ordering Information

Black 3 + 3 Conductors

No. of cores
x cross section n x AWG/MCM
Outer Ø
inches/mm ±10%
Copper weight
Lbs/Mft – kg/km
Cable weight approx.
Lbs/Mft – kg/km
3 x 14 + 3 G 18 0.58 – 14.73 91 -135 212 – 315
3 x 12 + 3 G 16 0.615 – 15.37 127 – 189 260 – 387
3 x 10 + 3 G 14 0.67 – 24.8 183 – 272 329 – 490
3 x 8 + 3 G 14 0.77 – 28.1 246 – 366 441 – 656
3 x 6 + 3 G 12 0.895 – 31.4 368 – 548 618 – 920
3 x 4 + 3 G 12 0.995 – 36.1 522 – 777 830 – 1235
3 x 2 + 3 G 10 1.125 – 38.9 801 – 1192 1152 – 1714
3 x 1/0 + 3 G 6 1.385 – 35.18 1348 -2006 1853 – 2757
3 x 2/0 + 3 G 6 1.48 – 37.59 1616 – 2405 2169 – 3227
3 x 3/0 + 3 G 5 1.59 – 40.39 2010 – 2991 2619 – 3897
3 x 4/0 + 3 G 4 1.78 – 45.21 2517 – 3745 3241 – 4823
3 x 250 + 3G 4 1.94 – 49.28 2895 – 4308 3763 – 5599
3 x 350 + 3 G 2 2.16 – 54.86 4089 – 6084 5109 – 7602
3 x 500 + 3 G 1 2.45 – 62.36 5693 – 8471 6933 – 10316
