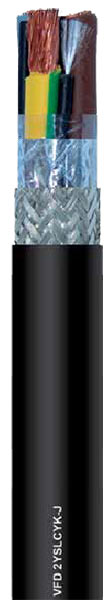

VFD 2YSLCYK-J Cable

VFD 2YSLCYK-J CableInverter, connection to frequency converters, UV Resistant, 0.6/1 kV

Suitable for motor power supply for the frquency converterss used in automative and food industry, packaging industry, machine tools and handling equipment.

Cable Construction

Conductor: Flexible red copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Insulation: PE compound
Cores colour: 4 conductors: grey, brown, black and green/yellow
3 conductors + 3 earth conductors:
grey, brown, black and green/yellow divided in 3 cores
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
2 tinned copper braid
Outer sheath: black (RAL 9005), PVC compound

Cable Features

  • UV resistant
  • Outdoor use acc. to DIN VDE 0250
  • EMC (electromagnetic compatibility)
  • acc. to EN 55011 and DIN VDE 0875 part 11
  • Low mutual capacitance
  • Low coupling resistance

Technical Data

Nominal voltage: UO/U 600/1000 V
Test voltage: 4000 V

Operating voltage

max.:

A.C. and 3 phase 700 / 1200 V
D.C. operation 900 /1800 V
Peak value Û: 1700 V
Temperature range:
Fixed laying: – 40°C up to + 70°C
Flexible application: – 5°C up to + 70°C
Max. temp. on conductor: + 90°C
Short circuit temperature: + 250°C
Radiation resistance: up to 80×106 cJ/kg
Insulation resistance: min. 200 MOhm x km
Coupling resistance: depending on the cross-sectiion:
max. 250 Ohm/km
Min. bending radius:
Fixed installation: up to 12 mm: 5 x d
> 12 to 20 mm : 7,5 x d
> 20 mm: 10 x d
Flexible installation: up to 12 mm: 10 x d
> 12 to 20 mm: 15 x d
> 20 mm: 20 x d

Mutual capacitance:

(4 conductors version):

depending on the cross-sectiion
core/core 70 to 250 nF/km
core/screen 110 to 410 nF/km
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 /
IEC 60332-1-2

Black 4 Conductors

No. of cores
x cross section n x mm2
Outer Ø Ca. mm
± 10%

Copper weight

kg/km

Cable weight approx.
kg/km
AWG
no.*)
4 G 1.5 10.6 95 230 16
4 G 2.5 12.3 150 300 14
4 G 4 14.5 235 485 12
4 G 6 16.4 320 633 10
4 G 10 20.1 533 863 8
4 G 16 23.4 789 1291 6
4 G 25 27 1236 1862 4
4 G 35 30.7 1662 2611 2
4 G 50 36.1 2345 2955 1
4 G 70 42.3 3196 3953 2/0
4 G 95 47.7 4316 5304 3/0
4 G 120 51.9 5435 6604 4/0
4 G 150 57.5 6394 7043 250 MCM
4 G 185 61.1 7639 8384 350 MCM
4 G 240 67.0 10013 11010 450 MCM
4 G 300 71.5 12570 13800 550 MCM

Back 3 + 3 Conductors

No. of cores
x cross section n x mm2

Outer Ø Ca.

mm ±10%

Copper weight

kg/km

Cable weight approx.

kg/km

AWG no,*)
3 x 1.5 + 3 G 0.25 10,2 86 140 16 / 22
3 x 2.5 + 3 G 0.5 11,4 144 220 14 / 20
3 x 4 + 3 G 0.75 13 224 323 12 / 19
3 x 6 + 3 G 1 15 298 420 10 / 18
3 x 10 + 3 G 1.5 18,4 491 615 8 / 16
3 x 16 + 3 G 2.5 21,6 723 819 6 / 14
3 x 25 + 3 G 4 25,3 1138 1325 4 / 12
3 x 35 + 3 G 6 27,8 1535 1718 2 / 10
3 x 50 +3 G 10 32,6 2208 2399 1 / 8
3 x 70 +3 G 10 39 2871 3056 2/0 / 8
3 x 95 + 3 G 16 44,3 3953 4162 3/0 / 6
3 x 120 + 3 G 16 46,3 4836 5074 4/0 / 6
3 x 150 + 3 G 25 53,5 5412 6128 250 MCM / 4
3 x 185 + 3 G 35 59,5 6969 7189 350 MCM  / 2
3 x 240 + 3 G 42,5 65,2 8540 9540 450 MCM / 1
3 x 300 + 3 G 50 69,5 11050 11560 550 MCM / 1

On request it is possible to supply a 2XSLCHK-J Halogen-free Version

Insulation: XLPE special compound. acc. to IEC 60502-4 (max. core temperature + 90°C)

Outer sheath: special type SHF1 (HM2) acc. to IEC 60092-353
