VFD 9YSLCYK-J Cable

VFD 9YSLCYK-J Cable

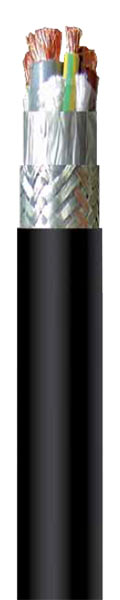

Inverter cable connection to frequency converters, UV resistant, 0.6 1 kV

Cable Applications

The VFD 9YSLCYK-J Cable is used in the paper, chemical and heavy industry market segments.

Cable Construction

Conductor: bare copper strand acc. to DIN VDE 0295
and IEC 60228 class. 5
Insulation: PP compound
Cores Colour: acc. HD 308 S2/VDE 0293-308 + G/Y
4 conductors: grey, brown, black and green/yellow
3 conductors + 3 earth conductors:
grey, brown, black and green/yellow divide in 3 cores
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
2 tinned copper braiding
Outer sheath: black (RAL 9005), PVC compound

Cable Features

  • ruAWM Style 2570 1000 V 80°C VW-1
  • c.ru AWM //II A/B 1000 V 80° FT-1
  • EN VDE 90°C rated PP insulation
  • EMC (electromagnetic compatibility)
  • UV-resistant
  • Outdoor use
  • USA: acc. to NFPA 79 Ed 08

Technical Data

Nominal voltage: Uo/U 0.6/1 kV
Test voltage: 4000 V
Temperature range:
  Fixed Laying UL/CSA: – 40°C up to + 80°C
  Fixed IEC: – 40°C up to + 90°C
  Flexing UL/CSA: – 5°C up to + 80°C
  Flexing IEC: – 5°C up to + 90°C
Insulation resistance
min. GΩ x cm:
20
Transfer impedance
at 30 MHz Ω/km:
< 250
Min. bending radius:
Fixed laying:
4 x d
Flexible installation: 20 x d
Transfer impedance
at 30 MHz Ω/km:
< 250
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 /
IEC 60332-1-2
UL VW-1, CSA FT-1

Ordering Information

No. of cores
x cross section n x mm2
Outer Ø Ca. mm
±10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
3 x 1.5 + 3 G 0.25 11.4 88 140 16 /24
3 x 2.5 + 3 G 0.5 12.9 130 220 14 / 20
3 x 4 + 3 G 0.75 13.6 224 323 12 / 10
3 x 6 + 3 G 1 15.2 276 420 10 / 18
3 x 10 + 3 G 1.5 17.4 511 615 8 / 16
3 x 16 + 3 G 2.5 20 751 819 6 / 14
3 x 25 + 3 G 4 24.3 1204 1325 4 / 12
3 x 35 + 3 G 6 27.5 1535 1718 2 / 10
3 x 50 + 3 G 10 31.1 2156 2399 1 / 8
3 x 70 + 3 G 10 37.1 2980 3056 2/0 / 8
3 x 95 + 3 G 16 40 3953 4162 3/0 / 6
3 x 120 + 3 G 16 42.6 4836 5074 4/0 / 6
3 x 120 + 3 G 25 50 5412 6128 250 MCM / 4
3 x 185 + 3 G 35 55.6 7077 7820 350 MCM / 2

Other dimensions and colours available on request
