VFD NYCWY Cable

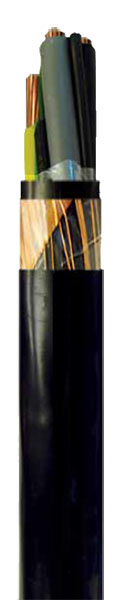

VFD NYCWY CablePower cable with concentric copper conductor, connection to frequency converters, 0.6/1 kV

Cable Applications

Suitable especially for underground laying, for example in subscriber networks, power stations also as control cable for transmission of control impulses and test data.

Cable Construction

Conductor: Plain copper solid acc. to DIN VDE 0295
and IEC 60228 class 1 or 2
10-16 mm2 – round solid cores
10-25 mm2 – stranded conductor
35-240 mm2 – sector shaped conductor stranded
Insulation: PVC type DIV4 acc. to HD 603.1
Cores Colour: Colour coded to DIN VDE 0293, HD 308
Stranding: Cores stranded concentrically
Inner Sheath Filling compound
Screen: Concentric conductor of corrugated copper wires + copper tape
Outer sheath: Transparent, PVC type YM2, acc. to VDE 0207-5

Cable Features

Acc. to DIN VDE 0276 part 603, HD 603 S1 and IEC 60502

Technical Data

Nominal voltage: UO/U 0.6/1 kV
Test voltage: 4000 V
Highest voltage:
Direct current system: 1800 V
Alternating current systems,
single-phase system:
1400 V
Both conductor insulated.
single-phase system:
700 V
One conductor earthed
three phase systems
1200 V
With concentric conductor
and a cross-section
of 240 mm2 and above:
3600 V
Temperature range:
Fixed installation: – 30°C up to + 70°C
Flexible application: – 5°C up to + 50°C
Min. bending radius:
single core:
15 x d
multi core: 12 x d
Max tensile stress: 50 N/mm2
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 /
IEC 60332-1-2

Ordering Information

No, of cores
x cross section n x mm2
Outer Ø Ca. mm
±10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
2 x 10 / 10 19 312 650 8
2 x 16 / 16 21 489 850 6
2 x 25 / 25 24 763 1210 4
3 x 10 / 10 19.5 408 730 8
3 x 16 / 16 22 643 1000 6
3 x 25 / 16 26 902 1550 4
3 x 35 /16 27 1190 1750 2
3 x 50 / 25 29 1723 2250 1
3 x 70 / 35 33 2410 2950 2/0
3 x 95 / 50 38 3296 4100 3/0
3 x 120 / 70 41 4236 5050 4/0
3 x 150 / 70 45 5100 6000 250 MCM
3 x 185 / 95 50 6383 7550 350 MCM
3 x 240 / 120 57 8242 9950 450 MCM
3 x 25 / 25 26 1003 1600 4
3 x 35 / 35 27.5 1402 1850 2
3 x 50 / 50 29.5 2000 2450 1
3 x 70 / 70 34 2796 3350 2/0
3 x 95 / 95 38.5 3791 4550 3/0
3 x 120 / 120 42 4786 5550 4/0
3 x 150 / 150 46 5970 6900 250 MCM
3 x 185 / 185 51 7363 8500 350 MCM
4 x 10 / 10 20.5 504 890 8
4 x 16 / 16 23.5 796 1250 6
4 x 25 / 16 28 1142 1800 4
4 x 35 / 16 29 1526 2050 2
4 x 50 / 25 33 2203 2700 1
4 x 70 / 35 37 3082 3750 2/0
4 x 95 / 50 43.5 4208 5000 3/0
4×120 / 70 47.2 5388 6350 4/0
4 x 150 / 70 51 6540 7650 250 MCM
4 x 185 / 95 56 8159 9350 350 MCM
4 x 240 / 120 62.5 10546 11600 450 MCM

Other dimensions and colours available on request
