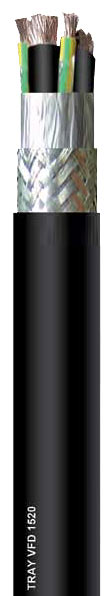

TRAY VFD 1520 Cable

TRAY VFD 1520 CableInverter, connection to frequency converters, UV Resistant, UL style 2277 WTTC 1000 V 90°C Dry 75°C Wet

Cable Construction

Conductor: Flexible tinned copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Cores colour: 4 conductors: black conductors and green/yellow or
3 black conductors + 3 earth conductors
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
+ tinned copper drain wire
2 tinned copper braid
Ripcord: high strength ripcord under outer sheath
Outer sheath: black (RAL 9005), PVC special compound
other colors on request

Cable Features

  • UV resistant
  • outdoor use
  • Installation in hazardous areas
  • UL Type TC-ER c(UL) Type CIC FT4, Sun Res, Oil Res I
  • UL style 1277 60°C 600 V WTTC and
  • UL 1277, UL type TC-ER for 600 V on request
  • UL style 2277 WTTC 1000 V 90°C dry
  • MSHA approved

Technical data

Nominal voltage: UL: 1000 V
Temperature range:
  Fixed installation: – 25°C to + 90°C
  Flexible application: – 25°C to + 90°C
Min. bending radius:
Fixed installation: up to 12 mm: 5 x d> 12 to 20 mm : 7.5 x d
> 20 mm: 10 x d
Flexible installation: up to 12 mm: 10 x d> 12 to 20 mm: 15 x d
> 20 mm: 20 x d
Resistance: Fire performance:c(UL) FT4
Oil resistance:
oil fuel CSA C22-2.NO.210-05
UL/CSA standards: ASTM B-3ASTM B-33
ASTM B-172
ASTM B-174
UL 66 basic construction, test and marking
UL 83 600 V thermoplastic insulation
UL 1277 60°C for Oil Res I
CSA C22.2 No 230 for tray cable
CSA C22.2 No 239 for control and instrumentation cable

Ordering Information

Black 4 Conductors

No. of cores x cross sectionn x mm2 Outer Øinches/mm±10% Current capacity at +30°C Amps Copper weightLbs/Mft – kg/km Cable weight approx.Lbs/Mft – kg/km AWG
no.*)
4 G 1.5 0.395 – 10 18 121 – 180 16
4 G 2.5 0.435 – 11 25 153 – 228 14
4 G 4 0.475 – 12.1 30 197 – 293 12
4 G 6 0.595 – 15.1 40 296 – 441 10
4 G 10 0.73 – 18.5 55 440 – 654 8
4 G 16 0.825 – 21 75 609 – 907 6
4 G 25 1.045 – 26.5 95 940 – 1399 4
4 G 35 1.19 – 30.2 130 1328 -1976 2
4 G 50 1.33- 33.8 145 1651 – 2457 1
4 G 70 1.545 – 39.2 195 2405 – 3579 2/0
4 G 95 1.665 – 42.3 225 2917 -4340 3/0
4 G 120 1.915 – 48.6 260 3721 – 5536 4/0
4 G 150 2.09 – 53.1 290 4336 – 6452 250 MCM
4 G 185 2.33 – 59.2 350 5809 – 8644 350 MCM
4 G240 2.5  – 63.7 430 7437 – 11100 450 MCM

Black 3 Conductors

No. of cores x cross sectionn x mm2 Outer Øinches/mm±10% Current capacity at +30°C Amps Copper weightLbs/Mft – kg/km Cable weight approx.Lbs/Mft – kg/km AWG
no.*)
3×10+3G2.5 0.7 – 17.8 55 401 – 597 8 /14
3×16+3G4 0.785 – 19.9 75 554 – 824 6 /12
3×25+3G4 0.975 – 24.8 95 809 – 1204 4 / 12
3×35+3G6 1.105 – 28.1 130 1147 – 1707 2 / 10
3×50+3G10 1.235 – 31.4 145 1471 – 2189 1 / 8
3×70+3G10 1.42 – 36.1 195 2032 – 3024 2/0 / 8
3×95+3G16 1.53 – 38.9 225 2521 – 3751 3/0 / 6
3×120+3G16 1.76 – 44.7 260 3139 – 4671 4/0 / 6
3×150+3G16 1.915 – 48.6 290 3596 – 53 51 250 MCM / 6
3×185+3G25 2.13 – 54.1 350 4873 – 7521 350 MCM / 6
3×240+3G35 2.26 – 57.3 430 6378 – 9520 450 MCM / 2
