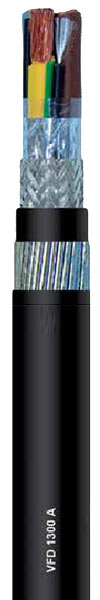

VFD 1300 A Cable

VFD 1300 A CableInverter, connection to frequency converters, UV Resistant, 0.6/1 kV

Cable Application

Suitable for motor power supply for the frquency converters, used in automative and food industry, packaging industry, machine tools and handling equipment.

Cable Construction

Conductor: Flexible red copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Insulation: GAALTHERM® 580
Cores colour: 4 conductors: grey, brown, black and green/yellow
3 conductors + 3 earth conductors:
grey, brown, black and green/yellow divided in 3 cores
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
2 tinned copper braid
Inner sheath: Black (RAL 9005), special compound
Armouring: Steel wires
Outer sheath: Black (RAL 9005), PVC special compound

Cable Features

  • UV resistant
  • Outdoor use acc. to DIN VDE 0250
  • EMC (electromagnetic compatibility)
  • acc. to EN 55011 and DIN VDE 0875 part 11
  • Low mutual capacitance
  • Low coupling resistance

Cable Technical Data

Nominal voltage: UO/U 600/1000 V
Test voltage: 4000 V
Operating voltage max.: A.C. and 3 phase 700 / 1200 V
D.C. operation 900 /1800 V
Peak value Û: 1700 V
Temperature range:
  Fixed laying: – 40°C up to + 70°C
  Flexible application: – 5°C up to + 70°C
  Max. temp. on conductor: + 90°C
  Short circuit temperature: + 250°C
Radiation resistance: up to 80×106 cJ/kg
Insulation resistance: min. 200 MOhm x km
Coupling resistance: depending on the cross-section:
max. 250 Ohm/km
Min. bending radius: 12 x d
Mutual capacitance:(4 conductors version): depending on the cross-section
core/core 70 to 250 nF/km
core/screen 110 to 410 nF/km
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 /
IEC 60332-1-2

Ordering Information

Black 4 Conductors

No. of cores
x cross section n x mm2
Outer Ø Ca. mm
± 10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
4 G 1.5 12.2 95 265 16
4 G 2.5 14.1 150 345 14
4 G 4 16.7 235 560 12
4 G 6 16.4 320 730 10
4 G 10 18.9 533 995 8
4 G 16 26.9 789 1485 6
4 G 25 31 1236 2145 4
4 G 35 35.3 1662 3000 2
4 G 50 41.5 2345 3400 1
4 G 70 48.6 3196 4550 2/0
4 G 95 54.9 4316 6100 3/0
4 G 120 59.7 5435 7600 4/0
4 G 150 66.1 6394 8100 250 MCM
4 G 185 70.3 7639 9640 350 MCM
4 G 240 77.1 10013 12660 450 MCM
4 G 300 82.2 12570 15870 550 MCM

Black 3 + 3 Conductors

No. of cores
x cross section n x mm2
Outer Ø Ca. mm
± 10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
3 x 1.5 + 3G 0.25 11.7 86 160 16/22
3 x 2.5 + 3 G 0.5 13.1 144 255 14/20
3 x 4 + 3 G 0.75 15 224 371 12/19
3 x 6 + 3 G 1 17.2 298 485 10/18
3 x 10 + 3 G 1.5 21.2 491 710 8/16
3 x 16 + 3 G 2.5 24.9 723 819 6/14
3 x 25 + 3 G 4 29.1 1138 945 4/12
3 x 35 + 3 G 6 32 1535 1975 2/10
3 x 50 + 3 G 10 37.5 2208 2760 1/8
3 x 70 + 3G 10 44.9 2871 3514 2/0 / 8
3 x 95 + 3 G 16 50.9 3953 4790 3/0 /6
3 x 120 3 G 16 53.2 4836 5835 4/0 / 6
3 x 150 + 3 G 25 61.5 5412 7050 250 MCM / 4
3 x 185 + 3 G 35 68.4 6969 8270 350MCM / 2
3 x 240 + 3 G 42.5 75 8540 10975 450 MCM / 1
3 x 300 + 3 G 50 79.9 11050 13295 550 MCM / 1

Other dimensions and colours available on request

Temperature °C 15 20 25 35 40 45 50 55 60
K Factor 1.17 1.12 1.06 0.94 0.87 0.79 0.71 0.61 0.5
