VFD FE4(O)CR Cable

VFD FE4(O)CR CableInverter, connection to frequency converters, 0.6/1 kV

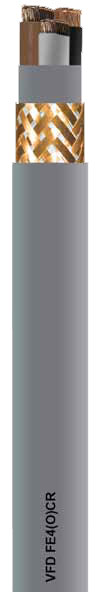

Cable Construction

Conductor: Flexible red copper or tinned acc. to IEC 60228,
DIN VDE 0295 class 5
Insulation: XLPE compound
Cores color: Acc.to DIN VDE 0293 HD 308,
(brown – gray – black)
Stranding: Cores laying to concentric crowns to ensure
roundness to the cable
Screen: Red copper braid of the same section as the phase
conductor (for sections up to 16 mm2) or equal
to half phase conductor, with a minimum of 16 mm2
(for section greater than 25 mm2)
Outer sheath: Grey, special PVC compound type RZ
Inner Sheath: PVC type R2

Cable Features

  • According to IEC 60502-1 and CEI 20-13, CEI-UNEL 35375

Technical Data

Nominal voltage: UO/U 0,6/1 kV
Test voltage: 4000 V
Temperature range:
Fixed installation: -50°C up to + 80°C
Flexible installation: -35°C up to + 80°C
Temperaure at conductor:
in service: + 90°C
in short circuit: + 250°C
Min. bending radius: 8 x d
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 266-2-5 / EN 50266-2-5 /
IEC 60332-3A

Ordering Information

No. of cores
x cross section n x mm2
Outer Ø Ca. mm
±10%
Current capacity at +30°C
Amps
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
3 x 2.5 + SH 14.6 26 96 340 14
3 x 4 + SH 15.8 34 134 400 12
3 x 6 + SH 18.7 44 231 490 10
3 x 10 + SH 21.7 61 336 720 8
3 x 16 +SH 25.3 82 615 1040 6
3 x 25 +SH 28.8 108 873 1410 4
3 x 35 + SH 32.2 135 1162 1870 2
3 x 50 +SH 36 168 1680 2400 1
3 x 70 + SH 40.7 207 2352 3360 2/0
3 x 95 + SH 47.6 250 3192 4350 3/0
3 x 120 + SH 52.2 292 4032 5540 4/0
3 x 150 + SH 56.4 335 5040 6880 250 MCM
3 x 185 + SH 64.8 382 6216 8350 350 MCM
3 x 240 + SH 74.5 453 8604 11540 450 MCM
3 x 300 + SH 85.5 523 10080 13480 550 MCM
