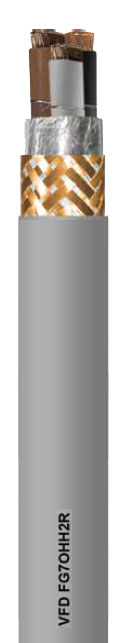

VFD FG7OHH2R Cable

VFD FG7OHH2R CableInverter, connection to frequency converters, 0.6/1 kV

Cable Construction

Conductor: Flexible red copper or tinned acc. to IEC 60228,
DIN VDE 0295 class 5 ss 5
Insulation: HEPR compound
Cores color: acc.to DIN VDE 0293 HD 308,
(brown – gray – black)
Stranding: cores laying to concentric crowns to ensure
roundness to the cable
Screen: 1st screen Alu foil
2nd screen red copper braid of
the same section as the phase conductor (for sections
up to 16 mm2) or equal to half phase conductor, with a
minimum of 16 mm2 (for section greater than 25 mm2)
Outer sheath: Grey, special PVC type RZ,

Cable Features

  • according to IEC 60502-1 and CEI 20-13, CEI-UNEL 35375

Technical Data

Nominal voltage: UO/U 0,6/1 kV
Test voltage: 4000 V
Temperature range:
Fixed installation: -50°C up to + 80°C
Flexible installation: -35°C up to + 80°C
Temperaure at conductor:
in service: + 90°C
in short circuit: + 250°C
Min. bending radius: 8 x d
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 266-2-5 / EN 50266-2-5 /
IEC 60332-3A

Ordering Information

No. of cores
x cross section n x mm2
Outer Ø Ca. mm
±10%
Current capacity at +30°C
Amps
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
3 x 2.5 + SH 14.6 26 96 340 14
3 x 4 + SH 15.8 34 134 400 12
3 x 6 + SH 18.5 44 231 490 10
3 x 10 + SH 21 61 336 720 8
3 x 16 + SH 23.5 82 615 1040 6
3 x 25 + SH 27 108 873 1410 4
3 x 35 + SH 30.5 135 1162 1870 2
3 x 50 + SH 35 168 1680 2400 1
3 x 70+SH 40 207 2352 3360 2/0
3 x 95+SH 45 250 3192 4350 3/0
3 x 120+SH 50 292 4032 5540 4/0
3 x 150+SH 55,4 335 5040 6880 250 MCM
3 x 185+SH 61,5 382 6216 8350 350 MCM
3 x 240+SH 68 453 8604 11540 450 MCM
3 x 300+SH 85,5 523 10080 13480 550 MCM

Other dimensions and colours available on request

Also available on request: FG7OHH2M1-0.6/1 kV, Halogen free Version.

Sheath: green M1 LSZH thermoplastic
