VFD 1200 Cable

VFD 1200 CableInverter, connection to frequency converters, 0.6/1 kV

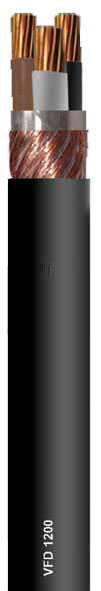

Cable Construction

Conductor: red copper acc. to IEC 60228,
DIN VDE 0295 Cl. 2
Insulation: 590
Cores color: acc. to DIN VDE 0293 HD 308,
(brown – grey – black)
Stranding: in layers
Screen: Aluminium tape (100% covering), red copper wires screen
wrapped of the same section as the phase conductor
(for sections up to 16 mm2) or equal to half phase conductor,
with a minimum of 16 mm2 (for section greater than 25 mm2)
Outer sheath: black (RAL 9005), special PVC compound

Cable Features

  • according to IEC 60502-1

Technical Data

Nominal voltage: 0.6/1 kV
Test voltage: 4 kV
Temperature range:
Fixed installation: -50°C up to + 90°C
Flexible installation: -40°C up to + 90°C
Temperaure at conductor:
in service: + 90°C
in short circuit: + 250°C
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 266-2-5, EN 50266-2-5,
IEC 60332-3A

Ordering Information

No. of cores
x cross section
n x mm2
Outer Ø ca.
mm ±10%
Current capacity
at +30°C
Amps
Copper weight
kg/km
Cable weight
approx.
kg/km
AWG
no.*)
3 x 2,5 + SH 14.6 26 340 14
3 x 4 + SH 15.8 34 400 12
3 x 6 + SH 18.7 44 490 10
3 x 10 + SH 21.7 61 720 8
3 x 16 + SH 25.3 82 1040 6
3 x 25 + SH 28.8 108 1410 4
3 x 35 + SH 32.2 135 1870 2
3 x 50 + SH 36 168 2400 1
3 x 70 + SH 40.7 207 3360 2/0
3 x 95 + SH 47.6 250 4350 3/0
3 x 120 + SH 52.2 292 5540 4/0
3 x 150 + SH 56.4 335 6880 350 MCM
3 x 185 + SH 64.8 382 8350 350 MCM
3 x 240 + SH 74.5 453 11540 450 MCM
3 x 300 + SH 85.5 523 13480 550 MCM

Other dimensions and colors available on request.
