VFD FE4OHH2R Cable

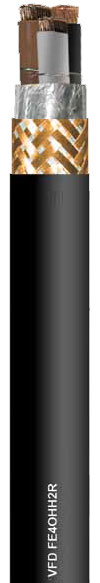

VFD FE4OHH2R CableInverter, connection to frequency converters, 0.6/1 kV

Cable Construction

Conductor: Flexible red copper or tinned acc. to IEC 60228,
DIN VDE 0295 class 5
Insulation: XLPE compound
Cores color: acc. to DIN VDE 0293 HD 308,
(brown – gray – black)
Stranding: cores laying to concentric crowns to ensure
roundness to the cable
Screen: 1st screen Alu foil
2nd screen red copper braid of the same section
as the phase conductor (for sections up to 16 mm2)
or equal to half phase conductor, with a minimum of
16 mm2 (for section greater than 25 mm2)
Outer sheath: Special PVC type RZ, black (RAL 9005).

Cable Features

  • According to IEC 60502-1 and CEI 20-13, CEI-UNEL 35375

Technical Data

Nominal voltage: UO/U 0.6/1 kV
Test voltage: 4000 V
Temperature range:
Fixed installation: -50°C up to + 80°C
Flexible installation: -35°C up to + 80°C
Temperaure at conductor:
in service: + 90°C
in short circuit: + 250°C
Min. bending radius: 8 x d
Resistance: Self-extinguishing and flame retardant:acc. to DIN VDE 0482 part 266-2-5 / EN 50266-2-5 / IEC 60332-3A
No. of cores
x cross section n x mm2
Outer Ø Ca. mm
±10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
2 x 10 / 10 19 312 650 8
2 x 16 / 16 21 489 850 6
2 x 25 / 25 24 763 1210 4
3 x 10 / 10 19.5 408 730 8
3 x 16 / 16 22 643 1000 6
3 x 25 / 16 26 902 1550 4
3 x 35 /16 27 1190 1750 2
3 x 50 / 25 29 1723 2250 1
3 x 70 / 35 33 2410 2950 2/0
3 x 95 / 50 38 3296 4100 3/0
3 x 120 / 70 41 4236 5050 4/0
3 x 150 / 70 45 5100 6000 250 MCM
3 x 185 / 95 50 6383 7550 350 MCM
3 x 240 / 120 57 8242 9950 450 MCM
3 x 25 / 25 26 1003 1600 4
3 x 35 / 35 27.5 1402 1850 2
3 x 50 / 50 29.5 2000 2450 1
3 x 70 / 70 34 2796 3350 2/0
3 x 95 / 95 38.5 3791 4550 3/0
3 x 120 / 120 42 4786 5550 4/0
3 x 150 / 150 46 5970 6900 250 MCM
3 x 185 / 185 51 7363 8500 350 MCM
4 x 10 / 10 20.5 504 890 8
4 x 16 / 16 23.5 796 1250 6
4 x 25 / 16 28 1142 1800 4
4 x 35 / 16 29 1526 2050 2
4 x 50 / 25 33 2203 2700 1
4 x 70 / 35 37 3082 3750 2/0
4 x 95 / 50 43.5 4208 5000 3/0
4 x 120 / 70 47.2 5388 6350 4/0
4 x 150 / 70 51 6540 7650 250 MCM
4 x 185 / 95 56 8159 9350 350 MCM
4 x 240 / 120 62.5 10546 11600 450 MCM

Other dimensions and colours available on request
