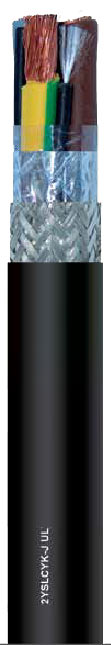

VFD 1000 2YSLCYK-J UL Cable

VFD 1000 2YSLCYK-J UL CableInverter, connection to frequency converters, UV Resistant, 0.6/1 kV

Cable Application

Suitable for motor power supply for the frquency converters, used in automative and food industry, packaging industry, machine tools and handling equipment.

Cable Construction

Conductor: Flexible red copper conductor Cl. 5,
acc to IEC 60228, DIN VDE 0295
Insulation: PE compound
Cores colour: 4 conductors: grey, brown, black and green/yellow
3 conductors + 3 earth conductors:
grey, brown, black and green/yellow divided in 3 cores
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
2 tinned copper braid
Outer sheath: black (RAL 9005), PVC compound

Cable Features

  • ruWM Style 2570 1000 V 80°C VW-1
  • cruAWM //II A/B 1000 V 80° FT-1
  • UV resistant
  • outdoor use acc. to DIN VDE 0250
  • EMC (electromagnetic compatibility)
  • acc. to EN 55011 and DIN VDE 0875 part 11
  • Low mutual capacitance
  • Low coupling resistance

Cable Technical Data

Nominal voltage: UO/U 600/1000 V; UL: 1000 V
Test voltage: 4000 V
Operating voltage max.: A.C. and 3 phase 700 / 1200 V
D.C. operation 900 /1800 V
Peak value Û: 1700 V
Temperature range:
  Fixed laying: – 40°C up to + 70°C UL: + 80°C
  Flexible application: – 5°C up to + 70°C UL: + 80°C
  Max. temp. on conductor: + 90°C
  Short circuit temperature: + 250°C
Radiation resistance: up to 80×106 cJ/kg
Insulation resistance: min. 200 MOhm x km
Coupling resistance: depending on the cross-sectiion:
max. 250 Ohm/km
Min. bending radius:
Fixed installation: up to 12 mm: 5 x d
> 12 to 20 mm : 7.5 x d
> 20 mm: 10 x d
Flexible installation: up to 12 mm: 10 x d
> 12 to 20 mm: 15 x d
> 20 mm: 20 x d
Mutual capacitance:depending on the cross-section: 70 up to 250 nF/km
110 up to 410 nF/km
Resistance: Self-extinguishing and flame retardant:
acc. to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1-2

Ordering Information

Black 4 Conductors

No. of cores
x cross section n x mm2
Outer Ø Ca.
mm ± 10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no.*)
4 G 1.5 10.4 95 230 16
4 G 2.5 12.5 150 300 14
4 G 4 14.2 235 485 12
4 G 6 15.2 320 630 10
4 G 10 19.5 533 860 8
4 G 16 22.9 789 1290 6
4 G 25 27.1 1236 1860 4
4 G 35 29.6 1662 2610 2
4 G 50 35.2 2345 2950 1
4 G 70 41.4 3196 3950 2/0
4 G 95 46.0 4316 5300 3/0
4 G 120 50.8 5435 6600 4/0
4 G 150 58.3 6394 7040 250 MCM
4 G 185 65.5 7639 8380 350 MCM
4 G 240 67.0 10013 11010 450 MCM
4 G 300 71.5 12570 13800 550 MCM

Black 3 + 3 Conductors

No. of cores
x cross section n x mm2
Outer Ø Ca.
mm ±10%
Copper weight
kg/km
Cable weight approx.
kg/km
AWG
no,*)
3 x 1.5 + 3 G 0.25 10 86 140 16 / 22
3 x 2.5 + 3 G 0.5 11.4 144 220 14 / 20
3 x 4 + 3 G 0.75 13 224 323 12 / 19
3 x 6 + 3 G 1 15 298 420 10 / 18
3 x 10 + 3 G 1.5 18.4 491 615 8 / 16
3 x 16 + 3 G 2.5 21 723 819 6 / 14
3 x 25 + 3 G 4 25.3 1138 1325 4 / 12
3 x 35 + 3 G 6 27.8 1535 1718 2 / 10
3 x 50 +3 G 10 32.6 2208 2399 1 / 8
3 x 70 +3 G 10 38,1 2871 3056 2/0 / 8
3 x 95 + 3 G 16 41 3953 4162 3/0 / 6
3 x 120 + 3 G 16 46.4 4836 5075 4/0 / 6
3 x 150 + 3 G 25 53,5 5412 6128 250 MCM / 4
3 x 185 + 3 G 35 59,5 6969 7189 350 MCM  / 2
3 x 240 + 3 G 42.5 65.1 8540 9540 450 MCM / 1
3 x 300 + 3 G 50 69.5 11050 11560 550 MCM / 1
