TRAY VFD 1500 T Cable

TRAY VFD 1500 T CableInverter, connection to frequency converters, UV Resistant, UL style 2277 WTTC 1000 V 90°C Dry 75°C Wet

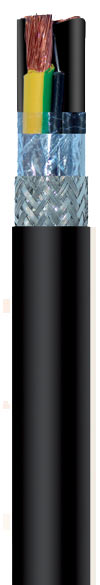

Cable Construction

Conductor: Finely stranded red copper
acc.to ASTM B-3 or ASTM B-33 and B-172 or B-174
Insulation: PVC/Nylon special compound
Cores colour: 4 conductors: black conductors and grren/yellow or
3 black conductors + 3 earth conductors
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
+ tinned copper drain wire
2 tinned copper braid
Ripcord: high strength ripcord under outer sheath
Outer sheath: black (RAL 9005), TPE special compound
other color on request

Cable Features

  • UV resistant
  • outdoor use
  • Installation in hazardous areas
  • UL Type TC-ER c(UL) Type CIC FT4, Sun Res, Oil Res I
  • UL style 1277 60°C 600 V WTTC and
  • UL 1277, UL type TC-ER for 600 V on request
  • UL style 2277 WTTC 1000 V 90°C dry
  • tinned copper on request
  • on request MSHA approved

Technical data

Nominal voltage: UL: 1000 V
Temperature range:
  Fixed installation: – 25°C to + 90°C
  Flexible application: – 25°C to + 90°C
Min. bending radius:
Fixed installation: up to 12 mm: 5 x d
> 12 to 20 mm : 7.5 x d
> 20 mm: 10 x d
Flexible installation: up to 12 mm: 10 x d
> 12 to 20 mm: 15 x d
> 20 mm: 20 x d
Resistance: Fire performance:
c(UL) FT4
Oil resistance:
oil fuel CSA C22-2.NO.210-05
UL/CSA standards: ASTM B-3
ASTM B-33
ASTM B-172
ASTM B-174
UL 66 basic construction, test and marking
UL 83 600 V thermoplastic insulation
UL 1277 60°C for Oil Res I
CSA C22.2 No 230 for tray cable
CSA C22.2 No 239 for control and instrumentation cable

Ordering Information

Black 4 Conductors

No. of cores
x cross section n x AWG/MCM
Outer Ø
inches/mm
±10%
Current capacity at +30°C
Amps
Copper weight
Lbs/Mft – kg/km
Cable weight approx.
Lbs/Mft – kg/km
4 G 16 0.395 – 10 18 121 – 180
4 G 14 0.435 – 11 25 153 – 228
4 G 12 0.475 – 12.1 30 197 – 293
4 G 10 0.595 – 15.1 40 296 – 441
4 G 8 0.73 – 18.5 55 440 – 654
4 G 6 0.825 – 21 75 609 – 907
4 G 4 1.045 – 26.5 95 940 – 1399
4 G 2 1.19 – 30.2 130 1328 -1976
4 G 1 1.33- 33.8 145 1651 – 2457
4 G 1/0 1.425. – 36.2 170 1986 – 2955
4 G 2/0 1.545 – 39.2 195 2405 – 3579
4 G 3/0 1.665 – 42.3 225 2917 -4340
4 G 4/0 1.915 – 48.6 260 3721 – 5536
4 G 250 MCM 2.09 – 53.1 290 4336 – 6452
4 G 300 MCM 2.195 – 55.8 320 5036 – 7494
4 G 350 MCM 2.33 – 59.2 350 5809 – 8644
4 G 400 MCM 2.4 – 61 380 6442 – 9586
4 G 500 MCM 2.615 – 66.4 430 7886 -11705

Black 3 Conductors

No. of cores
x cross section n x AWG/MCM
Outer Ø
inches/mm
±10%
Current capacity at +30°C
Amps
Copper weight
Lbs/Mft – kg/km
Cable weight approx.
Lbs/Mft – kg/km
3×8+3G14 0.7 – 17.8 55 401 – 597
3×6+3G12 0.785 – 19.9 75 554 – 824
3×4+3G12 0.975 – 24.8 95 809 – 1204
3×2+3G10 1.105 – 28.1 130 1147 – 1707
3×1+3G8 1.235 – 31.4 145 1471 – 2189
3×1/0+3G8 1.315 – 33.4 170 1719 – 2558
3×2/0+3G8 1.42 – 36.1 195 2032 – 3024
3×3/0+3G6 1.53 – 38.9 225 2521 – 3751
3×4/0+3G6 1.76 – 44.7 260 3139 – 4671
3×250 MCM+3G6 1.915 – 48.6 290 3596 – 5351
3×300 MCM+3G4 2.01 – 51.1 320 4296 – 6392
3×350 MCM+3G4 2.13 – 54.1 350 4873 – 7521
3×400 MCM+3G4 2.195 – 55.8 380 5347 – 7956
3×500 MCM+3G2 2.39 – 60.7 430 6653 – 9900
