CSE BMS 600V Rated Cable

CSE BMS 600V Rated Cable

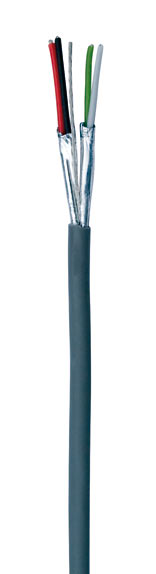

Twisted pair cables are available as screened and unscreened and can be used for popular Building Management Systems Applications. Screened cables have twisted pairs wrapped in an aluminium polyester tape with a tinned copper drain wire. These cables feature a flame retardant halogen free sheath and have a 600V rating. The cable is stocked in 500m reels and can be cut to order. We stock other types of 600V rated Belden equivalent cables.


TP/1/22/HF600

TP/2/22/HF600

Belden Equivalent 8761NH 8723NH
Cable Construction
Stranded Tinned Copper: 1 Pair 2 Pairs
AWG: 22 22
Construction: T0.25 ± 0.005 x 7 T0.25 ± 0.008 x 7
Stranded Dia. (±0.05mm): 0.77 0.76
Insulation: HDPE HDPE
Thickness: 0.41 0.2
Insulation Dia.(±0.1mm): 1.60 1.20
Insulation Colour: Natural/black Red/black; green/white
Shield: AL/PET AL/PET
Construction: Each pair is twisted with 1 AL-PET 100% screening Each pair is twisted individual aluminium foil Polyester Tape Screen
Drain Wire: Stranded Tinned Copper Stranded Tinned Copper
AWG: 22 24
Construction: T0.25 ± 0.005 x 7 T0.20 ± 0.008 x 7
Jacket: LSZH LSZH
Thickness (mm): 0.6 0.45
Diam. (±0.15mm): 4.50 4.20
Jacket Colour: Grey Grey
Ordering: 500M wooden drum or cut to length 500M wooden drum or cut to length

Electrical Characteristics


TP/1/22/HF600

TP/2/22/HF600

Maximum Conductor DC Resistance at 20oC (Ω/Km): <54.2 <55.2
Rated Temperature: 70°C 70°C
Operating Voltage: 600V 600V
20°C Insulation Resistance (M Ω KM): >200 >200
Nominal Capacitance (PF/M; 10%): 80 115
Nominal Velocity ratio: 66% 66%
Nominal Impedance (Ω): 64 45

Click to download our Catalogue PDF for CSE BMS 600V Cable.
