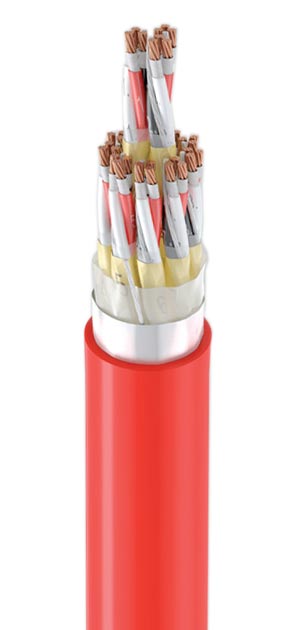

RE-2X(St)H-TIMF..CI Cable

RE-2X(St)H-TIMF..CI cable

CU/MGT+XLPE/TSCR/OSCR/LSZH..CI

This is an MGT (Mica Glass Tape) cable meaning that it has good fire resistance and also the following properties:

  • Very good EMC characteristics
  • Fire Resistant
  • Flame retardant
  • Hydrocarbon resistant
  • Small bending radius
  • Low Smoke Emissions
  • No poisonous or corrosive gasses
  • Designed to PAS 5308-1 / EN 50288-7

Cable Construction

Conductor: IEC 60228 / DIN VDE 0295 / EN 60228
Insulation: MICA tape + EN 50290-2-29 XLPE Compound
Colour Code: BS 5308-1 or Black-White-Red
Each Triad Numbered
Individual Screen: PES Tape; Tinned Drain Wire; AL-PES Tape
Stranding: Screened Triples in Layers
Wrapping: PES Tape
Overall Screen: Tinned Copper Drain Wire;
AL-PES Tape
Sheath: EN 50290-2-27 LSZH Compound
Sheath Colour: RAL 5015* Blue - ex-proof connections in explosive and inflammable environments, intrinsically safe

RAL 9005* Black - places where UV resistance is required

RAL 2003* Orange - inside buildings

RAL 3000* Red
Insulation Resistance: Min MΩxKm 5000
Mutual Capacity: Max 100 pF/m
Temperature Range: -30ºC ~ +90ºC (Fixed laying)
Operating Voltage: 300/500 V
Test Voltage: Cr./Cr.=2000 V
Cr./Scrn.=2000 V
Bending Radius: 7.5 X Cable Ø
Smoke Density: IEC 61034-2
VDE 0482-1034-2
EN 61034-2
BS EN 61034-2
Corrosiveness / Combustion
gasses test:
IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3
BS EN 50267-2-3
Halogen Free Test: IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1
BS EN 50267-2-1
Fire Resistance Test: IEC 60331-21
IEC 60331-23

Cable Applications

This cable is used in buildings where there is a need for circuit integrity in case of fire is required and there is electromagnetic interference. Typically used in the following industries:

  • Instrumentation and control engineering analogue and digital signal transmission
  • Petroleum refineries and petrochemical plants
  • Power plants
  • Natural gas pump stations
  • Dry moist and wet places indoors
  • Gas stations
  • Water conveyance systems
  • Circuit integrity is required in case of fire

Technical Properties

Cable Size Conductor Resistance Class 2 (max) L/R (Ratio) (Max) Current Load (25°C)
mm2 Ω/km µH/Ω A
0.50 36 25 6.0
0.75 24.5 25 13
1.0 18.1 25 16
1.3 13.9 40 18
1.5 12.1 40 20

Cable Ordering

CODE NR. NUMBER OF CORE AND
CROSS SECTION (mm²)
OVERALL DIAMETER
(mm)
COPPER WEIGHT
(kg/km)
APPROX. CABLE
WEIGHT (kg/km)
STANDARD LENGTH
(m)
381350020 2 x 3 x 0.50 10.10 42 125 500/1000
381350040 4 x 3 x 0.50 12.00 79 203 500/1000
381350060 6 x 3 x 0.50 14.50 116 288 500/1000
381350080 8 x 3 x 0.50 15.70 152 358 500/1000
381350100 10 x 3 x 0.50 18.70 189 452 500/1000
381350120 12 x 3 x 0.50 19.20 225 522 500/1000
381350160 16 x 3 x 0,50 21.50 299 678 500/1000
381350200 20 x 3 x 0.50 24.00 373 843 500/1000
381350240 24 x 3 x 0.50 27.50 447 1020 500/1000
381375020 2 x 3 x 0.75 10.80 55 145 500/1000
381375040 4 x 3 x 0.75 12.80 106 238 500/1000
381375060 6 x 3 x 0.75 15.60 157 361 500/1000
381375080 8 x 3 x 0.75 17.10 207 442 500/1000
381375100 10 x 3 x 0.75 20.30 258 564 500/1000
381375120 12 x 3 x 0.75 21.00 308 651 500/1000
381375160 16 x 3 x 0.75 23.50 410 854 500/1000
381375200 20 x 3 x 0.75 26.30 511 1050 500/1000
381375240 24 x 3 x 0.75 29.50 611 1250 500/1000
381301020 2 x 3 x 1 11.80 70 176 500/1000
381301040 4 x 3 x 1 13.80 135 247 500/1000
381301060 6 x 3 x 1 17.00 200 437 500/1000
381301080 8 x 3 x 1 18.30 266 534 500/1000
381301100 10 x 3 x 1 22.00 331 687 500/1000
381301120 12 x 3 x 1 22.80 396 794 500/1000
381301160 16 x 3 x 1 25.50 526 1005 500/1000
381301200 20 x 3 x 1 28.50 658 1270 500/1000
381301240 24 x 3 x 1 32.00 788 1466 500/1000
381313020 2 x 3 x 1.3 12.70 86 205 500/1000
381313040 4 x 3 x 1.3 15.10 168 343 500/1000
381313060 6 x 3 x 1.3 18.30 249 518 500/1000
381313080 8 x 3 x 1.3 20.10 331 644 500/1000
381313100 10 x 3 x 1.3 24.00 414 811 500/1000
381313120 12 x 3 x 1.3 25.00 495 944 500/1000
381313160 16 x 3 x 1.3 28.00 658 1254 500/1000
381313200 20 x 3 x 1.3 31.20 823 1543 500/1000
381313240 24 x 3 x 1.3 35.00 986 1844 500/1000
381315020 2 x 3 x 1.5 13.00 98 224 500/1000
381315040 4 x 3 x 1.5 15.50 191 376 500/1000
381315060 6 x 3 x 1.5 19.10 284 568 500/1000
381315080 8 x 3 x 1.5 20.90 377 710 500/1000
381315100 10 x 3 x 1.5 24.80 471 898 500/1000
381315120 12 x 3 x 1.5 25.70 564 1052 500/1000
381315160 16 x 3 x 1.5 28.80 750 1384 500/1000
381315200 20 x 3 x 1.5 32.20 937 1700 500/1000
381315240 24 x 3 x 1.5 36.50 1123 2050 500/1000
