CU/MGT+XLPE/OSCR/LSZH..CI Cable
This is an MGT (Mica Glass Tape) cable, giving it the following properties:
- Very good EMC characteristics
- Fire resistant
- Flame retardant
- Hydrocarbon resistant
- Small bending radius
- Low Smoke Emission without corrosive gases

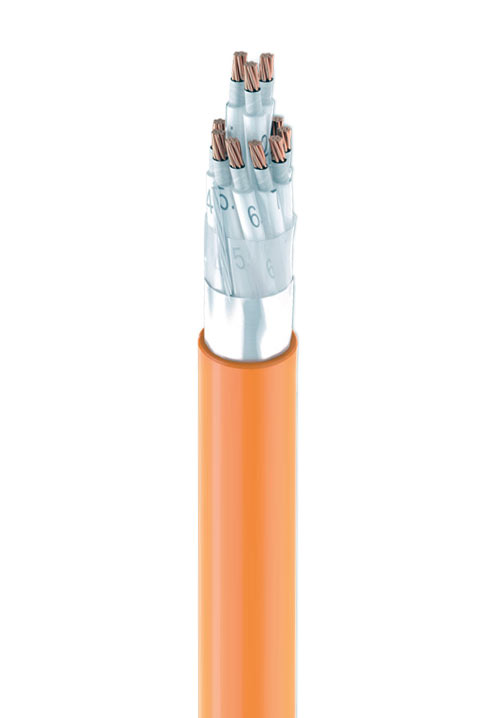

Cable Construction
| Conductor: | IEC 60228; DIN VDE 0295; EN 60228 |
| Insulation: | MICA Tape+EN 50290-2-29 XLPE Compound |
| Colour Code: | White insulated cores wtih black number imprinted |
| Stranding: | In layers of optimum pitch |
| Wrapping: | PES Tape |
| Overall Screen: | Tinned copper drain wire:AL-PES Tape |
| Sheath: | EN 50290-2-27 LSZH Compound |
| Sheath Colour: | RAL 5015 Blue (ex-proof connections in explosive and flammable environments, intrinsically safe |
| |
RAL 9005 Black (where UV resistance is required) |
| |
RAL 2003 Orange (inside buildings) |
| |
RAL 3000 Red |
| Insulation Resistance: | Min 5000 M Ω x Km |
| Temperature Range: | -30°C to +90°C (fixed laying) |
| Flame Propagation: | IEC 60332-3-24 VDE 0482-332-3-24 EN 60332-3-24 BS EN 60332-3-24 |
| Operating Voltage: | 300/500V |
| Test Voltage: | Cr./Cr.=2000 V Cr./Scrn.=2000 V |
| Bending Radius: | 7.5 x Cable Ø |
Cable Applications
This cable is used in buildings where there is a need for circuit integrity in case of fire is required and there is electromagnetic interference. Typically used in the following industries:
- Instrumentation and control engineering analogue and digital signal transmission
- Petroleum refineries and petrochemical plants
- Power plants
- Natural gas pump stations
- Indoors, outdoors, dry, damp and wet environments
- Gas stations
- Water conveyance systems
- Circuit integrity is required in case of fire
Technical Properties
| Conductor Resistance Class 2 (Max) | Mutual Capacity (Max) | L/R (Ratio) (Max) | Current Load (25°C) | |
| mm2 | Ω/km | pF/m | µH/Ω | A |
| 0.50 | 36 | 100 | 25 | 6.0 |
| 0.75 | 24.5 | 100 | 25 | 13 |
| 1.0 | 18.1 | 100 | 25 | 16 |
| 1.5 | 12.1 | 100 | 40 | 20 |
| 2.5 | 7.41 | 100 | 60 | 25 |
Standards
| Smoke Density: | IEC 61034-2 VDE 0482-1034-2 EN 61034-2 BS EN 61034-2 |
| Combustion Gases Corrosiveness: | IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 BS EN 50267-2-3 |
| Halogen Free: | IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 BS EN 50267-2-1 |
| Fire Resistant Test: | IEC 60331-21 IEC 60331-23 |
| Design: | PAS 5308-1 EN 50288-7 |
Cable Ordering Information
| Cable No. | Number of Cores x Cross Section |
Overall Diameter | Copper Weight | Approx. Cable Weight | Standard Length |
| |
(mm²) | (mm) | (kg/km) | (kg/km) | (m) |
| 381050020 | 2 x 0.50 | 5.60 | 14 | 45 | 500/1000 |
| 381050030 | 3 x 0.50 | 5.80 | 18 | 50 | 500/1000 |
| 381050040 | 4 x 0.50 | 6.30 | 23 | 58 | 500/1000 |
| 381050050 | 5 x 0.50 | 6.90 | 28 | 68 | 500/1000 |
| 381050060 | 6 x 0.50 | 7.40 | 32 | 78 | 500/1000 |
| 381050070 | 7 x 0.50 | 7.40 | 37 | 84 | 500/1000 |
| 381050100 | 10 x 0.50 | 9.40 | 51 | 115 | 500/1000 |
| 381050120 | 12 x 0.50 | 9.60 | 75 | 135 | 500/1000 |
| 381050190 | 19 x 0.50 | 11.50 | 115 | 201 | 500/1000 |
| 381050240 | 24 x 0.50 | 13.20 | 144 | 248 | 500/1000 |
| 381075020 | 2 x 0.75 | 6.00 | 19 | 50 | 500/1000 |
| 381075030 | 3 x 0.75 | 6.20 | 26 | 59 | 500/1000 |
| 381075040 | 4 x 0.75 | 6.60 | 33 | 72 | 500/1000 |
| 381075050 | 5 x 0.75 | 7,30 | 40 | 87 | 500/1000 |
| 381075060 | 6 x 0.75 | 7.90 | 47 | 102 | 500/1000 |
| 381075070 | 7 x 0.75 | 7.90 | 54 | 109 | 500/1000 |
| 381075100 | 10 x 0.75 | 10.10 | 75 | 152 | 500/1000 |
| 381075120 | 12 x 0.75 | 10.40 | 89 | 173 | 500/1000 |
| 381075190 | 19 x 0.75 | 12.30 | 138 | 260 | 500/1000 |
| 381075240 | 24 x 0.75 | 14.40 | 173 | 328 | 500/1000 |
| 381001020 | 2 x 1 | 6.40 | 23 | 58 | 500/1000 |
| 381001030 | 3 x 1 | 6.70 | 32 | 70 | 500/1000 |
| 381001040 | 4 x 1 | 7.20 | 41 | 88 | 500/1000 |
| 381001050 | 5 x 1 | 7.40 | 50 | 98 | 500/1000 |
| 381001060 | 6 x 1 | 8.70 | 60 | 121 | 500/1000 |
| 381001070 | 7 x 1 | 8.70 | 69 | 130 | 500/1000 |
| 381001100 | 10 x 1 | 11.10 | 97 | 192 | 500/1000 |
| 381001120 | 12 x 1 | 11.50 | 115 | 220 | 500/1000 |
| 381001190 | 19 x 1 | 13.40 | 180 | 322 | 500/1000 |
| 381001240 | 24 x 1 | 15.70 | 225 | 405 | 500/1000 |
| 381015020 | 2 x 1.5 | 7.00 | 33 | 70 | 500/1000 |
| 381015030 | 3 x 1.5 | 7.40 | 47 | 91 | 500/1000 |
| 381015040 | 4 x 1.5 | 8.00 | 61 | 111 | 500/1000 |
| 381015050 | 5 x 1.5 | 9.00 | 76 | 137 | 500/1000 |
| 381015060 | 6 x 1.5 | 9.70 | 90 | 165 | 500/1000 |
| 381015070 | 7 x 1.5 | 9.70 | 104 | 179 | 500/1000 |
| 381015100 | 10 x 1.5 | 12.40 | 147 | 253 | 500/1000 |
| 381015120 | 12 x 1.5 | 12.80 | 175 | 292 | 500/1000 |
| 381015190 | 19 x 1.5 | 15.10 | 274 | 445 | 500/1000 |
| 381015240 | 24 x 1.5 | 17.80 | 345 | 556 | 500/1000 |
| 381025020 | 2 x 2.5 | 8.50 | 49 | 100 | 500/1000 |
| 381025030 | 3 x 2.5 | 8.80 | 71 | 130 | 500/1000 |
| 381025040 | 4 x 2.5 | 9.60 | 93 | 163 | 500/1000 |
| 381025050 | 5 x 2.5 | 10.60 | 115 | 200 | 500/1000 |
| 381025060 | 6 x 2.5 | 11.70 | 137 | 243 | 500/1000 |
| 381025070 | 7 x 2.5 | 11.70 | 159 | 265 | 500/1000 |
| 381025100 | 10 x 2.5 | 15.00 | 225 | 374 | 500/1000 |
| 381025120 | 12 x 2.5 | 15.40 | 267 | 433 | 500/1000 |
| 381025190 | 19 x 2.5 | 18.30 | 423 | 665 | 500/1000 |
| 381025240 | 24 x 2.5 | 21.50 | 533 | 830 | 500/1000 |
