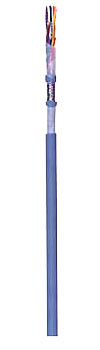

Suitable for automated production processes where data transmission cables of high flexibility are required, also for use in drag chains and where the cable is exposed to fast and abrupt movements. The overall screen grants a protection against electro-magnetic interferences. The EF CY is extra flexible class 6 stranding with PUR outer sheath which helps with abrasion resistancy and is more oil resistant. Also particularly suitable for Robotics cable.
- Super fine strands of bare copper wire
- PVC core insulation, colour code according to DIN 47100
- Cores twisted in layers
- Fleece wrapping
- PVC outer sheath grey, RAL7001 as per VDE 0207
- Bending radius 15 x ø
Temperature range flexing : -5oC to +80oC
| No. of Cores and mm2 per conductor | Outer diameter in mm Max. | Approx Weight kg / km |
| EF YY (Flex EF) - Class 5 flexible stranding | ||
| 2 x 0.5 | 5.8 | 40 |
| 3 G 0.5 | 6.2 | 48 |
| 4 G 0.5 | 6.8 | 58 |
| 5 G 0.5 | 7.3 | 67 |
| 7 G 0.5 | 8.5 | 88 |
| 12 G 0.5 | 10.0 | 136 |
| 18 G 0.5 | 12.0 | 195 |
| 25 G 0.5 | 14.9 | 274 |
| 30 G 0.5 | 14.9 | 312 |
| 34 G 0.5 | 16.3 | 359 |
| 50 G 0.5 | 19.2 | 515 |
| 61 G 0.5 | 21.0 | 624 |
| |
||
| 2 X 0.75 | 6.2 | 49 |
| 3 G 0.75 | 6.7 | 60 |
| 4 G 0.75 | 7.3 | 73 |
| 5 G 0.75 | 7.9 | 86 |
| 7 G 0.75 | 9.4 | 117 |
| 12 G 0.75 | 11.2 | 181 |
| 16 G 0.75 | 12.6 | 234 |
| 18 G 0.75 | 13.3 | 259 |
| 25 G 0.75 | 15.9 | 363 |
| 26 G 0.75 | 15.9 | 374 |
| 30 G 0.75 | 16.5 | 416 |
| |
||
| 2 x 1.0 | 6.6 | 58 |
| 3 G 1.0 | 7.1 | 72 |
| 4 G 1.0 | 7.8 | 88 |
| 5 G 1.0 | 8.5 | 104 |
| 7 G 1.0 | 10.1 | 142 |
| 12 G 1.0 | 12.0 | 221 |
| 14 G 1.0 | 12.9 | 258 |
| 16 G 1.0 | 13.6 | 287 |
| 18 G 1.0 | 14.5 | 324 |
| 25 G 1.0 | 17.8 | 445 |
| 26 G 1.0 | 17.8 | 459 |
| 34 G 1.0 | 19.6 | 595 |
| 41 G 1.0 | 21.2 | 712 |
| 50 G 1.0 | 22.9 | 854 |
| 54 G 1.0 | 26.2 | 1097 |
| |
||
| 2 x 1.5 | 7.3 | 74 |
| 3 G 1.5 | 7.9 | 93 |
| 4 G 1.5 | 8.6 | 114 |
| 5 G 1.5 | 9.6 | 139 |
| 7 G 1.5 | 11.5 | 189 |
| 12 G 1.5 | 13.5 | 295 |
| 16 G 1.5 | 15.2 | 381 |
| 18 G 1.5 | 16.3 | 429 |
| 25 G 1.5 | 20.0 | 597 |
| 26 G 1.5 | 20.0 | 615 |
| 34 G 1.5 | 21.7 | 783 |
| 41 G 1.5 | 23.6 | 936 |
| 42 G 1.5 | 23.6 | 954 |
| 50 G 1.5 | 25.6 | 1134 |
| 52 G 1.5 | 25.6 | 1170 |
| 61 G 1.5 | 28.4 | 1372 |
| |
||
| 3 G 2.5 | 9.5 | 145 |
| 4 G 2.5 | 10.5 | 179 |
| 5 G 2.5 | 11.8 | 218 |
| 7 G 2.5 | 14.2 | 303 |
| 12 G 2.5 | 16.7 | 473 |
| 14 G 2.5 | 17.9 | 548 |
| |
||
| 3 G 4.0 | 11.2 | 214 |
| 4 G 4.0 | 12.3 | 266 |
| 5 G 4.0 | 13.7 | 325 |
| |
||
| 4 G 6.0 | 14.5 | 396 |
| 5 G 6.0 | 16.2 | 484 |
| 4 G 10.0 | 18.3 | 644 |
| 5 G 10.0 | 20.3 | 785 |
| |
||
| 4 G 16.0 | 21.2 | 922 |
| 5 G 16.0 | 23.7 | 1133 |
| No. of Cores and mm² per conductor | Outer diameter in mm Max. | Approx Weight kg / km |
| EF CY - class 6 extra flexible stranding | ||
| 2 x 0.5 | 7.4 | 74 |
| 3 G 0.5 | 7.8 | 84 |
| 4 G 0.5 | 8.4 | 98 |
| 5 G 0.5 | 8.9 | 110 |
| 7 G 0.5 | 10.3 | 143 |
| 12 G 0.5 | 11.9 | 201 |
| 18 G 0.5 | 14.0 | 287 |
| 25 G 0.5 | 17.2 | 394 |
| 30 G 0.5 | 17.2 | 432 |
| |
||
| 2 x 0.75 | 7.8 | 85 |
| 3 G 0.75 | 8.3 | 99 |
| 4 G 0.75 | 8.9 | 116 |
| 5 G 0.75 | 9.5 | 133 |
| 7 G 0.75 | 11.3 | 178 |
| 12 G 0.75 | 13.0 | 253 |
| 16 G 0.75 | 14.8 | 339 |
| 18 G 0.75 | 15.5 | 368 |
| 25 G 0.75 | 18.7 | 496 |
| 26 G 0.75 | 18.7 | 507 |
| 30 G 0.75 | 18.7 | 549 |
| |
||
| 2 x 1.0 | 8.2 | 97 |
| 3 G 1.0 | 8.7 | 114 |
| 4 G 1.0 | 9.4 | 134 |
| 5 G 1.0 | 10.3 | 159 |
| 7 G 1.0 | 12.0 | 207 |
| 12 G 1.0 | 14.0 | 314 |
| 16 G 1.0 | 15.9 | 339 |
| 18 G 1.0 | 16.8 | 443 |
| 25 G 1.0 | 20.2 | 612 |
| 26 G 1.0 | 20.2 | 625 |
| 34 G 1.0 | 22.1 | 787 |
| 41 G 1.0 | 23.8 | 918 |
| 50 G 1.0 | 26.1 | 1120 |
| 65 G 1.0 | 29.2 | 1398 |
| |
||
| 2 x 1.5 | 8.9 | 117 |
| 3 G 1.5 | 9.5 | 139 |
| 4 G 1.5 | 10.4 | 169 |
| 5 G 1.5 | 11.5 | 201 |
| 7 G 1.5 | 13.3 | 262 |
| 12 G 1.5 | 15.8 | 404 |
| 16 G 1.5 | 17.5 | 503 |
| 18 G 1.5 | 18.5 | 560 |
| 25 G 1.5 | 22.5 | 793 |
| 26 G 1.5 | 22.5 | 811 |
| 34 G 1.5 | 24.5 | 1005 |
| 42 G 1.5 | 26.8 | 1210 |
| 50 G 1.5 | 29.0 | 1439 |
| 61 G 1.5 | 31.8 | 1707 |
| |
||
| 3 G 2.5 | 11.4 | 207 |
| 4 G 2.5 | 12.4 | 247 |
| 5 G 2.5 | 13.8 | 307 |
| 7 G 2.5 | 16.5 | 418 |
| |
||
| 3 G 4.0 | 13.0 | 285 |
| 4 G 4.0 | 14.3 | 360 |
| 5 G 4.0 | 16.0 | 436 |
| |
||
| 4 G 6.0 | 16.8 | 514 |
| 5 G 6.0 | 18.4 | 614 |
| |
||
| 4 G 10.0 | 20.8 | 824 |
| 5 G 10.0 | 22.8 | 983 |
| 4 G 16.0 | 23.8 | 1207 |
| 5 G 16.0 | 26.9 | 1505 |
G = Protective conductor
X = without protective conductor
