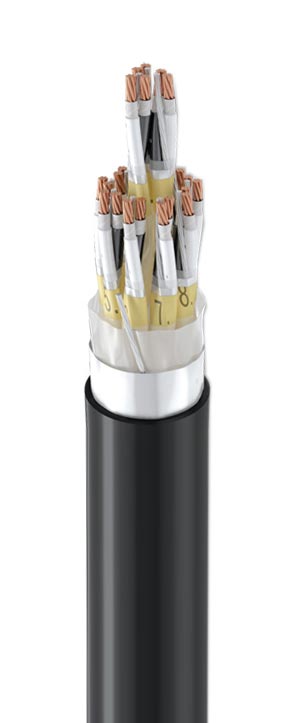

CU/MGT+XLPE/PSCR/OSCR/LSZH..CI Cable
This is an MGT (Mica Glass Tape) cable, giving it the following properties:
- Very good EMC characteristics
- Fire Resistant
- Flame retardant
- Hydrocarbon resistant
- Small bending radius
- Low Smoke Emissions
- No poisonous or corrosive gasses
- Designed to PAS 5308-1 / EN 50288-7
Cable Construction
| Conductor: | IEC 60228 / DIN VDE 0295 / EN 60228 |
| Insulation: | MICA TAPE+EN 50290-2-29 XLPE Compound |
| Colour: | BS 5308-1 or Black-White Each Pair Numbered |
| Individual Screen: | PES Tape, Tinned Drain Wire, AL-PES Tape |
| Stranding: | Pairwise, Screened pairs in layers |
| Wrapping: | PES Tape |
| Overall Screen: | Tinned copper drain wire; AL-PES Tape |
| Sheath: | EN 50290-2-27 LSZH Compound |
| Sheath Colour: | RAL 5015 Blue - at ex-proof connections in explosive and flammable environments; intrinsically safe |
| |
RAL 9005 Black - where UV resistance is required |
| |
RAL 2003 Orange - Inside of buildings |
| |
RAL 3000 Red |
| Insulation Resistance: | Min MΩxKm 5000 |
| Temperature Range: | -30°C to +90°C (Fixed Laying) |
| Flame Propagation: | IEC 60332-3-24 VDE 0482-332-3-24 EN 60332-3-24 BS EN 60332-3-24 |
| Operating Voltage: | 300/500V |
| Test Voltage: | Cr./Cr.=2000 V; Cr./Scrn.=2000 V |
| Bending Radius: | 7.5 x Cable Ø |
| Smoke Density: | IEC 61034-2 VDE 0482-1034-2 EN 61034-2 BS EN 61034-2 |
| Corrosiveness / Combustion gasses test: |
IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 BS EN 50267-2-3 |
| Halogen Free Test: |
IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 BS EN 50267-2-1 |
| Fire Resistant Test: | IEC 60331-21 IEC 60331-23 |
Cable Applications
This cable is used in buildings where there is a need for circuit integrity in case of fire is required and there is electromagnetic interference. Typically used in the following areas:
- Indoor areas with high population of people and electromagnetic interference
- Instrumentation and control engineering analogue and digital signal transmission
- Petroleum refineries and petrochemical plants
- Power plants
- Natural gas pump stations
- Dry-moist and wet indoor areas
- Gas stations
- Water conveyance systems
- Circuit integrity is required in case of fire
Technical Properties
| Cable Size | Conductor Resistance Class 2 (Max) | Mutual Capacity (max) | L/R (Ratio) (max) | Current Load (25°C) |
| mm2 | Ω/km | pF/m | µH/Ω | A |
| 0.50 | 36 | 100 | 25 | 6.0 |
| 0.75 | 24.5 | 100 | 25 | 13 |
| 1.0 | 18.1 | 100 | 25 | 16 |
| 1.3 | 13.9 | 100 | 40 | 18 |
| 1.5 | 12.1 | 100 | 40 | 20 |
Cable Ordering Information
| Part No. | No. of Cores x Cross Section |
Overall Diameter | Copper Weight | Approx. Cable Weight | Standard Lengths |
| |
mm²) | (mm) | (kg/km) | (kg/km) | (m) |
| 381250020 | 2 x 2 x 0.50 | 9.10 | 32 | 90 | 500/1000 |
| 381250040 | 4 x 2 x 0.50 | 10.60 | 60 | 130 | 500/1000 |
| 381250060 | 6 x 2 x 0.50 | 13.00 | 88 | 185 | 500/1000 |
| 381250080 | 8 x 2 x 0.50 | 14.10 | 115 | 220 | 500/1000 |
| 381250100 | 10 x 2 x 0.50 | 16.50 | 143 | 270 | 500/1000 |
| 381250120 | 12 x 2 x 0.50 | 17.20 | 170 | 300 | 500/1000 |
| 381250160 | 16 x 2 x 0.50 | 19.30 | 225 | 400 | 500/1000 |
| 381250200 | 20 x 2 x 0.50 | 21.40 | 280 | 475 | 500/1000 |
| 381250240 | 24 x 2 x 0.50 | 24.00 | 336 | 565 | 500/1000 |
| 381275020 | 2 x 2 x 0.75 | 9.80 | 42 | 110 | 500/1000 |
| 381275040 | 4 x 2 x 0.75 | 11.60 | 79 | 145 | 500/1000 |
| 381275060 | 6 x 2 x 0.75 | 14.10 | 116 | 230 | 500/1000 |
| 381275080 | 8 x 2 x 0.75 | 15.20 | 154 | 270 | 500/1000 |
| 381275100 | 10 x 2 x 0.75 | 18.10 | 191 | 330 | 500/1000 |
| 381275120 | 12 x 2 x 0.75 | 18.70 | 228 | 400 | 500/1000 |
| 381275160 | 16 x 2 x 0.75 | 21.10 | 302 | 500 | 500/1000 |
| 381275200 | 20 x 2 x 0.75 | 23.50 | 377 | 600 | 500/1000 |
| 381275240 | 24 x 2 x 0.75 | 26.30 | 451 | 730 | 500/1000 |
| 381201020 | 2 x 2 x 1 | 10.50 | 51 | 125 | 500/1000 |
| 381201040 | 4 x 2 x 1 | 12.50 | 98 | 185 | 500/1000 |
| 381201060 | 6 x 2 x 1 | 15.20 | 145 | 270 | 500/1000 |
| 381201080 | 8 x 2 x 1 | 16.70 | 192 | 325 | 500/1000 |
| 381201100 | 10 x 2 x 1 | 19.70 | 239 | 415 | 500/1000 |
| 381201120 | 12 x 2 x 1 | 20.40 | 285 | 465 | 500/1000 |
| 381201160 | 16 x 2 x 1 | 22.80 | 379 | 590 | 500/1000 |
| 381201200 | 20 x 2 x 1 | 25.60 | 473 | 740 | 500/1000 |
| 381201240 | 24 x 2 x 1 | 28.70 | 566 | 850 | 500/1000 |
| 381213020 | 2 x 2 x 1.3 | 11.50 | 63 | 145 | 500/1000 |
| 381213040 | 4 x 2 x 1.3 | 13.30 | 120 | 220 | 500/1000 |
| 381213060 | 6 x 2 x 1.3 | 16.40 | 179 | 315 | 500/1000 |
| 381213080 | 8 x 2 x 1.3 | 17.80 | 237 | 390 | 500/1000 |
| 381213100 | 10 x 2 x 1.3 | 21.10 | 295 | 480 | 500/1000 |
| 381213120 | 12 x 2 x 1.3 | 22.00 | 353 | 540 | 500/1000 |
| 381213160 | 16 x 2 x 1.3 | 24.70 | 467 | 740 | 500/1000 |
| 381213200 | 20 x 2 x 1.3 | 25.60 | 585 | 950 | 500/1000 |
| 381213240 | 24 x 2 x 1.3 | 28.70 | 700 | 1050 | 500/1000 |
| 381215020 | 2 x 2 x 1.5 | 11.80 | 70 | 165 | 500/1000 |
| 381215040 | 4 x 2 x 1.5 | 14.10 | 135 | 255 | 500/1000 |
| 381215060 | 6 x 2 x 1.5 | 16.90 | 200 | 335 | 500/1000 |
| 381215080 | 8 x 2 x 1.5 | 18.40 | 265 | 430 | 500/1000 |
| 381215100 | 10 x 2 x 1.5 | 22.00 | 331 | 525 | 500/1000 |
| 381215120 | 12 x 2 x 1.5 | 22.80 | 396 | 620 | 500/1000 |
| 381215160 | 16 x 2 x 1.5 | 25.60 | 526 | 825 | 500/1000 |
| 381215200 | 20 x 2 x 1.5 | 28.70 | 657 | 1050 | 500/1000 |
| 381215240 | 24 x 2 x 1.5 | 32.10 | 787 | 1230 | 500/1000 |
