Cable Application
Popular applications include avionic control systems, computers, data processing and military vehicles, and signalling. Defence standard cable, although originally for defence/military use, is now widely used in industry as it is compact, has a range of sizes for most applications and a high working voltage. As well as PVC, CSE can also supply an LSHF version. The most common defence standard cables are:
7-2-*A Unscreened black PVC (24AWG)
- 7/0.20 mm
- PVC insulation
- PVC sheath, black
- 440V sub-miniature
- To defence standard 61-12 Pt 4
- Operating temperature: 70°C
Available in the following core configurations: 2, 3, 4, 6, 8, 10, 12, 15, 18, 25, 36. Also available with LSZH sheath.

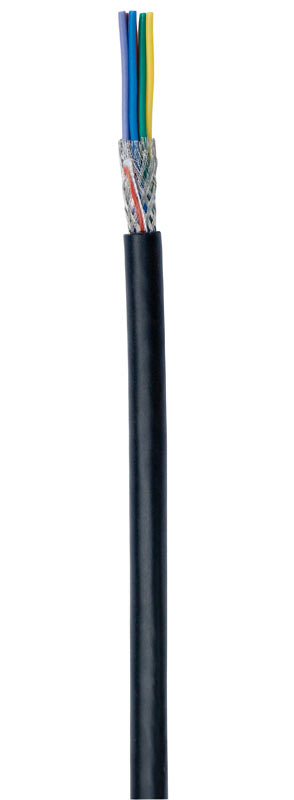

7-2-*C Brain screened black PVC (24AWG)
- 7/0.2mm
- PVC insulated
- TCWB screen
- PVC sheathed
- 440V sub-miniature
- To defence standard 61-12 Pt 4.
Available in the following core configurations: 2, 3, 4, 6, 8, 10, 12, 15, 18, 25, 36. Also available with LSZH sheath.
7-2-*S Foil screened black PVC (24AWG)
- 7/0.2mm TCW
- PVC insulated
- Alu foil screen
- PVC sheathed
- 440V sub-miniature.
Available in the following core configurations: 2, 3, 4, 6, 8, 10, 12, 15, 18, 25 and 36.
16-2-*A Unscreened black PVC (22AWG)
- 16/0.2mm
- PVC insulated
- PVC sheathed
- 440V cores
- To defence standard 61-12 Pt 5.
Available in the following core configurations: 2, 3, 4, 6, 12, 18 and 25. Also available with LSHF outer sheath.
16-2-*C Braid screened black PVC (22AWG)
- 16/0.2mm
- PVC insulated
- TCWB screen
- PVC sheathed
- 440V cores
- To defence standard 61-12 Pt 5.
Available in the following core configurations: 2, 3, 4, 6, 10, 12, 15, 25, 36. Also available with LSHF sheath. Colour Chart for Def 61-12 Cables
| Core | Base colour | Stripe |
| 1 | Red | |
| 2 | Blue | |
| 3 | Green | |
| 4 | Yellow | |
| 5 | White | |
| 6 | Black | |
| 7 | Brown | |
| 8 | Violet | |
| 9 | Orange | |
| 10 | Pink | |
| 11 | Turquoise | |
| 12 | Grey | |
| 13 | Red | Blue |
| 14 | Green | Red |
| 15 | Yellow | Red |
| 16 | White | Red |
| 17 | Red | Black |
| 18 | Red | Brown |
| 19 | Yellow | Blue |
| 20 | White | Blue |
| 21 | Blue | Black |
| 22 | Orange | Blue |
| 23 | Green | Blue |
| 24 | Grey | Blue |
| 25 | Yellow | Green |
| 26 | White | Green |
| 27 | Green | Black |
| 28 | Orange | Green |
| 29 | Grey | Green |
| 30 | Yellow | Brown |
| 31 | White | Brown |
| 32 | Brown | Black |
| 33 | Grey | Brown |
| 34 | Yellow | Violet |
| 35 | Violet | Black |
| 36 | White | Violet |
